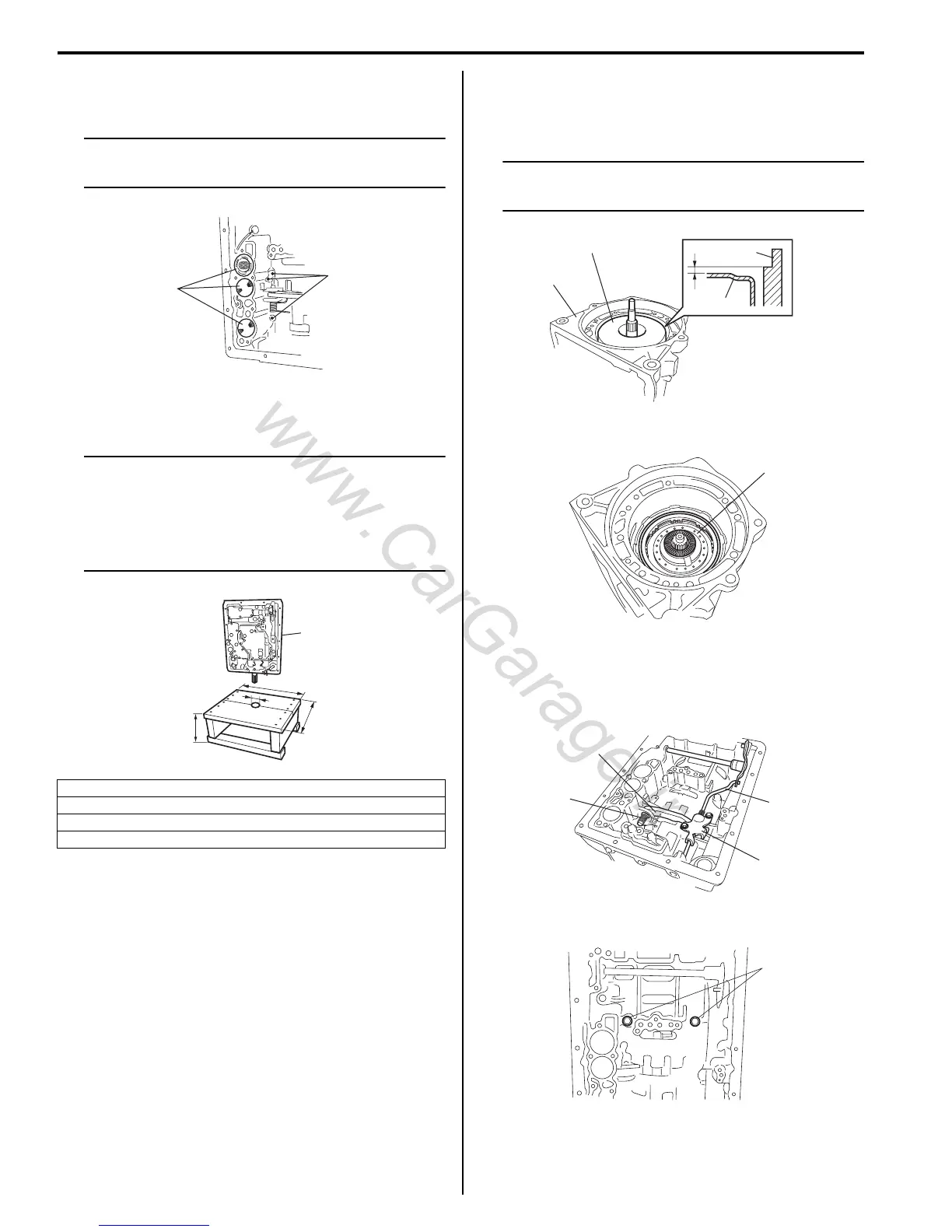

5A-100 Automatic Transmission/Transaxle:
18) Remove accumulator pistons (1) by blowing air into
holes (2) as shown in the figure.
NOTE
Hold accumulator piston (1) with shop cloth
while blowing.
19) Place transmission (1) upright as shown in the
figure.
NOTE
• To prevent transmission case from getting
damaged, protect its contacting surface
with stand by using shop cloth or the like.
• A stand of such size as shown in the figure
will facilitate work.
20) Check top surface level of forward clutch (2) against
case (1) for reassembly.
21) Remove forward clutch.
NOTE
Confirm direction of bearing and bearing
race for reassembly.
22) Remove direct clutch (1).
23) Remove pawl bracket (1), and then parking lock rod
(2) from manual shift lever.
24) Remove pawl spring (3), pawl pin and parking rock
pawl (4).
25) Remove 2 bolts (1) from valve body side.
A: 50 mm (1.9 in.)
B: 350 mm (13.8 in.)
C: 400 mm (15.7 in.)
D: 200 mm (7.9 in.)
1
2
I5JB0A510078-02
1
C
A
D
B
I5JB0A510079-01
2
2
1
1
I5JB0A510080-01
1
I5JB0A510081-01
4
3
2
1
I5JB0A510082-01
1
I5JB0A510083-01
