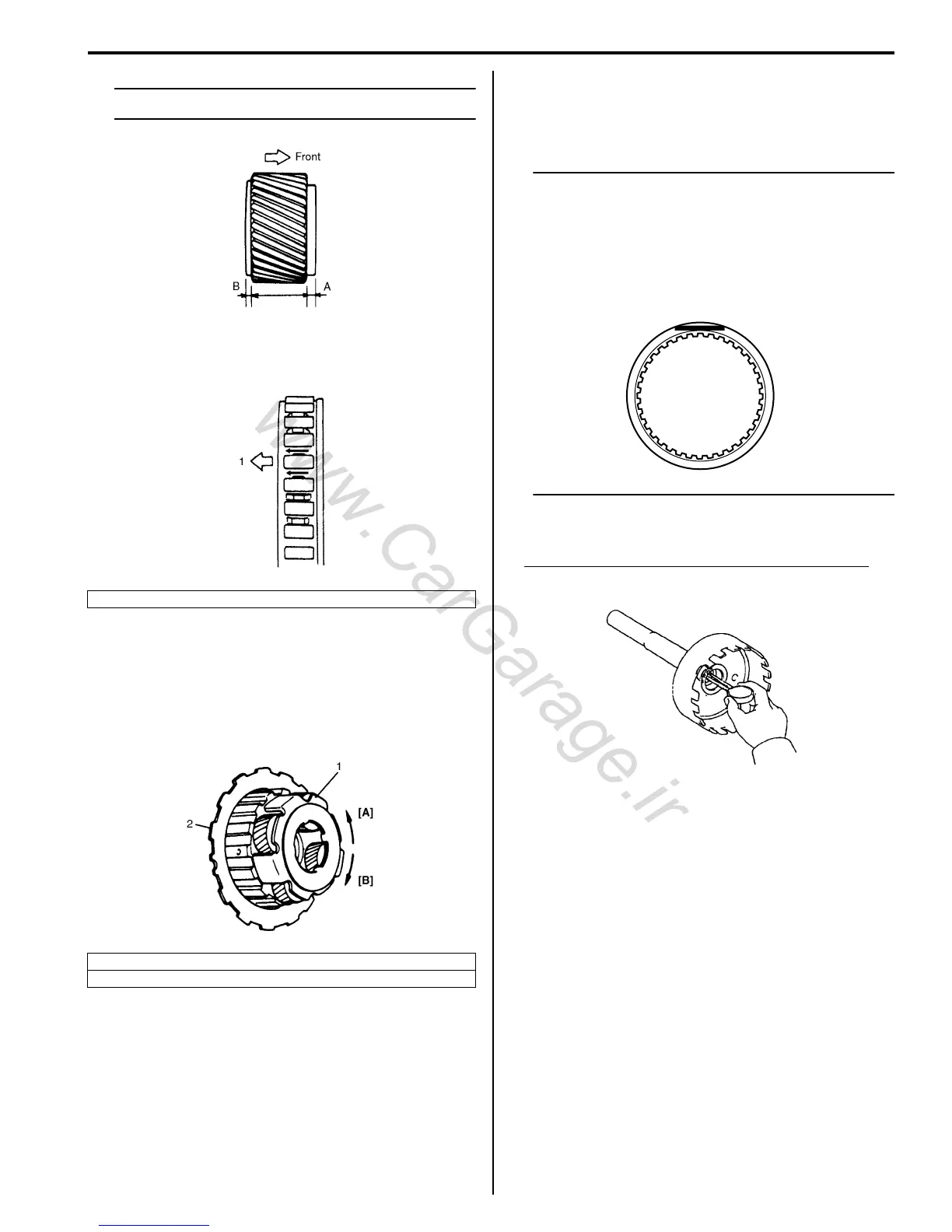

Automatic Transmission/Transaxle: 5A-125
NOTE
A is longer than B.
• Fit retaining rings into groove securely.
• Install one-way clutch as shown in the figure.
• Install reverse brake reaction plate (2) to front
planetary gear (1).
With reverse brake reaction plate (2) fixed stationary,
turn front planetary gear (1) clockwise to check that it
locks and then counterclockwise to check that it turns
smoothly.
Planetary Gears and Output Shaft Inspection
S5JB0A5106090
• Check that sliding surface of discs and plate are not
worn or burnt. if necessary, replace them.
NOTE
• If disc lining is exfoliated, discolored or
worn hardly, replace all discs.
• If only a part of printed numbers is
corroded, replace all discs.
• Before assembling new discs, soak them
in A/T fluid for at least 15 minutes.
• Measure inside diameter of output shaft bushing. If
inside diameter exceeds limit, replace output shaft.
Output shaft bushing inside diameter standard
18.001 – 18.026 mm (0.7087 – 0.7097 in.)
1. Front planetary gear side
[A]: Rotates
[B]: Locks
I5JB0A510155-01
IYSQ01510193-01
IYSQ01510194-01
I4JA01512210-01
I5JB0A510126-01
