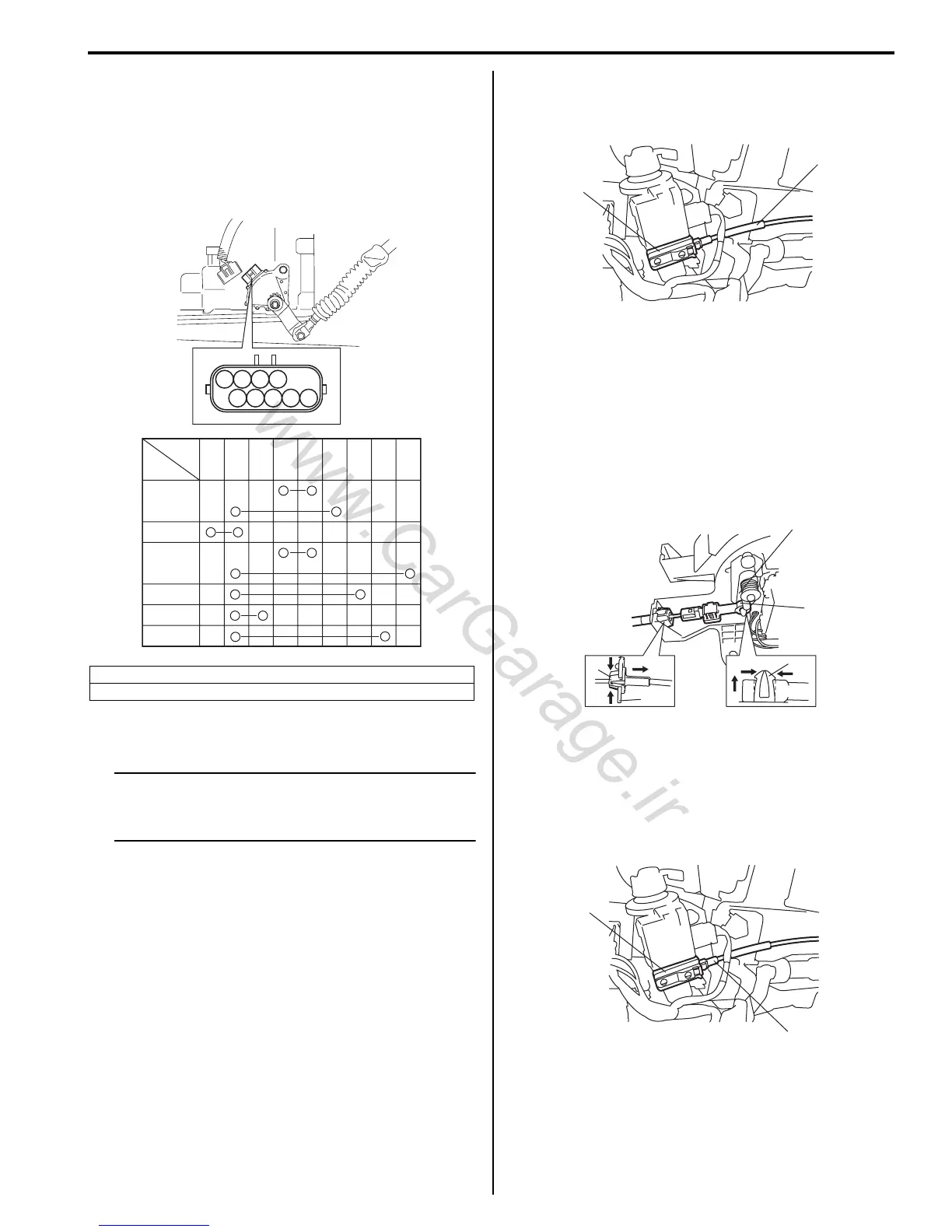

Automatic Transmission/Transaxle: 5A-85
3) Check that engine starts in “N” and “P” ranges but it
doesn’t start in “D”, “3”, “2”, “L” or “R” range. Also,
check that back-up lamp lights in “R” range.
If faulty condition cannot be corrected by adjustment,
disconnect transmission range sensor connector
and check that continuity exists as shown by moving
select lever.
Key Interlock Cable Removal and Installation
S5JB0A5106051
NOTE
Do not bend interlock cable excessively
when removing and installing it, or system
will not operate correctly.
Removal
1) Disconnect negative (–) cable from battery.
2) If equipped with air bag system, disable air bag
system. Refer to “Disabling Air Bag System: in
Section 8B”.
3) Remove steering column hole cover.
4) Tilt steering column if steering column is adjustable.
If no adjustable, loosen steering column bolts.
5) Remove steering column cover.
6) Turn ignition switch to ACC position.
7) Pull out key interlock cable (1) from key cylinder
cover (2) while pressing checkhook with slotted
screwdriver or the like.
8) Turn ignition switch to LOCK position.
9) Remove front console box.
10) Detach cable end (1) from interlock cam (2) while
pressing claws (3) of interlock cam boss.
At this time, be careful not to cause damage to its
claws.
Detach cable casing cap (4) from selector bracket
(5) while pressing checkhook.
11) Remove interlock cable.
Installation
1) Lay interlock cable to its original cabling route.
2) Turn ignition switch to “ACC” position.
3) Insert cable casing cap (1) into key cylinder cover (2)
securely.
[A]: Sensor position
[B]: Terminal No.
1
2
3
4
5
6
7
8
9
P
R
N
D
and 3
2
L
1
2
3
4
5
6
7
8
9
[B]
[A]
I5JB0A510041-02
2
1
I5JB0A510062-01
4
5
3
2
1
I5JB0A510063-01
2
1
I5JB0A510064-01
