5A-124 Automatic Transmission/Transaxle:
Planetary Gears and Output Shaft Disassembly
and Assembly
S5JB0A5106086
Disassembly

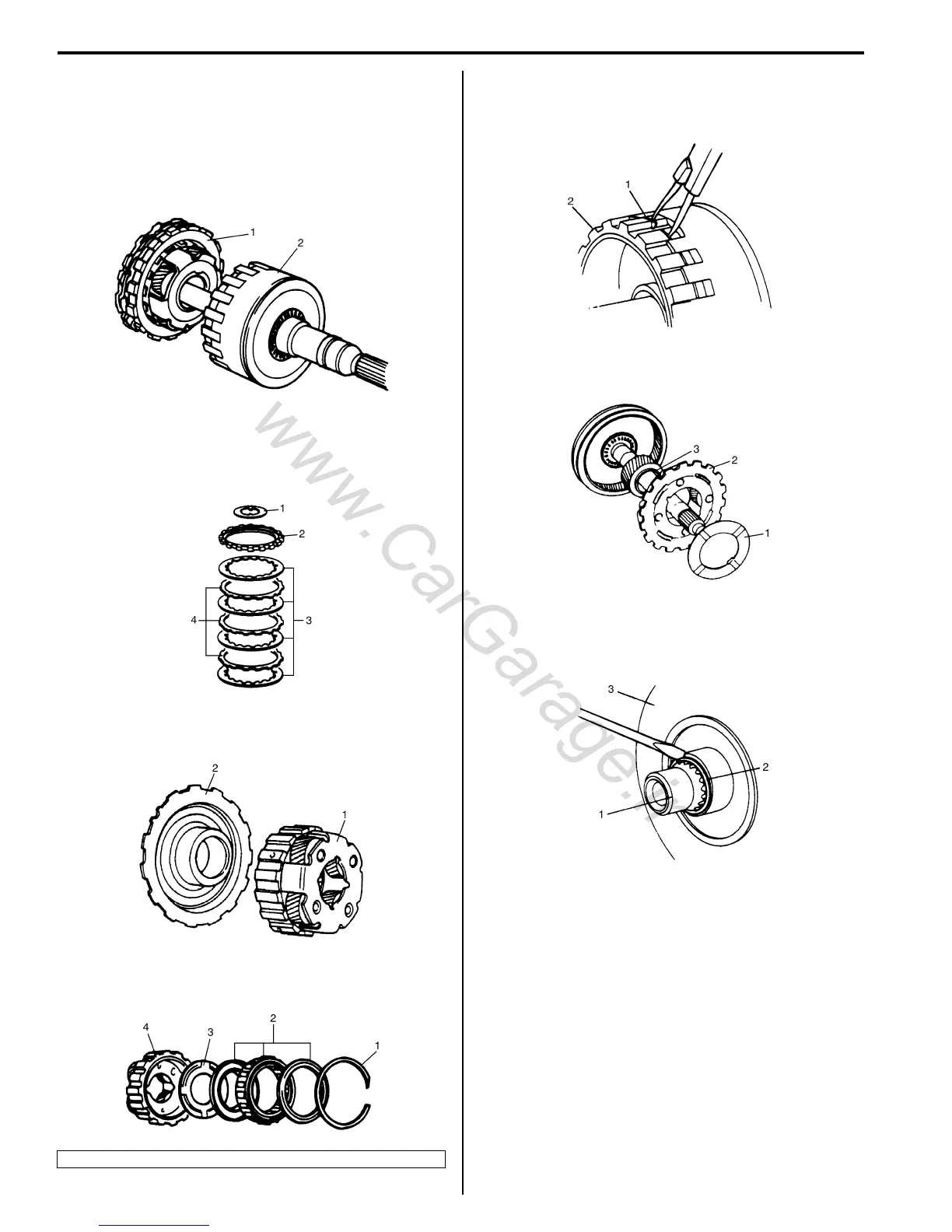

1) Remove front planetary gear assembly (1) from
output shaft assembly (2).
2) Remove rear planetary thrust washer (1), reverse
brake backing plate (2), reverse brake disc (3) and
reverse brake plate (4) from front planetary gear
assembly.
3) Remove reverse brake reaction plate (2) from front
planetary gear (1).
4) After removing retaining ring (1), remove one-way
clutch (2) and one-way clutch rear thrust washer (3).
5) After removing retaining ring (1), remove front
planetary ring gear (2), thrust bearing and bearing
race.
6) Remove thrust washer (1), rear planetary gear (2)
and rear planetary sun gear (3).
7) After removing retaining ring (2) from inner shaft (1),
remove rear planetary ring gear (3) and thrust
bearing assembly.
Assembly
Assemble components by reversing disassembly
procedure and noting the following points.
• Refer to “Planetary Gears and Output Shaft
Components: ” when installing each component.
• Check seal ring for damage before installation and
replace if damaged.
• Install planetary sun gear as shown in the figure.
4. Front planetary gear
IYSQ01510185-01
IYSQ01510186-01
IYSQ01510187-01
IYSQ01510188-01
IYSQ01510189-01
IYSQ01510190-01
IYSQ01510191-01
