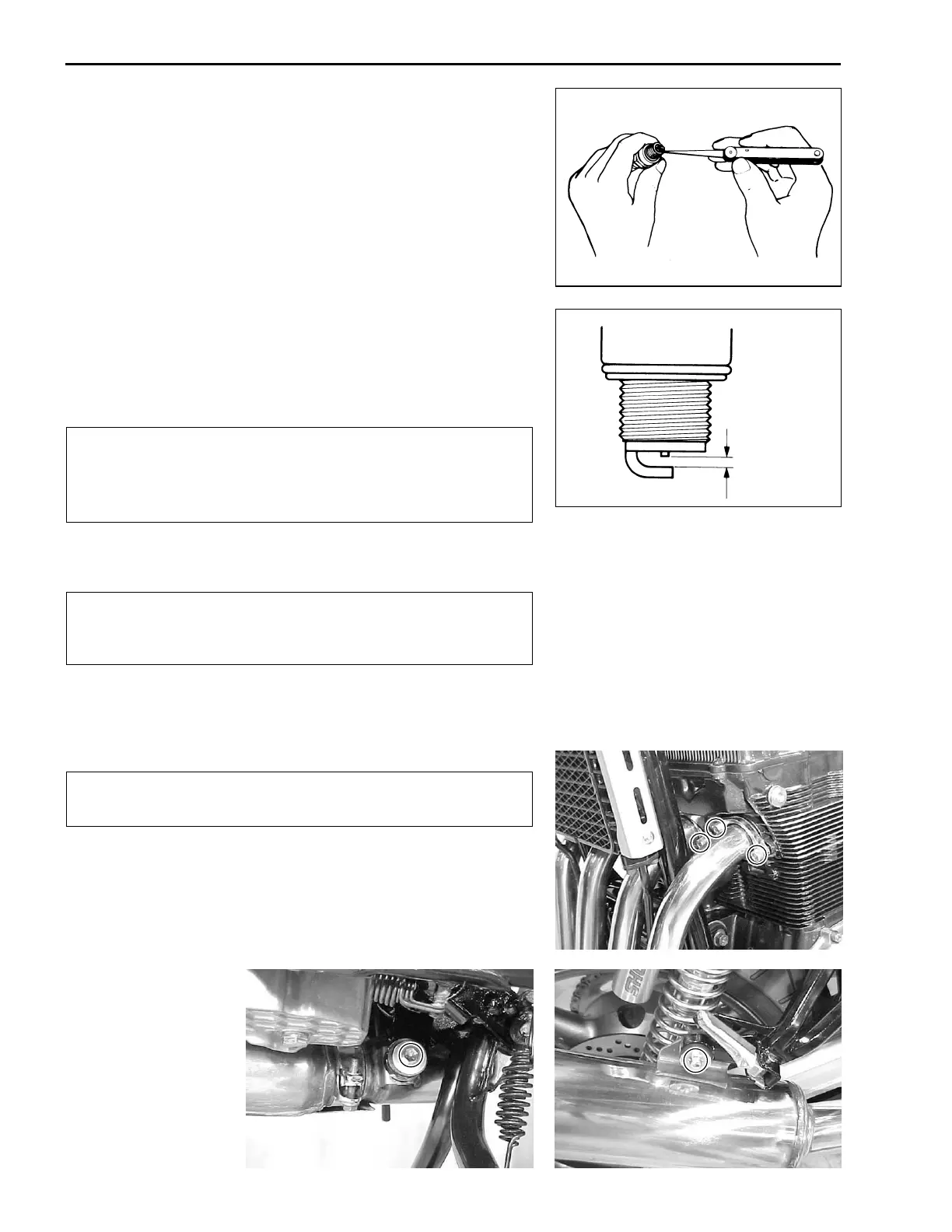

2-6 PERIODIC MAINTENANCE
CARBON DEPOSIT
Check to see the carbon deposit on the plug.
If the carbon is deposited, remove it with a spark plug cleaner
machine or carefully using a tool with a pointed end.
SPARK PLUG GAP
Measure the plug gap with a thickness gauge if it is correct.
If not, adjust it to the following gap.
%%
%%
% Spark plug gap: 0.6 – 0.7 mm
&&
&&
& 09900-20803: Thickness gauge
ELECTRODE’S CONDITION
Check to see the worn or burnt condition of the electrodes. If it is
extremely worn or burnt, replace the plug. And also replace the
plug if it has a broken insulator, damaged thread, etc.
)
Confirm the thread size and reach when replacing the
plug. If the reach is too short, carbon will be deposited
on the screw portion of the plug hole and engine damage
may result.
0.6 – 0.7 mm
EXHAUST PIPE BOLT AND MUFFLER BOLT
Tighten Initially at 1 000 km (1 month) and Every 12 000
km (12 months).
• Tighten the exhaust pipe clamp bolts and muffler mounting bolts
to the specified torque.
((
((
( Exhaust pipe bolt: 23 N
.
m (2.3 kgf-m)
Muffler mounting bolt: 29 N
.
m (2.9 kgf-m)
INSTALLATION
)
Before using a spark plug wrench, carefully turn the spark
plug by finger into the thread of the cylinder head to pre-
vent damage the alminum threads.
((
((
( Spark plug: 12 N
.
m (1.2 kgf-m)
