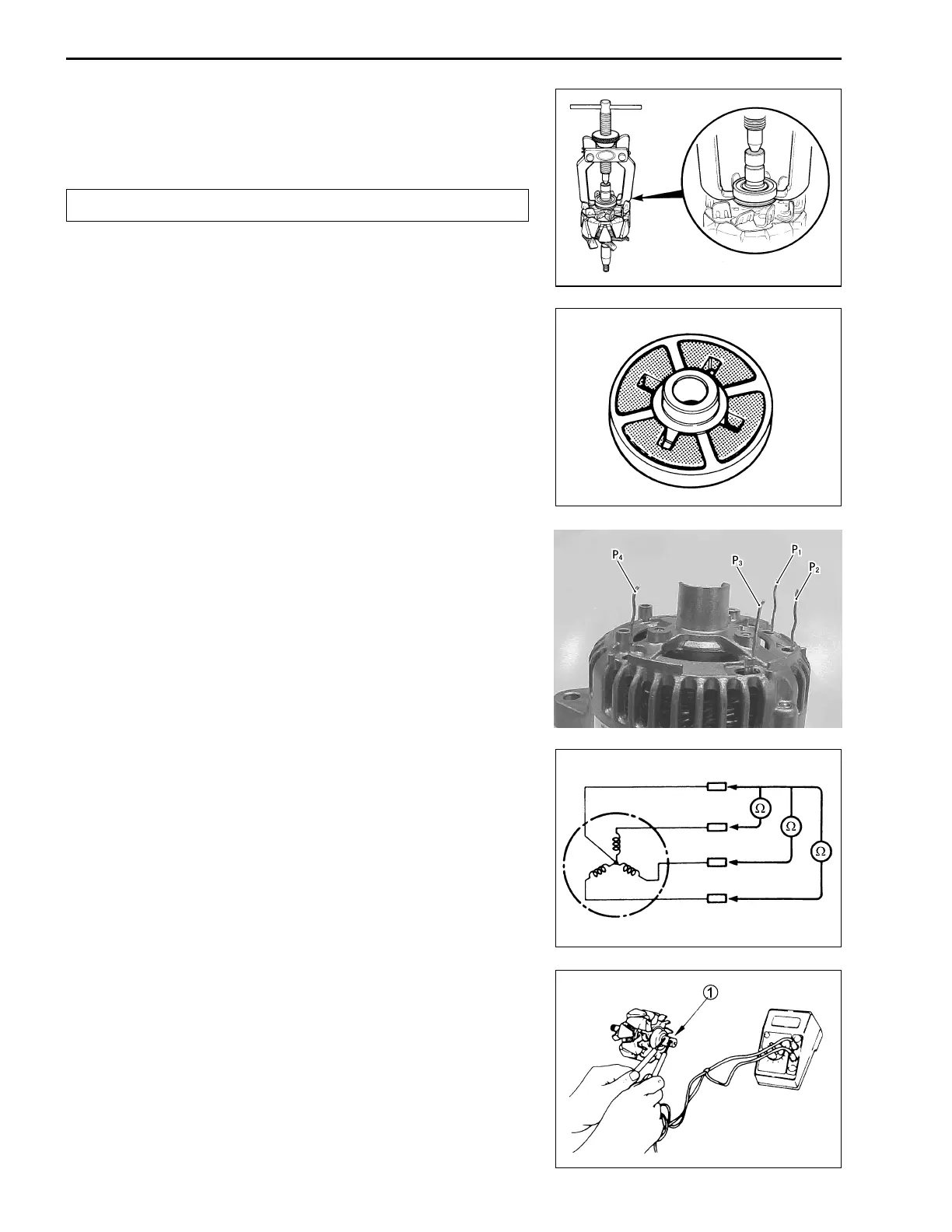

6-12 ELECTRICAL SYSTEM
If there is anything unusual, remove the bearings using a bearing
remover.
##
##
# 09913-60910: Bearing remover
"
The removed bearing should be replaced with a new one.
GENERATOR DRIVEN GEAR DAMPERS
Inspect the generator driven gear dampers for wear and damage.
If any defects are found, replace the generator driven gear damp-
ers as a set.
NOTE:
When installing the generator driven gear dampers, apply SUZUKI
MOLY PASTE to the damper surface.
((
((
( 99000-25140: SUZUKI MOLY PASTE
STATER COIL CONTINUITY CHECK
Measure the continuity between the lead wires of the stator coil
using a tester.
If there is no continuity, replace the stator.
Also, check that the stator is properly insulated.
##
##
# 09900-25008: Multi circuit tester set
))
))
) Tester knob indication: Continuity test (
**
**
*)
ROTOR COIL CONTINUITY CHECK
Measure the continuity between the two slip rings 1 on the rotor
coil using a tester.
If there is no continuity, replace the rotor.
Also, check that the rotor is properly insulated.
##
##
# 09900-25008: Multi circuit tester set
))
))
) Tester knob indication: Continuity test (
**
**
*)
P1
P2
P3
P4
