3-32 ENGINE

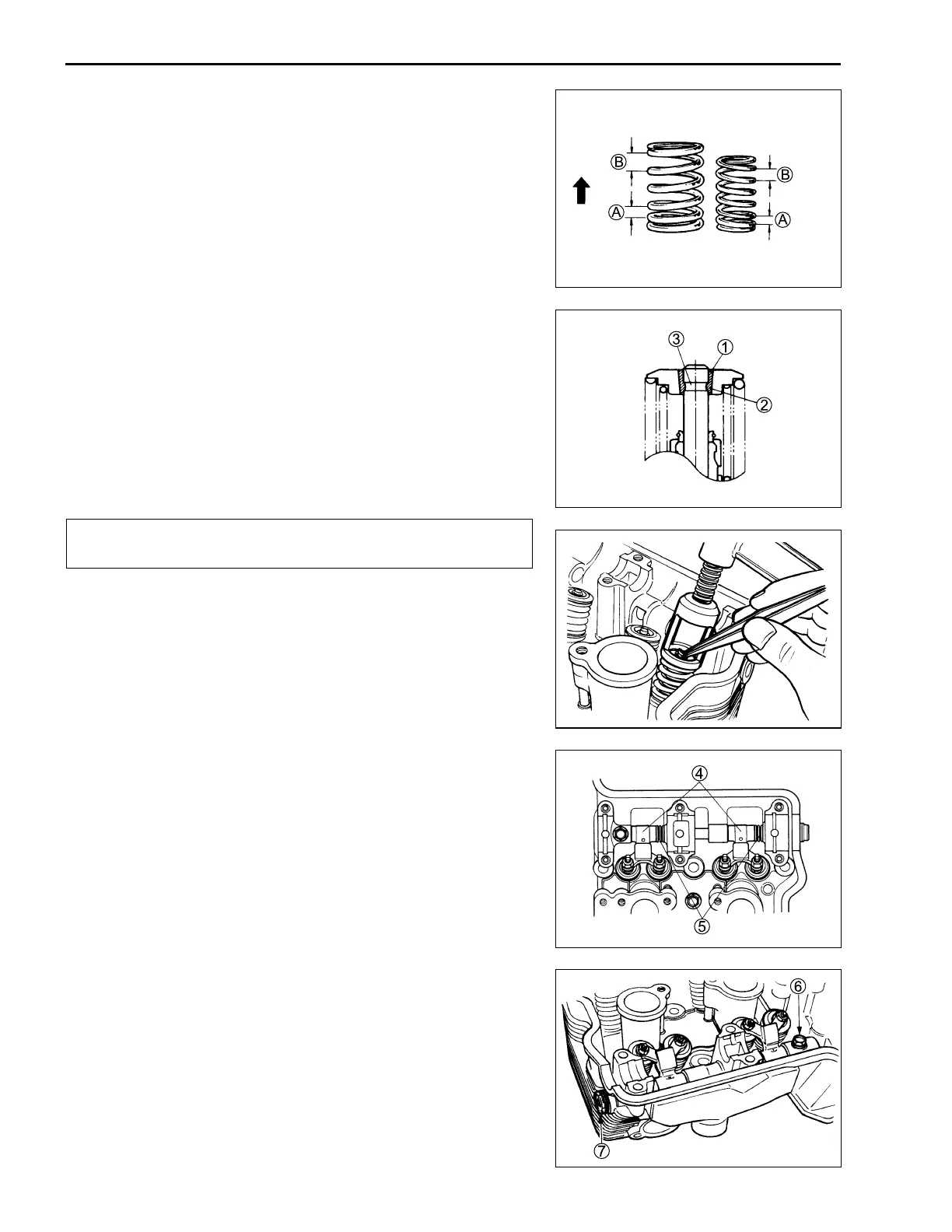

• Apply engine oil to the rocker arm shaft sufficiently.
• Install the rocker arms 4, the springs 5 and the rocker arm
shaft.
• Install the valve springs with the small-pitch portion A facing
cylinder head. B Large-pitch portion.
• Tighten the rocker arm shaft set bolt 6 and the cylinder head
plug 7 to the specified torque.
""
""
" Rocker arm shaft set bolt
66
66
6: 9 N
.
m (0.9 kgf-m)
Cylinder head plug
77
77
7: 28 N
.
m (2.8 kgf-m)
• Put on the valve spring retainer, and using the valve lifter, press
down the springs, fit the cotter halves to the stem end, and re-
lease the lifter to allow the cotter 1 to wedge in between re-
tainer and stem. Be sure that the rounded lip 2 of the cotter fits
snugly into the groove 3 in the stem end.
!!
!!
! 09916-14510: Valve lifter
09916-14910: Valve lifter attachment
09916-84511: Tweezers
#
Be sure to locate each spring and valve to their original
positions.

Suzuki GSX1200 1999 Specifications

General

Displacement	1157 cc
Bore x Stroke	79.0 mm x 59.0 mm
Compression Ratio	9.5:1
Ignition	Electronic ignition (Transistorized)
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Dual hydraulic disc
Rear Brakes	Single hydraulic disc
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Starting	Electric
Engine Type	4-stroke, 4-cylinder, DOHC
Fuel System	Mikuni BSR36SS carburetors
Transmission	5-speed
Rear Suspension	Link-type, coil spring, oil damped
Ground Clearance	135 mm
Seat Height	790 mm
