ABS: 4E-10

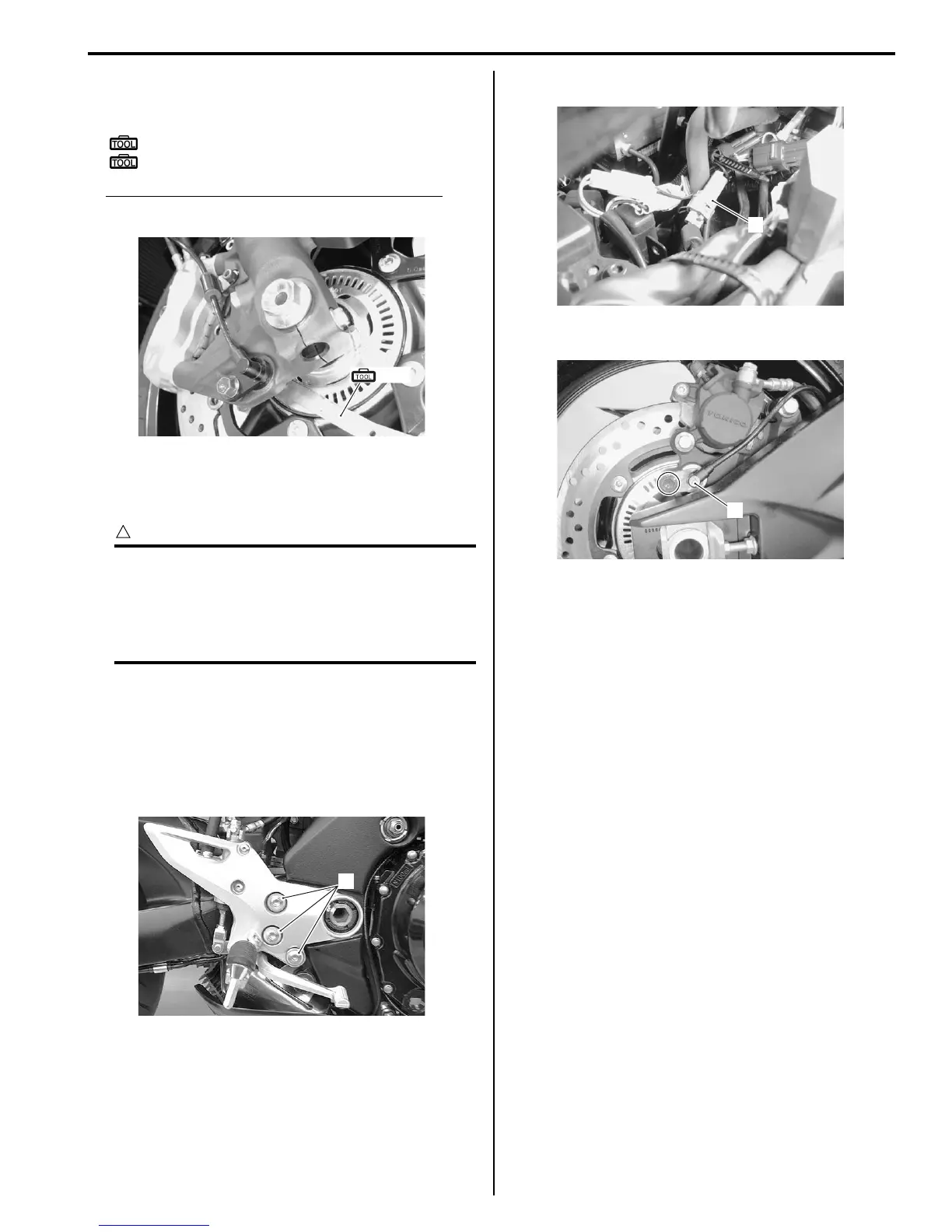

• Check the clearance between the front wheel speed
sensor and sensor rotor using the thickness gauge.
Special tool
(A): 09900–20803 (Thickness gauge)
(B): 09900–20806 (Thickness gauge)
Wheel speed sensor – Sensor rotor clearance
0.3 – 1.5 mm (0.012 – 0.059 in)
Rear Wheel Speed Sensor Removal and
Installation (GSX1300BKAK8)
B823H34506005
CAUTION
!
• The ABS is made up of many precision
parts; never subject it to strong impacts or
allow it to become dirty or dusty.
• The wheel speed sensor cannot be
disassembled.
Removal
1) Turn the ignition switch OFF.
2) Lift and support the fuel tank with the prop stay.
Refer to “Fuel Tank Removal and Installation in
Section 1G in related manual”.
3) Remove the front footrest bracket mounting bolts (1).
4) Disconnect the rear wheel speed sensor coupler (2).
5) Remove the rear wheel speed sensor (3).
6) Remove the rear wheel speed sensor lead wire as
shown in the rear wheel speed sensor routing
diagram. Refer to “Rear Wheel Speed Sensor
Routing Diagram (GSX1300BKAK8) in Section 4A
(Page 4A-5)”.
Installation
Install the rear wheel speed sensor in the reverse order
of removal. Pay attention to the following points:
• Install the rear wheel speed sensor lead wire as
shown in the rear wheel speed sensor routing
diagram. Refer to “Rear Wheel Speed Sensor Routing
Diagram (GSX1300BKAK8) in Section 4A (Page 4A-
5)”.
(A),(B)
I823H3450014-01
1
I823H3410002-01
2
I823H3450060-02
3
I823H3450061-02
