4E-33 ABS:
NOTE
• In normal cases, the front brake lever feels a reaction force and the front wheel turns
discontinuously. At the same time, the ABS HU operating sound will be heard.
• The ABS HU motor operates for 6 seconds and then stops automatically.
NOTE
• Inspect the rear brake in the same manner of front brake.
• If the ABS does not function, the cause may lie in the ABS control unit/HU.
• In checking the rear brake at the time of pressure reduction drive (4/7), “brake lever” appears on the
screen. This is because the present screen shares with other model having front brake only.
Therefore, in the case of rear brake pedal equipped vehicle, ignore this instruction and operate the
rear brake pedal.
7) Close the SDS tool and turn the ignition switch OFF.
8) Disconnect the SDS tool and install the right frame cover.

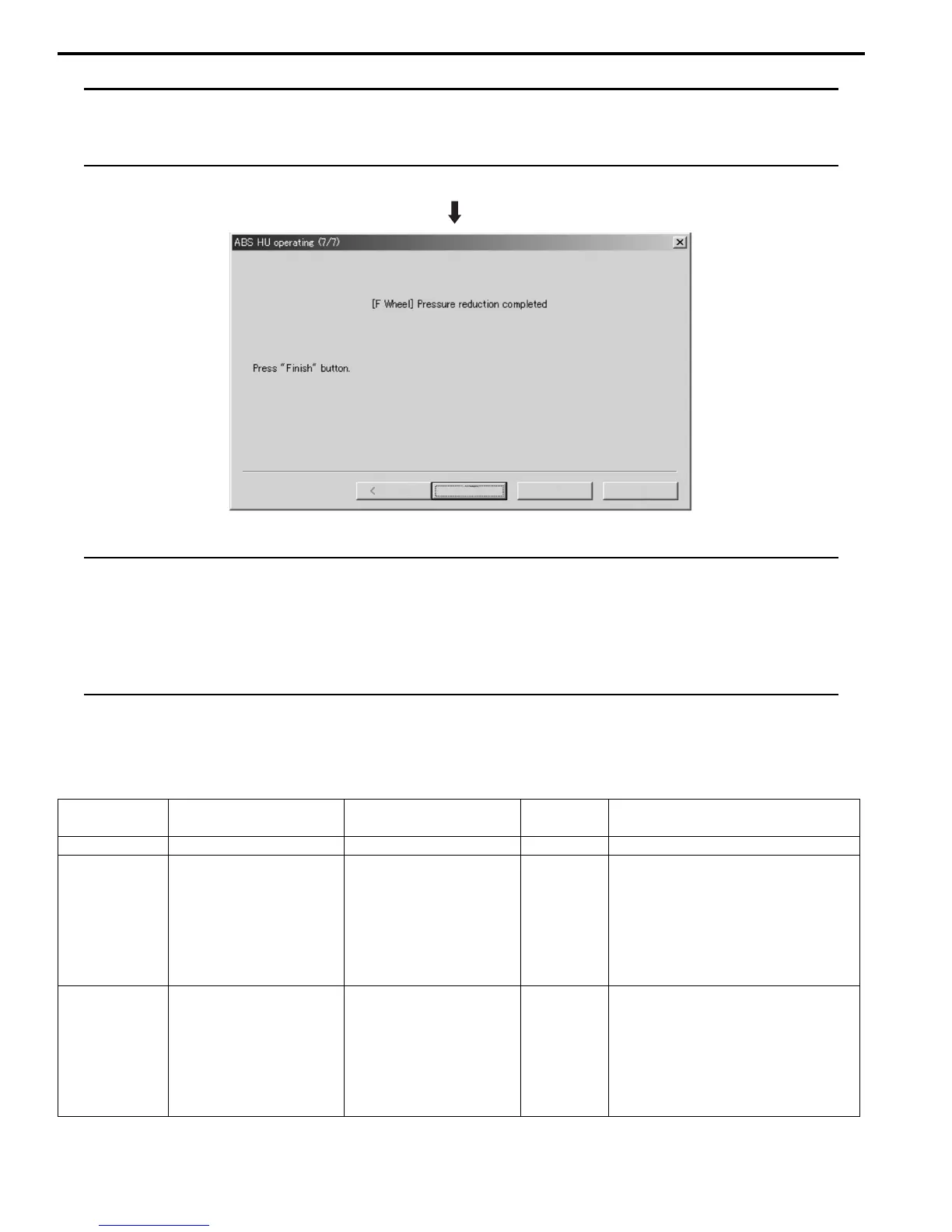

DTC Table (GSX1300BKAK8)
B823H34504002
Return Finish Cancel Help
I718H1450062-01
DTC DTC parameter Possible cause
Indicator
status
Reference
None Normal — ON *
1
—
25 (C1625)
Wheel speed sensor
related malfunction
Incorrect tire size, poor
tire pressure, deformed
wheel, wheel spinning,
incorrect tooth count,
interference at one or
more wheels, permanent
bad signal, etc.
ON
Refer to “DTC “25” (C1625): Wheel
Speed Sensor Related Malfunction
(GSX1300BKAK8) (Page 4E-35)”.
35 (C1635) ABS motor malfunction
Motor relay circuit open
or short, broken fuse for
motor relay, pump motor
circuit open or short,
faulty motor relay, faulty
ABS motor, faulty ABS
control unit, etc.
ON
Refer to “DTC “35” (C1635): ABS
Motor Malfunction
(GSX1300BKAK8) (Page 4E-38)”.
