ABS: 4E-58
DTC “61” (C1661): ABS Solenoid Malfunction (GSX1300BKAK8)
B823H34504018
Troubleshooting
NOTE
After repairing the trouble, clear the DTC using SDS tool. Refer to “DTC (Diagnostic Trouble Code)
Deleting (GSX1300BKAK8) (Page 4E-25)”.
Possible Cause
Valve relay circuit open or short, broken fuse for valve relay, faulty valve relay, interruption of
valve, failure output from ABS control unit, etc.

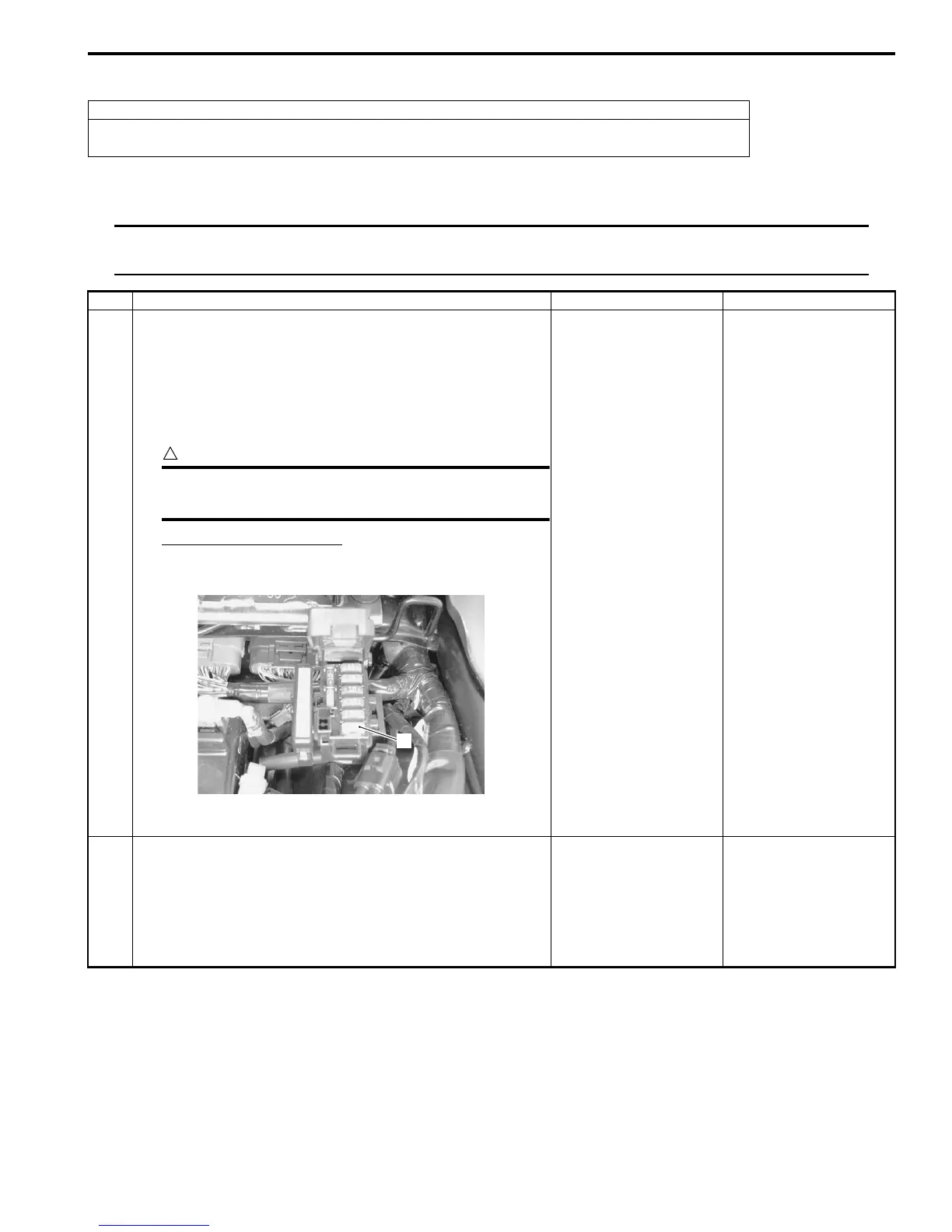

Step Action Yes No
1 1) Turn the ignition switch OFF.
2) Lift and support the fuel tank with the prop stay. Refer to
“Fuel Tank Removal and Installation in Section 1G in
related manual”.
3) Open the fuse box and inspect the ABS solenoid valve
fuse (1).
CAUTION
!
If a fuse is blown, find the cause of the problem
and correct it before replacing the fuse.
ABS solenoid valve fuse
25 A
Is the ABS solenoid valve fuse OK?
Go to Step 2. Replace the ABS
solenoid valve fuse.
2 1) Check the ABS control unit coupler for loose or poor
contacts.
If OK, then disconnect the ABS control unit coupler.
Refer to “ABS Control Unit Coupler Disconnect and
Connect (GSX1300BKAK8) (Page 4E-9)”.
Replace the ABS
control unit/HU. Refer to
“ABS Control Unit/HU
Removal and
Installation
(GSX1300BKAK8)
(Page 4E-13)”.
Inspect the wire
harness. (Faulty
solenoid or ground wire)
1
I823H3450071-01
To Next Page
