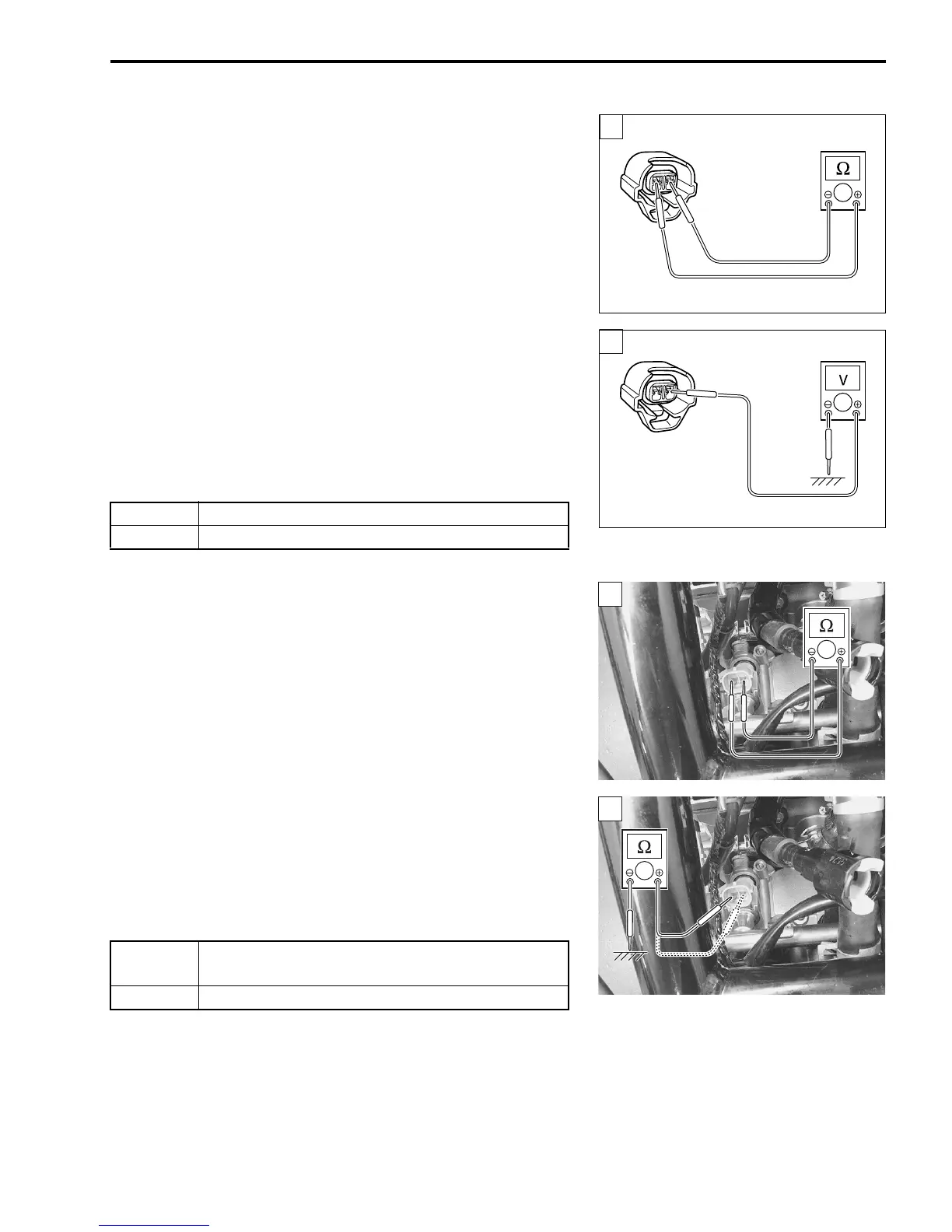

FI SYSTEM DIAGNOSIS 4-59
– Between Bl/Y (#1) or Bl/G (#2) wire terminal and other ter-
minal at injector coupler: infinity
• Voltage
 09900-25008: Multi circuit tester set
 Tester knob indication: Voltage ()
– Between Bl/Y (#1) or Bl/G (#2) and ground wire: approx. 0
V (When ignition switch is ON)
Is check result OK?
Step 3
Injector check
1) Turn the ignition switch OFF.
2) Measure the injector resistance between terminals.
 09900-25008: Multi circuit tester set
 Tester knob indication: Resistance ()
 Injector resistance: 11.5 – 12.5  at 20 °C (68 °F)
(Terminal – Terminal)
3) If OK, check the continuity between each terminal and
ground.
 09900-25008: Multi circuit tester set
 Injector continuity:   (Infinity)
Is check result OK?
2
YES Go to Step 3.
NO Repair or replace the defective wire harness.
2
3
YES
Replace the ECM with a known good one, and
inspect it again.
NO Replace the injector with a new one. (5-18)
3

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
