8-24 CHASSIS
REMOVAL

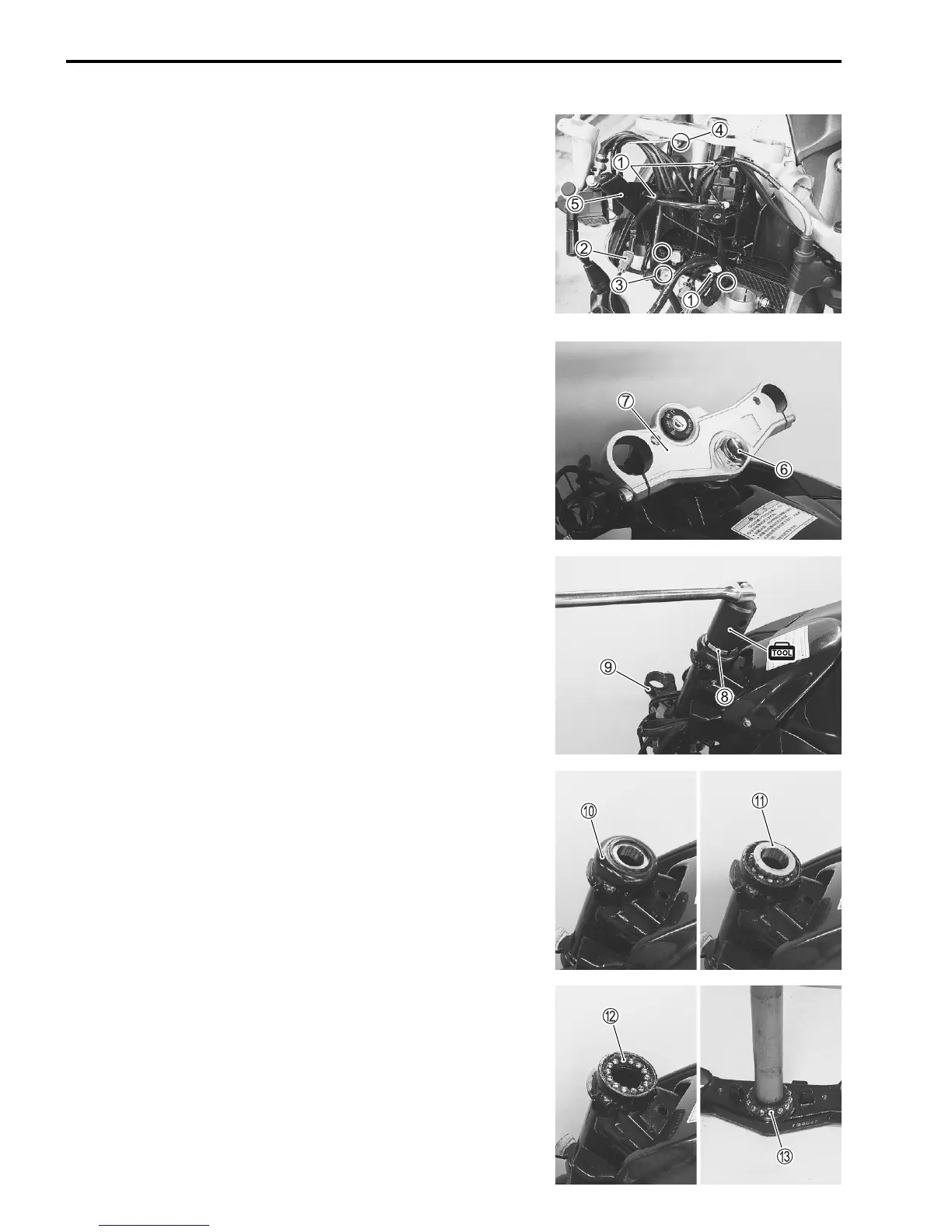

• Remove the combination meter and headlight assembly.
(9-27 and 9-36)
• Remove the front wheel. (8-8)
• Remove the front forks. (8-16)
• Remove the clamps 1.
• Disconnect the ignition switch coupler 2.
• Remove the brake hose clamp bolt 3 and cable guide bolt 4.
• Remove the front licence plate (only for P-12)
• Remove the headlight bracket 5.
• Remove the steering stem head nut 6 and washer.
• Remove the steering stem upper bracket 7.
• Remove the steering stem nut 8 using the special tool.
 09940-14911: Steering stem nut socket wrench
• Draw out the steering stem lower bracket 9.
NOTE:
Hold the steering stem lower bracket by hand to prevent it from
falling.
• Remove the dust seal 0 and upper bearing inner race A.
• Remove the steering stem upper bearing B and lower bear-
ing C.

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
