Suzuki GW250 User Manual

SERVICING INFORMATION 10-21

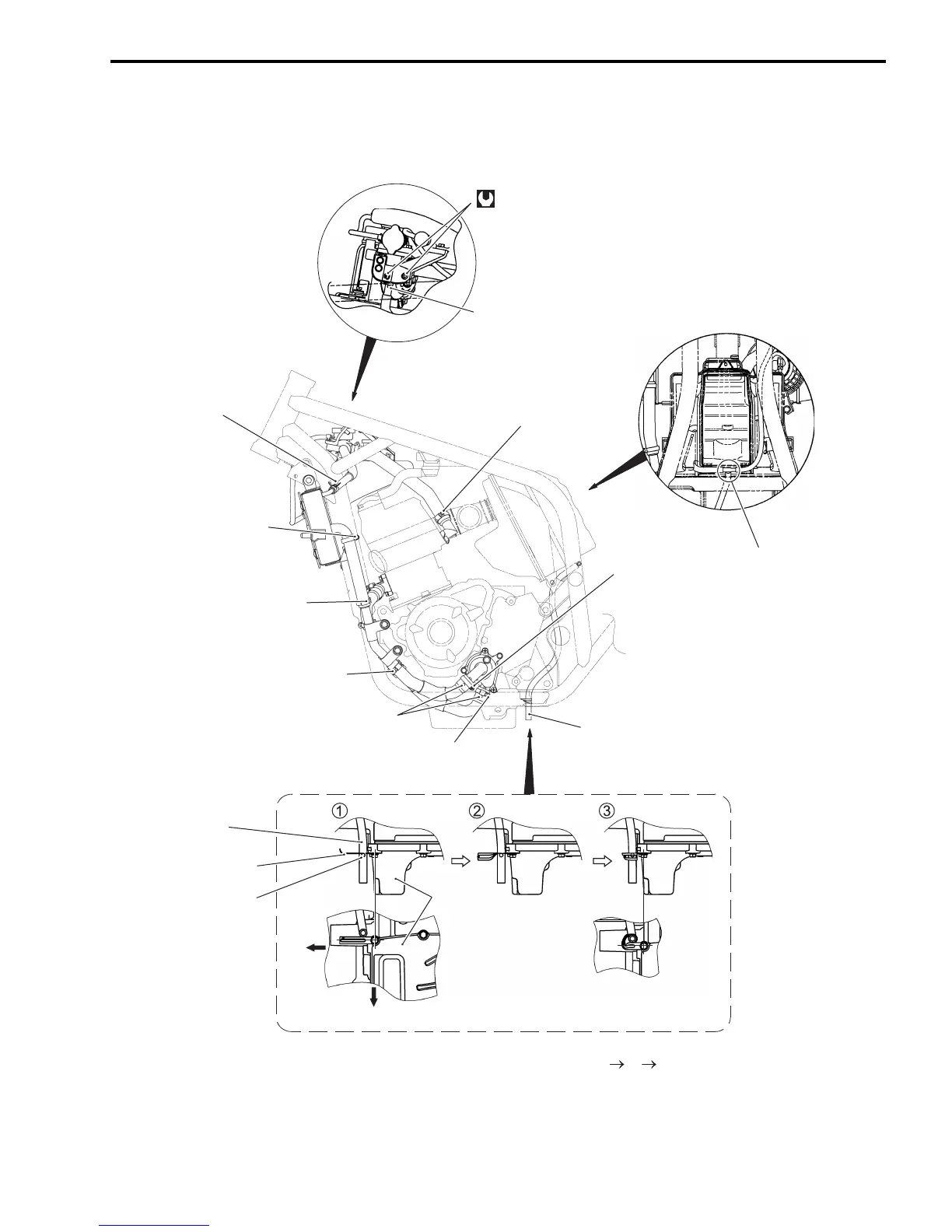

Connect the 3 way
joint under the
air cleaner box.
10 N·m
(1.0 kgf-m, 7.0 lbf-ft)
Yellow mark
The clamp screw
head should face
left diagonal
backward.
White mark
The clamp
screw head
should face
backward.
The clamp screw head
should face backward.
The clamp screw head
should face forward.
Yellow mark
Fuel tank
water drain hose
Left
side
Front side
Fuel tank
water drain hose
Clamp
White mark
Oil pan
When clamping the fuel tank water drain hose,
clamp the fuel tank water drain hose in this order (1
2 3).
The clamp screw
head should face
left side.
The clamp screw
head should face
left side.

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
