ENGINE 3-33

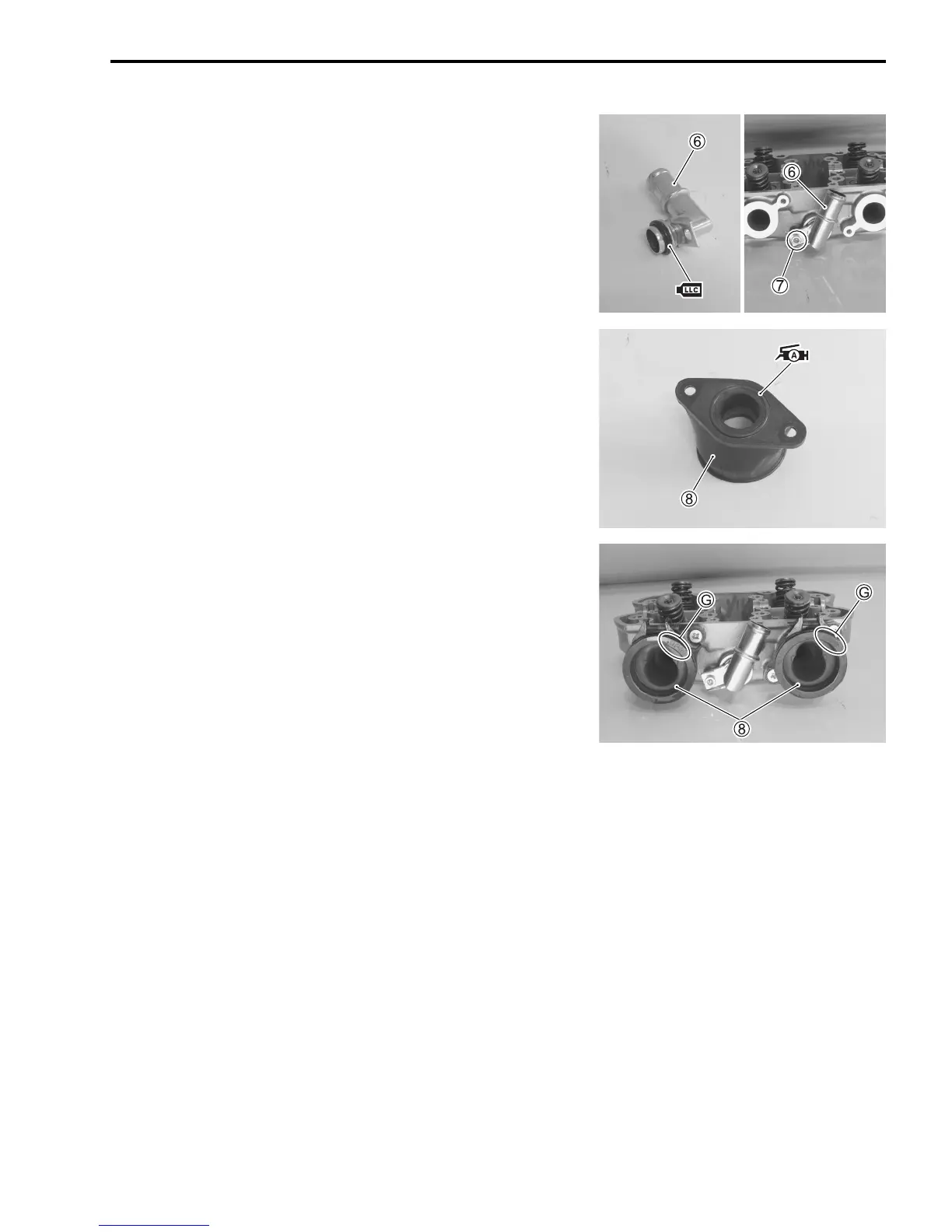

• Apply engine coolant to the new O-ring of the cylinder head
water outlet pipe 6.
• Tighten the water outlet pipe bolt 7 to the specified torque.
 Cylinder head water outlet pipe bolt:
10 N·m (1.0 kgf-m, 7.0 lbf-ft)
• Apply grease to the new O-rings of the intake pipes 8.
 99000-25010: SUZUKI SUPER GREASE “A”
or equivalent
• Install the intake pipes 8 with “UP” mark G faced upward.

Suzuki GW250 Specifications

General

Engine Type	4-stroke, 2-cylinder, liquid-cooled, SOHC
Displacement	248 cc
Bore x Stroke	53.5 mm x 55.2 mm
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	Electronic ignition (Transistorized)
Starter	Electric
Transmission	6-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Front Tire	110/80-17M/C 57H, tubeless
Rear Tire	140/70-17M/C 66H, tubeless
Curb Mass	183 kg (403 lbs)
Front Brakes	Single disc
Rear Brakes	Single disc
Fuel Tank Capacity	13.3 liters
Overall Width	760 mm
Overall Height	1, 075 mm
Wheelbase	1, 430 mm
Ground Clearance	165 mm (6.5 in)
Seat Height	780 mm (30.7 in)
Overall Length	2, 145mm (84.4 inches)
