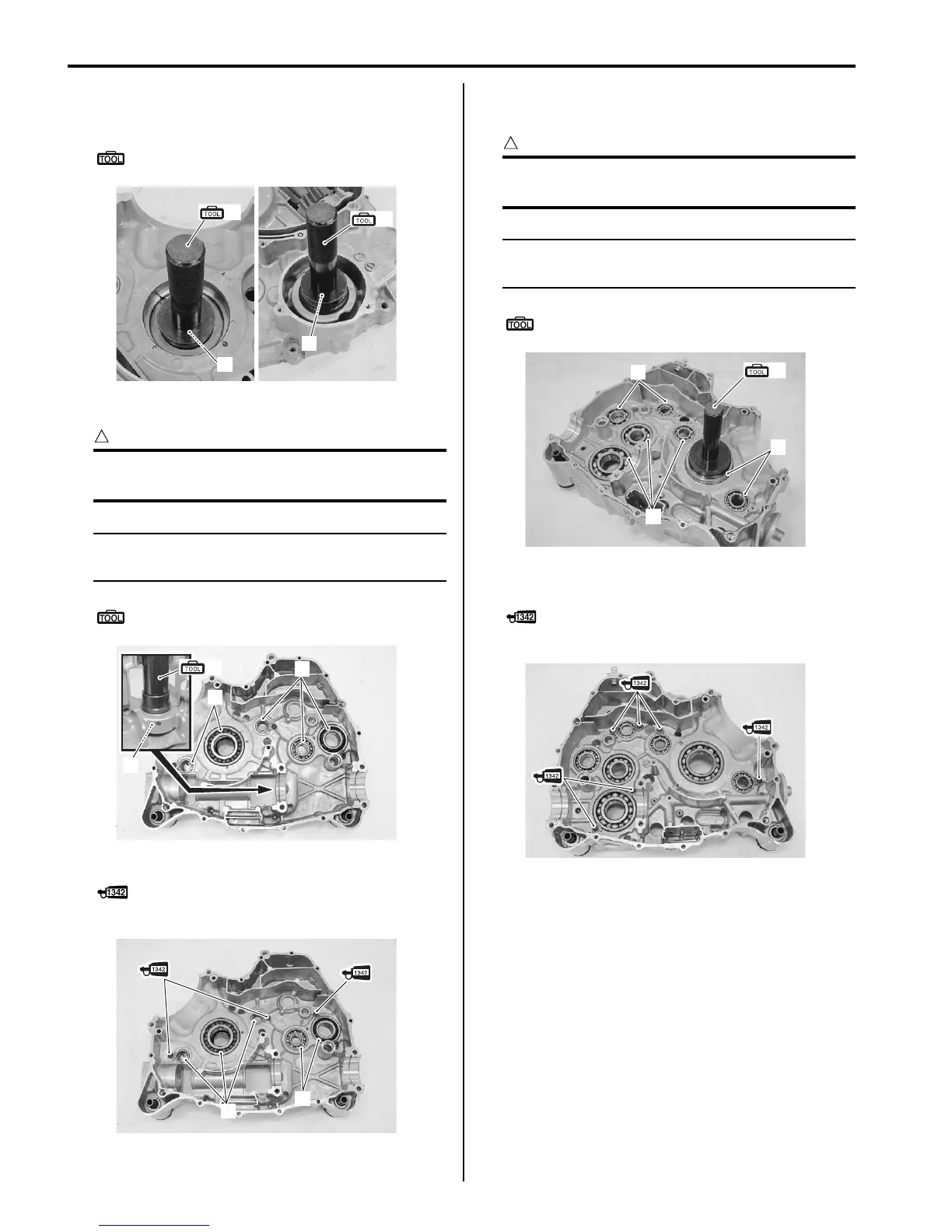

1D-65 Engine Mechanical:
Right crankcase
1) Install the oil seals (1) with the special tool.
Special tool
: 09913–70210 (Bearing installer set)
2) Install the bearings (2) with the special tool.
CAUTION
!
Use the special tool suitable size for each
bearing to prevent damage.
NOTE
The stamped mark side of the bearing faces
inside of crankcase.
Special tool
(A): 09913–70210 (Bearing installer set)
3) Apply thread lock to the screws and tighten them.
: Thread lock cement 99000–32050
(THREAD LOCK CEMENT 1342 or equivalent)
Left crankcase
1) Install the bearings (1) with the special tool.
CAUTION
!
Use the special tool suitable size for each
bearing to prevent damage.
NOTE
The stamped mark side of the bearing faces
inside of crankcase.
Special tool
(A): 09913–70210 (Bearing installer set)
2) Apply thread lock to the screws, and install the
retainers by tightening them.
: Thread lock cement 99000–32050
(THREAD LOCK CEMENT 1342 or equivalent)
