Wiring Systems: 9A-6
Specifications
Service Data
B831G29107001
Electrical
Unit: mm
“a”
1
5
4
7
7
2
3
6
I831G1910905-05

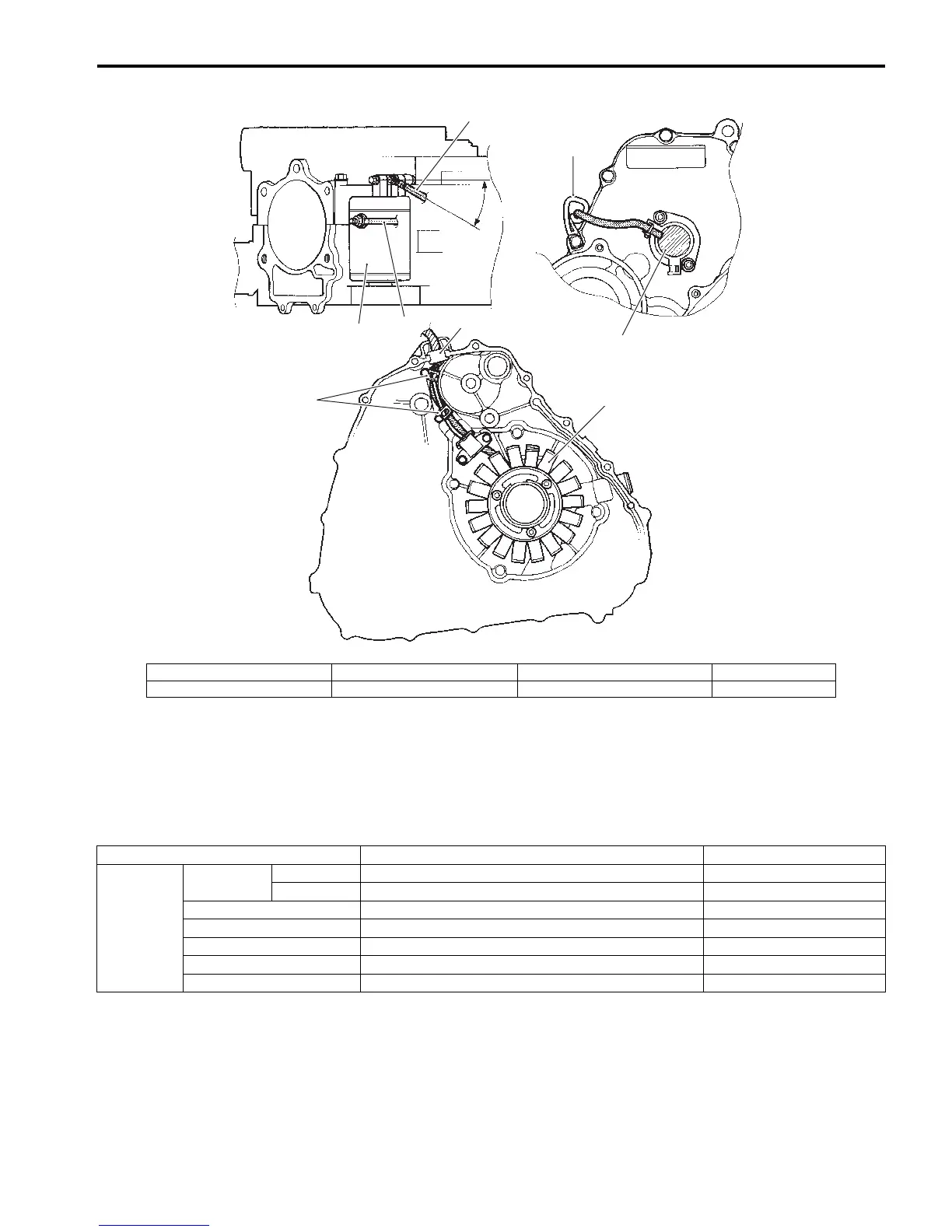

1. Starter motor 3. Generator stator 5. Starter motor lead wire 7. Clamp
2. Gear position switch 4. Ground wire 6. Grommet “a”: 30°
Item Specification Note
Fuse size
Headlight
HI 10 A
LO 10 A
Fuel 10 A
Ignition 15 A
Power source 10 A
Fan 15 A
Main 30 A
