Automatic Transmission: 5A-1
Transmission / Transaxle
Automatic Transmission
Schematic and Routing Diagram
Drive Train System
B831G25102001
1
3
2
8
9
6
7
12
13
11
10
4
“A”
5
I831G1510001-04

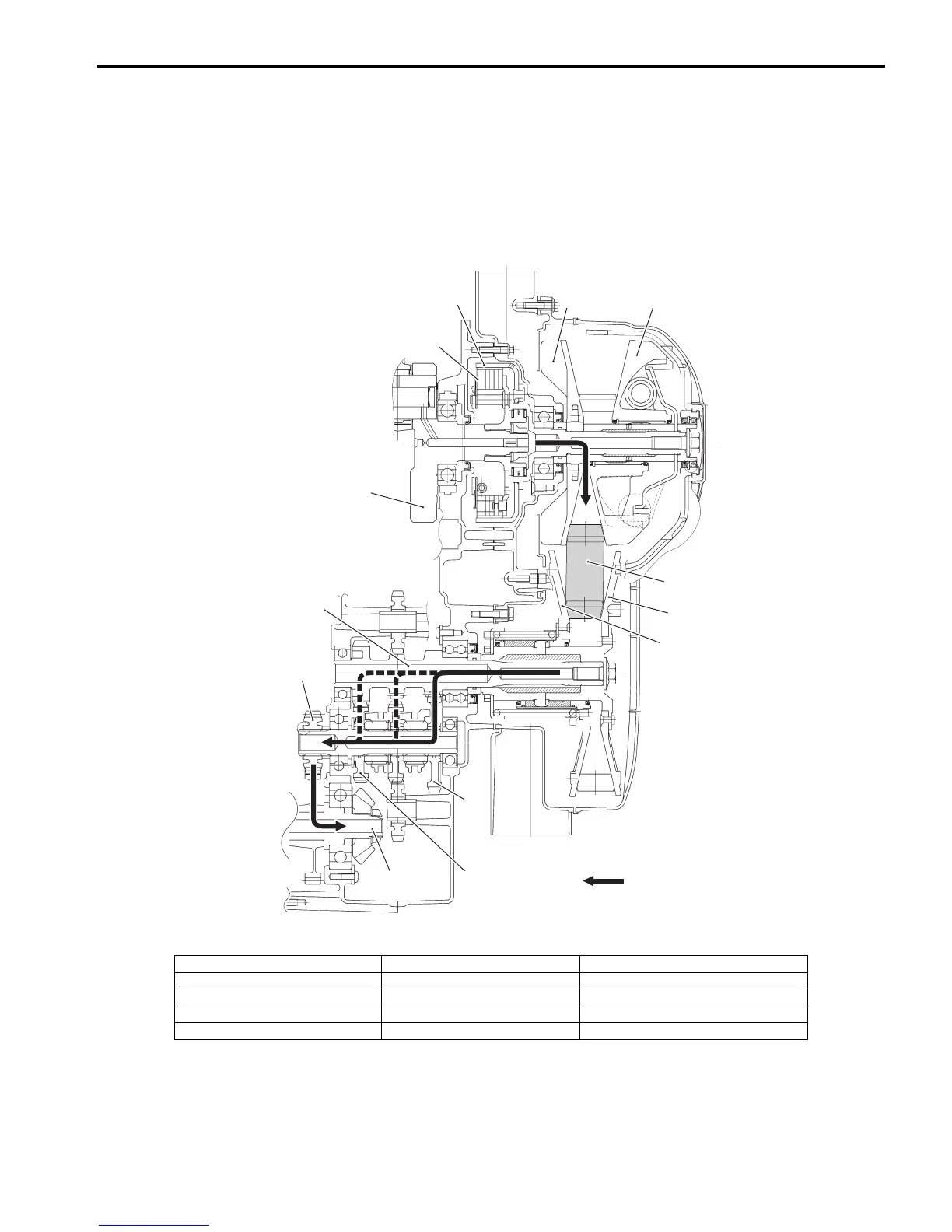

1. Crankshaft 6. Fixed driven face 11. High driven gear
2. Movable drive face 7. Transfer input shaft 12. Transfer output drive gear
3. Fixed drive face 8. Clutch shoe 13. Transfer output driven gear shaft
4. V-belt 9. Clutch housing “A”: Drive train route
5. Movable driven face 10. Low driven gear
