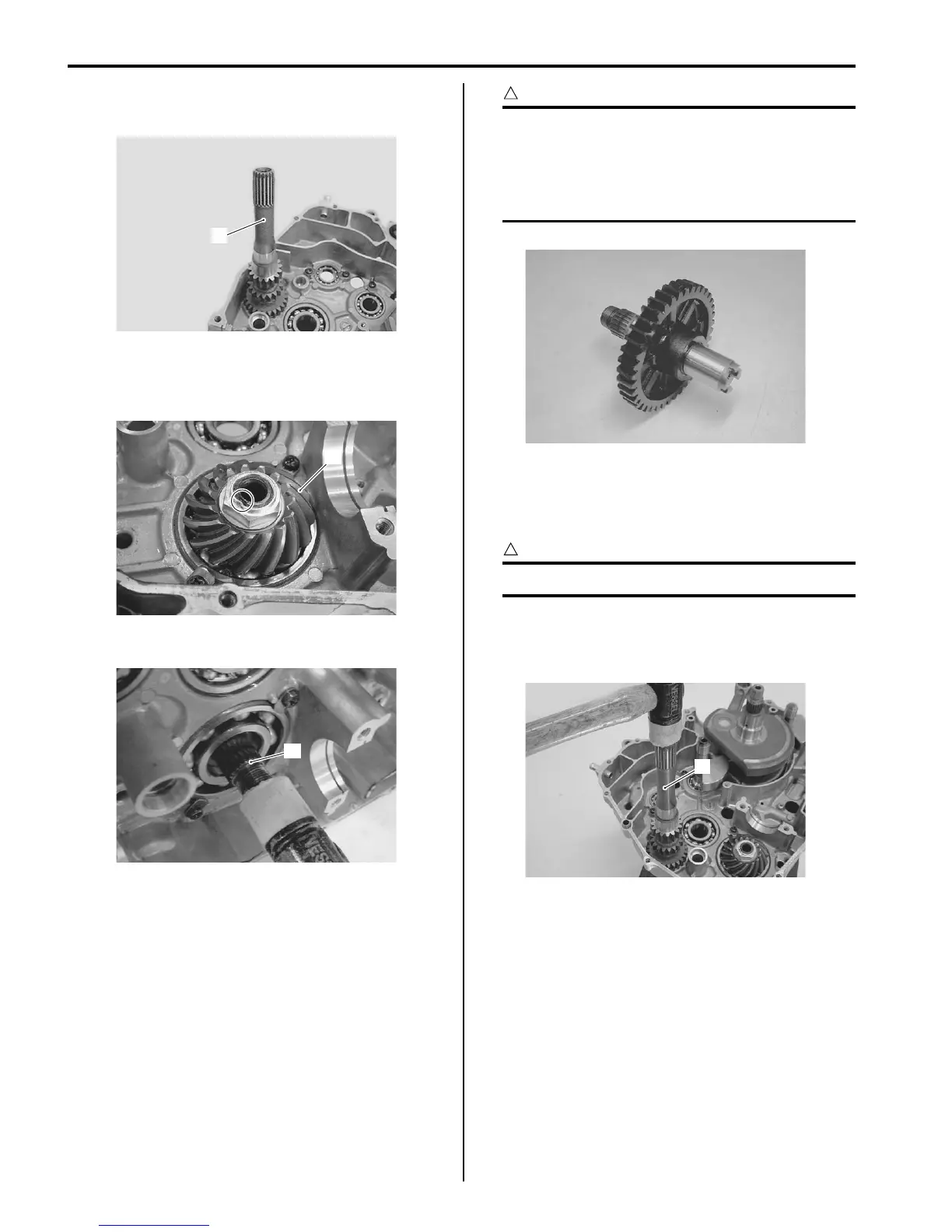

3C-4 Transfer:

9) Remove the drive shaft (9) with a plastic mallet by

installing a suitable washer with the drive face bolt.

10) Remove the drive bevel gear (10). Refer to “Rear

Output Shaft Removal and Installation in Section 3D

(Page 3D-6)”.

11) Remove the output shaft (11) with a plastic mallet.

CAUTION

• Do not disassemble the transfer output

shaft.

• The transfer output driven gear and

transfer output shaft is available only as an

assembly.

Installation

Install the transfer in the reverse order of removal. Pay

attention to the following points:

CAUTION

Apply engine oil to each gears and shafts.

• Install the bevel gear. Refer to “Rear Output Shaft

Removal and Installation in Section 3D (Page 3D-6)”.

• Install the drive shaft (1) with the plastic mallet.

I831G1330011-02

I831G1330012-02

I831G1330013-01

I831G1330014-01

I831G1330015-01
