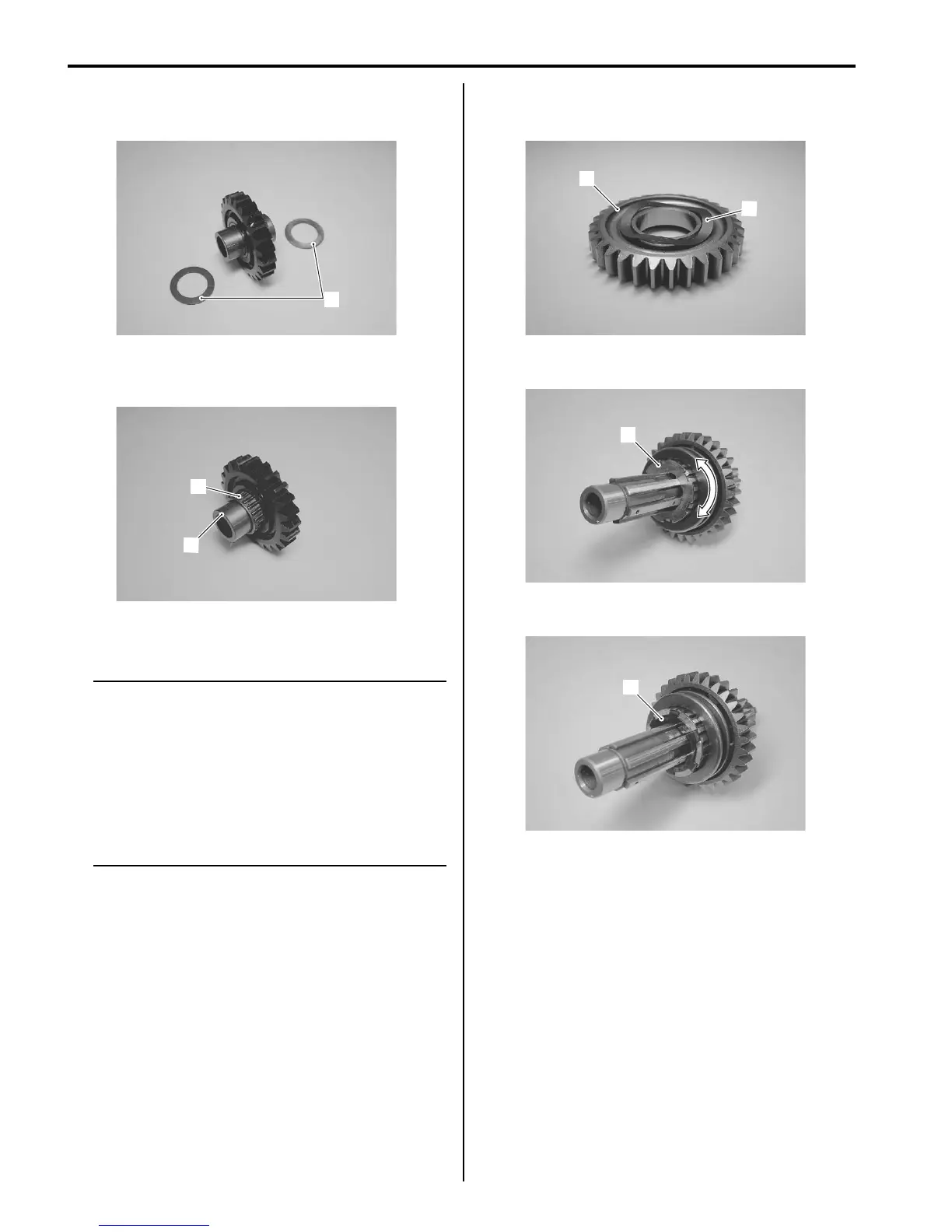

3C-8 Transfer:
Reverse idle gear
1) Remove the washers (1).
2) Remove the reverse idle gear shaft (2) and bering
(3).
Assembly
NOTE
• When reassembling the driven gears,
attention must be given to the locations
and positions of washers. The cross
sectional view shows the correct position
of the snap ring. Refer to “Transfer
Construction (Page 3C-6)”.
• Before installing the gears, coat lightly
engine oil to the counter shaft component
parts.
Assemble the counter shaft and reverse idle gear in the
reverse order of disassembly. Pay attention the following
points:
• Before installing the high driven gear (1), set the wave
washer (2) as shown in the figure.
• Install the lock washer (3).
• Install the lock washer (4).
1
I831G1330028-01
2
3
I831G1330029-01
1
2
I831G1330030-01
3
I831G1330063-01
4
I831G1330064-01
To Next Page
