Automatic Transmission: 5A-21

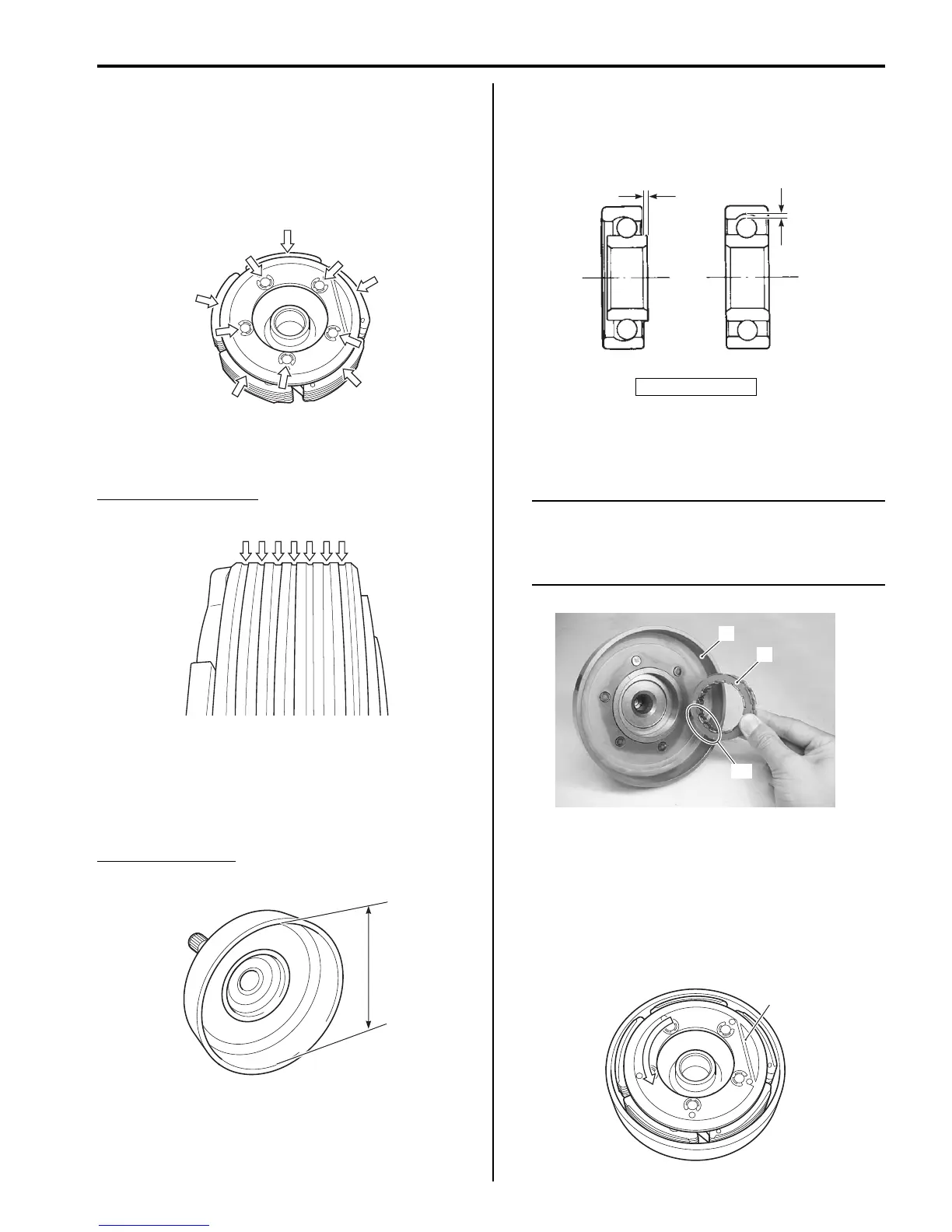

Clutch Shoe
Inspect the boss and centrifugal weight fulcrum sections
for looseness, damage and operation.
Inspect the clutch shoe for damage and fouling with oil
on the surface.
If any defects are found, replace the clutch shoe
assembly with a new one.
Measure the thickness of the clutch shoe at the center
position. If the thickness is less than the service limit,
replace the clutch shoe assembly with a new one.
Clutch shoe thickness
Service limit: No groove at any part
Clutch housing
Inspect the clutch housing for any abnormal surface
damage. Measure the inside diameter of the clutch
housing. If the measurement exceeds the service limit,
replace the clutch housing with a new one.
Clutch housing I.D.
Service limit: 140.5 mm (5.53 in)
Left Clutch Housing Bearing
Rotate the inner race by finger to inspect for abnormal
play, noise and smooth rotation. If there is anything
unusual, replace the bearing with a new one.
One Way Clutch
Install the one way clutch (1) onto the proper direction as
shown.
NOTE
When Installing the one way clutch (1) onto
the clutch housing (2), make sure that the
“OUTSIDE” mark “A” in the one way clutch
faces to the clutch housing.
• Install the clutch shoe (3) onto the clutch housing and
turn the clutch shoe by hand to inspect the one way
clutch for a smooth movement. The clutch shoe turns
one direction only. If a large resistance is felt to
rotation, inspect the one way clutch for damage or one
way clutch contacting surface of the clutch shoe for
wear or damage. If any defects are found, replace
them with new ones.
I831G1510084-01
I831G1510085-01
I831G1510086-01
“a”: play
“a”
“a”
I831G1510087-01
“A”
1
2
I831G1510088-01
3
I831G1510089-01
