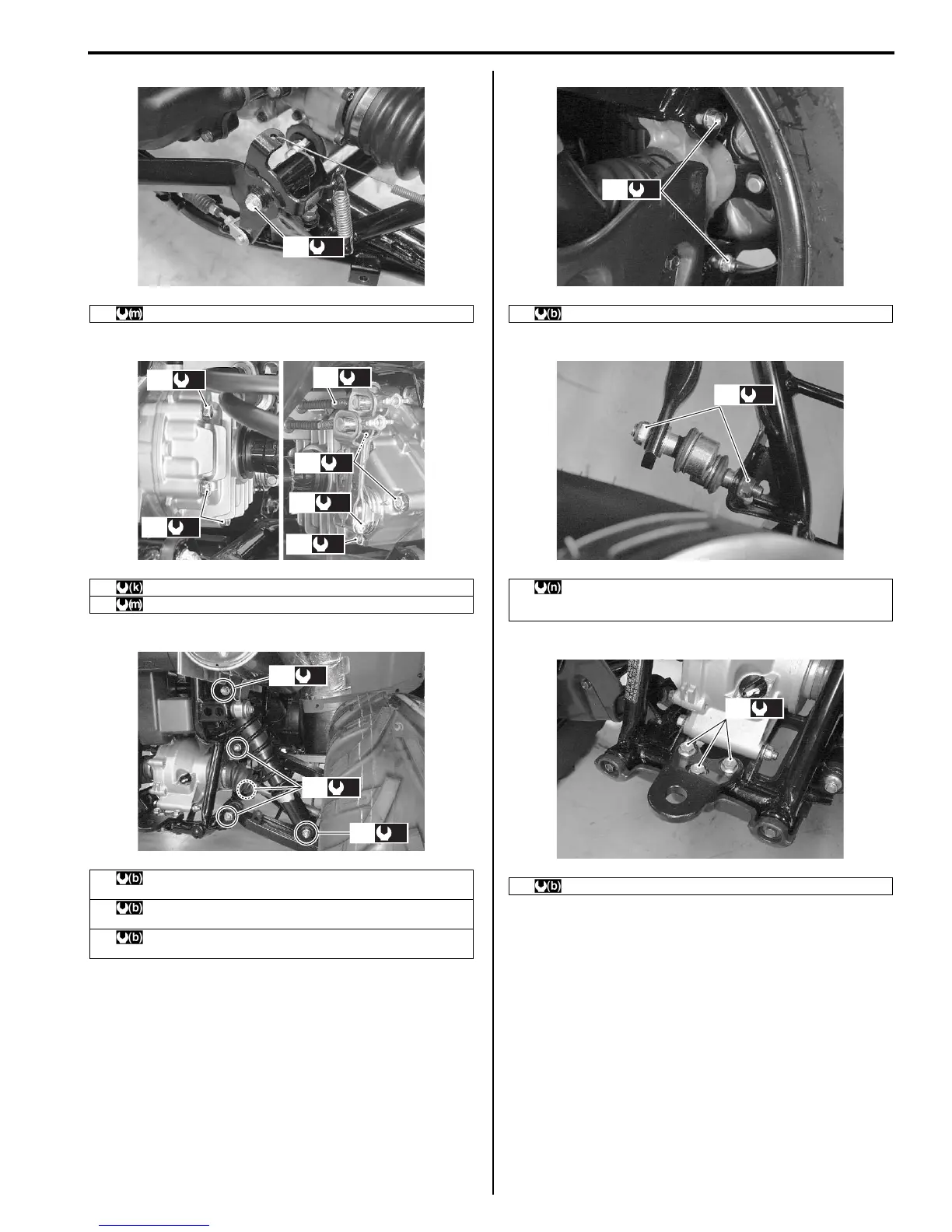

Maintenance and Lubrication: 0B-25
22 Rear brake pedal pivot bolt 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
23 Rear brake case bolt 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
24 Rear brake cam lever nut 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
25 Rear shock absorber mounting nut (Lower) 60 N⋅m (6.0 kgf-m,
43.5 lb-ft)
26 Rear shock absorber mounting nut (Upper) 60 N⋅m (6.0 kgf-m,
43.5 lb-ft)
27 Rear suspension arm pivot nut (Upper and Lower) 60 N⋅m (6.0
kgf-m, 43.5 lb-ft)
(m)
22
I831G1020074-04
(k)
23
(k)
23
(k)
23
(k)
23
(m)
24
(k)
23
I831G1020075-05
(b)
26
(b)
27
(b)
25
I831G1020076-02
28 Rear knuckle nut 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
29 Rear stabilizer joint nut
[Up to 5SAAR41A497105526: 34 N⋅m (3.4 kgf-m, 24.5 lb-ft)]
[From 5SAAR41A497105527: 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)]
30 Trailer towing mounting bolt 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
(b)
28
I831G1020077-02
(n)
29
I831G1020078-04
(b)
30
I831G1020079-02
