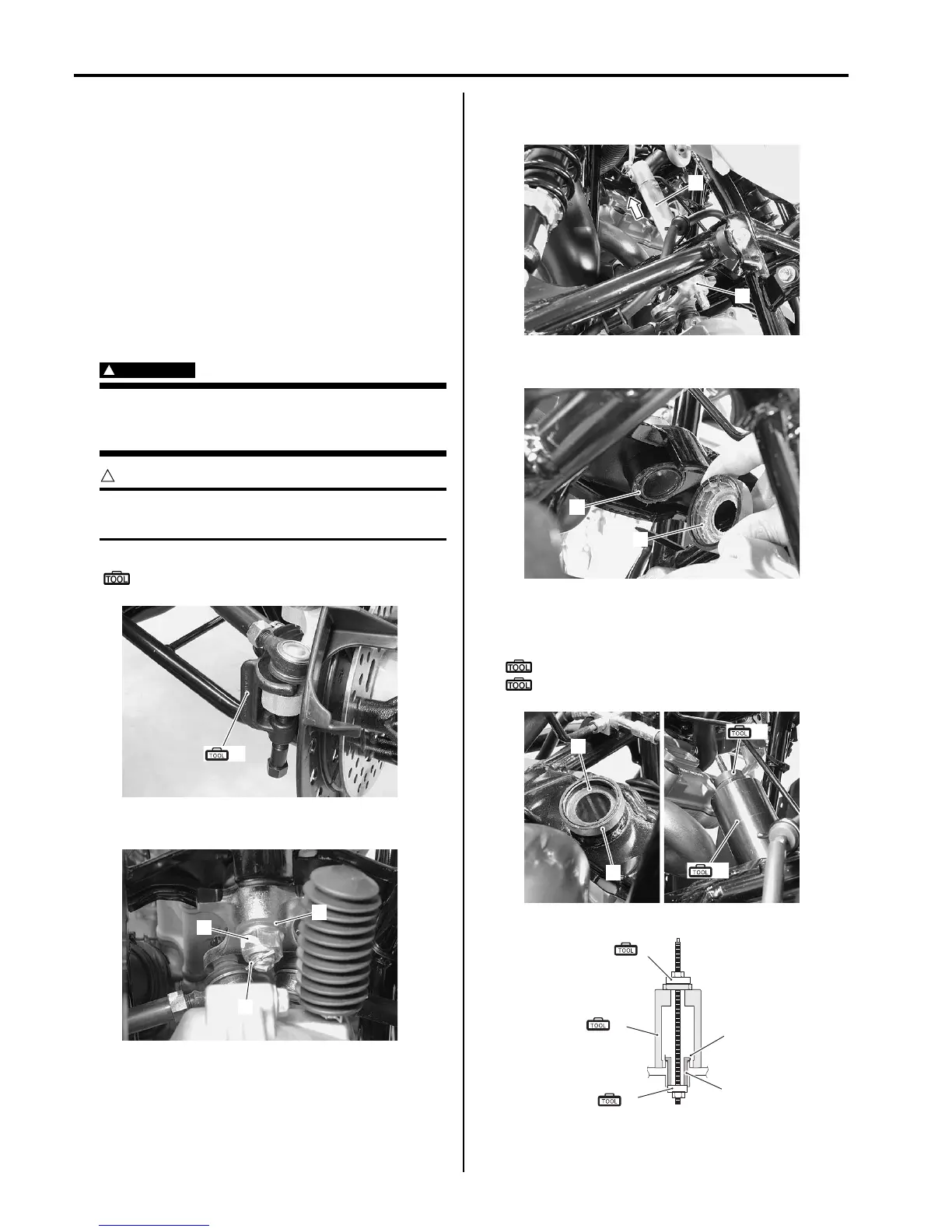

6B-6 Steering / Handlebar:
Steering Shaft Removal and Installation (LT-
A750XP/ZK9)
B931G46206012
Removal
1) Remove the EPS control unit. Refer to “EPS Control
Unit Removal and Installation (LT-A750XP/ZK9) in
Section 6C (Page 6C-48)”.
2) Remove the EPS body assembly. Refer to “EPS
Body Assembly Removal and Installation (LT-
A750XP/ZK9) in Section 6C (Page 6C-50)”.
3) Disconnect the tie-rod ends with the special tool.
Refer to “Front Wheel Hub / Steering Knuckle
Removal and Installation in Section 2B in related
manual”.
WARNING
!
When using the tie-rod end remover, keep
clear of the tie-rod end because it may come
loose with some force and could strike you.
CAUTION
!
Make sure that the vehicle is supported
securely.
Special tool
(A): 09942–72410 (Tie-rod end remover)
4) Remove the cotter pin (1), nut (2) and washer (3).
5) Remove the steering arm plate (4) and steering shaft
(5).
6) Remove the lower dust seal (6) and O-ring (7).
7) Remove the steering shaft bushing (8) and dust seal
(9) with the special tools and suitable socket wrench.
Special tool
(B): 09924–84521 (Bearing installer set)
(C): 09930–30721 (Rotor remover)
(A)
I931G3620009-01
1
2
3
I931G3620010-01
4
5
I931G3620011-01
6
7
I931G3620012-01
8
9
(B)
(C)
I931G3620013-02
(B)
(C)
8
9
(B)
I931H1620020-02
