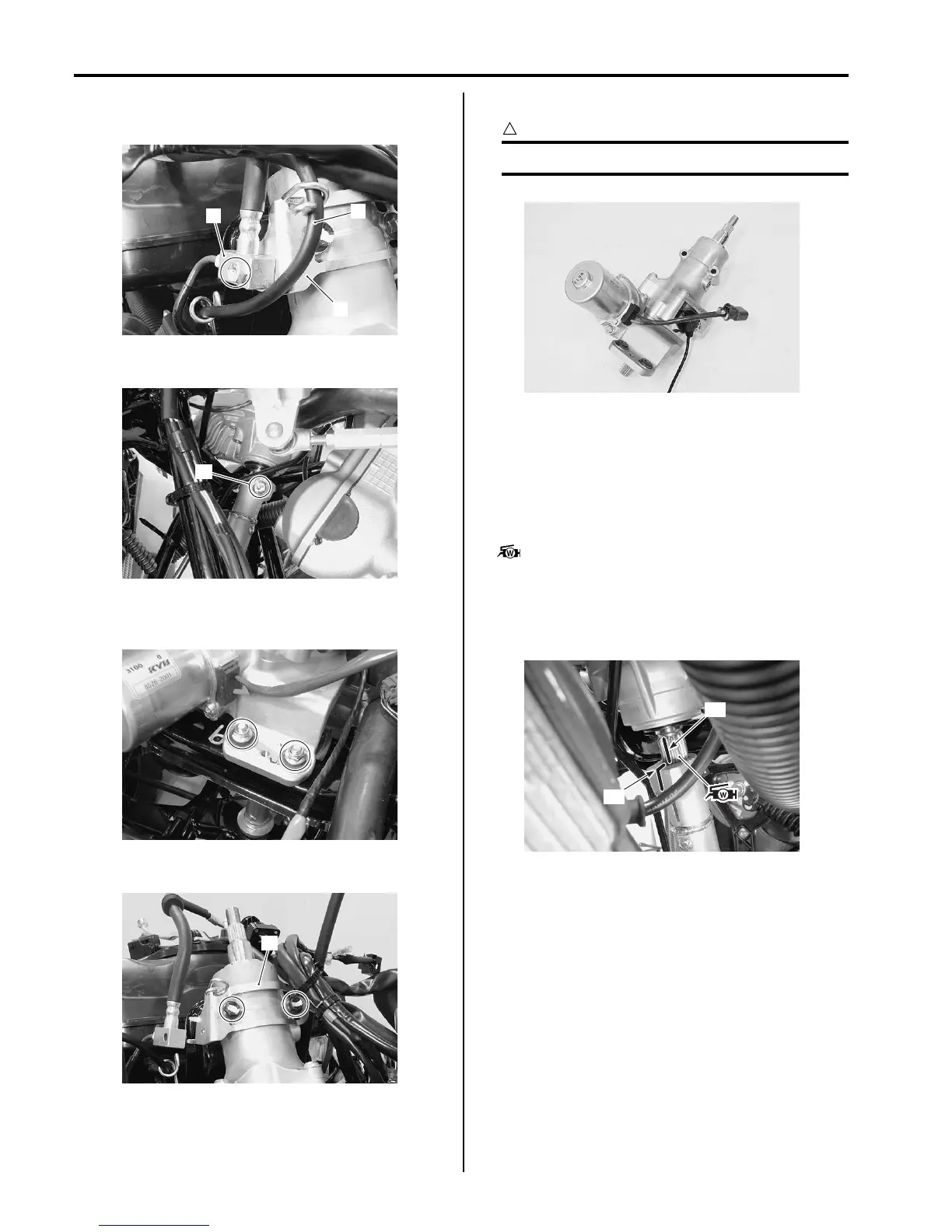

6C-51 Power Assisted Steering System:
9) Remove the front brake hose union (7) and throttle
cable (8) from the cable guide (9).
10) Remove the steering shaft bolt (10).
11) Remove the EPS body assembly mounting nuts and
bolts.
12) Remove the cable guide (11).
13) Remove the EPS body assembly.
CAUTION
!
Never disassemble the EPS body assembly.
Installation
Refer to “Steering / Handlebars Assembly Construction
(LT-A750XP/ZK9) in Section 6B (Page 6B-2)”.
Install the EPS body assembly in the reverse order of
removal. Pay attention to the following points:
• Apply grease to the spline of the EPS body assembly.
: Grease 99000–25160 (Water resistance
grease or equivalent)
• When installing the EPS body assembly, align the
marking “A” of the EPS output shaft and slide “B” of
the steering shaft.
7
9
8
I931G3630053-01
10
I931G3630054-01
I931G3630055-01
11
I931G3630056-01
I931G3630057-02
“A”
“B”
I931G3630058-02
To Next Page
