Adjusting the Drive Chain

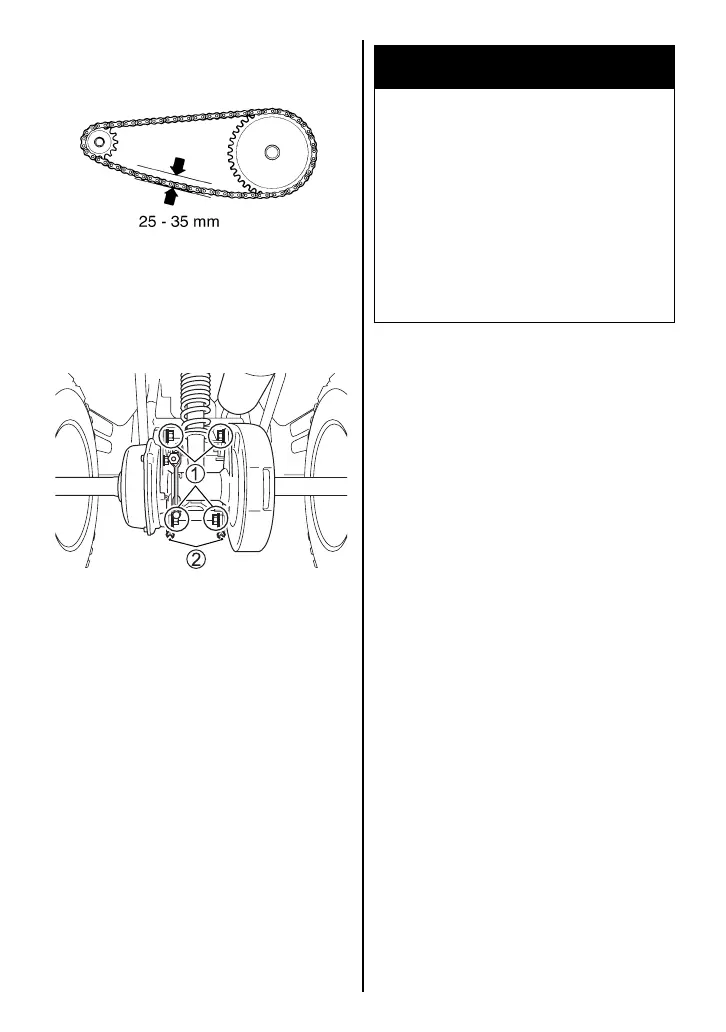

The drive chain should be adjusted so
there is 25 – 35 mm (1.0 – 1.4 in) of
slack, as shown above.
To adjust the drive chain, follow the
procedure below:
1. Loosen the bolts 1.
2. Adjust the slack in the drive chain
by turning the chain adjuster nuts
2 equally to tighten or slacken the
chain.
3. When proper slack is obtained,
tighten the four bolts 1.
4. Tighten the adjusting nuts 2.
5. Check the brake lever travel as
shown on page 6-21. Adjust the
brake if necessary.
WARNING
Failure to inspect the drive chain
slack before each use of the ATV
could be hazardous.
Too much chain slack could cause
the chain to come off the sprock-
ets, resulting in an accident or
serious damage to the ATV.
Inspect the drive chain slack
before each use.
