ENGINE MECHANICAL (K9K ENGINE) 6A2-25

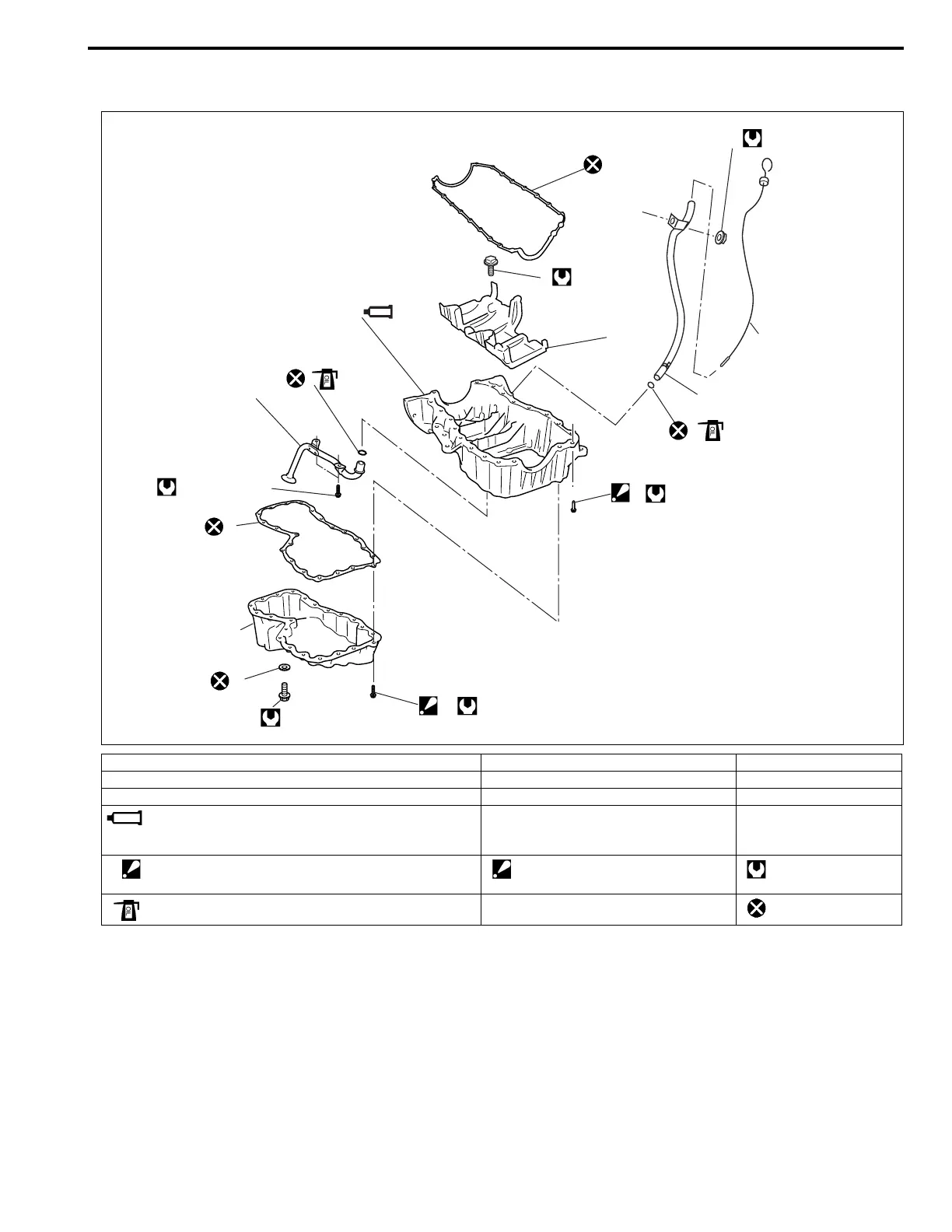

Oil Pan and Oil Pump Strainer Components
1. Upper oil pan gasket 7. Oil pump strainer 13. Engine oil drain plug
2. Oil pan baffle plate bolt 8. Oil pump strainer bolt 14. Level gauge
3. Oil pan baffle plate 9. Lower oil pan gasket 15. Level gauge tube nut
4. Upper oil pan
: Apply RHODORSEAL 5661® referring to “Installation”
under “Oil Pan and Oil Pump Strainer Removal and Installa-
tion”.
10. Lower oil pan 16. Level gauge tube
5. Upper oil pan bolt
: Tighten 6 N·m (0.6 kg-m, 4.5 lb-ft) and 16 N·m (1.6 kg-m,
12.0 lb-ft) by the specified procedure.
11. Lower oil pan bolt
: Tighten 12 N·m (1.2 kg-m, 9.0 lb-ft)
by the specified procedure.
Tightening torque
6. O-ring
: Apply engine oil.
12. Engine oil drain plug gasket Do not reuse.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
6
21 N·m (2.1 kg-m)
12 N·m (1.2 kg-m)
35 N·m (3.5 kg-m)
8 N·m (0.8 kg-m)
