6A2-26 ENGINE MECHANICAL (K9K ENGINE)
Oil Pan and Oil Pump Strainer Removal and
Installation
Removal
1) Disconnect negative (–) cable at battery.
2) Drain engine oil referring to “Engine Oil and Filter Change” in
Section 0B.
3) Remove engine hood after disconnecting windshield washer
hose.
4) Remove oil level gauge.
5) Remove clutch operating cylinder referring to “Transmission
Dismounting and Remounting” in Section 7A2.
6) To facilitate and ensure removal of oil pan, increase clear-
ance between engine and vehicle body according to the fol-
lowing procedures.

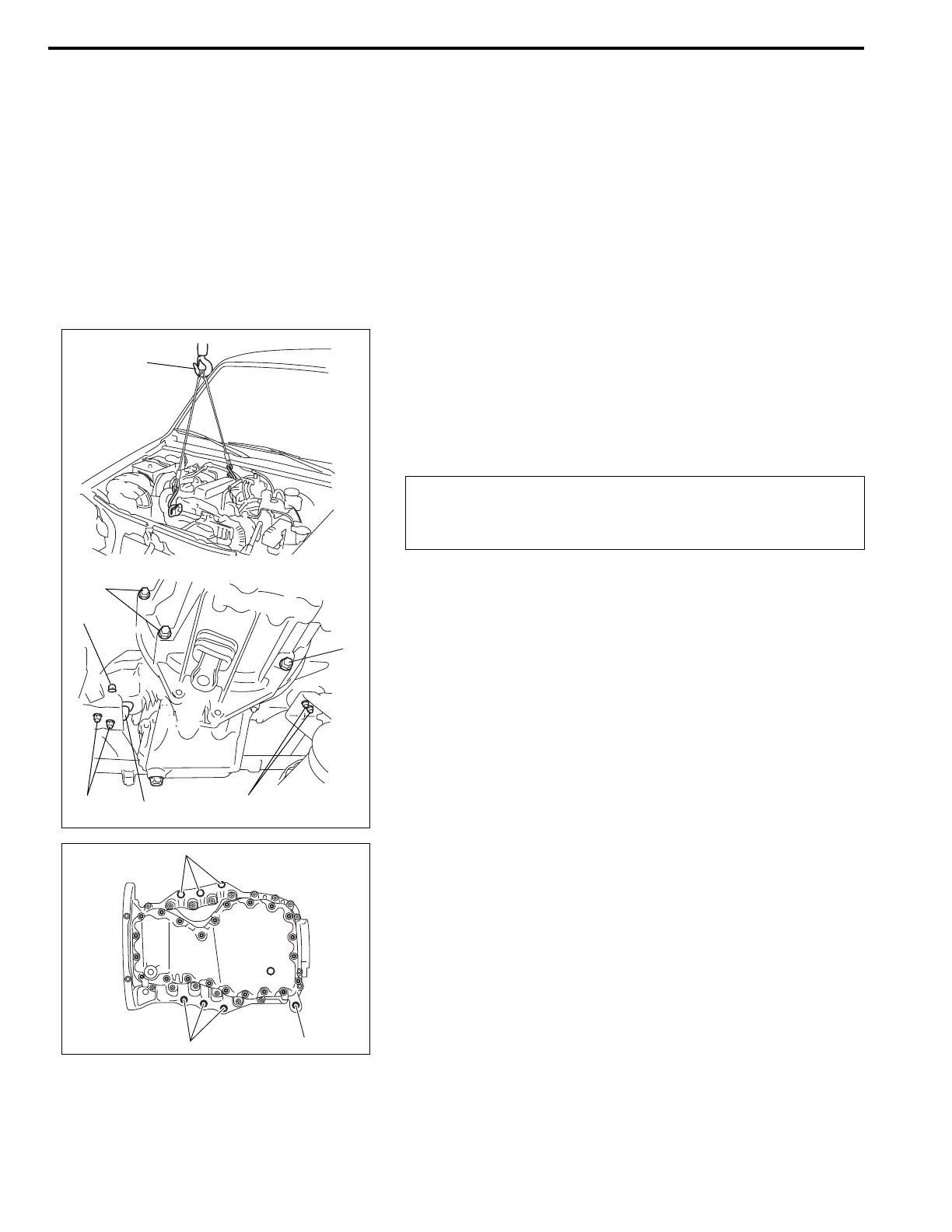

a) Install lifting device (1).
b) Remove engine mounting nuts (2).
c) Hoist engine 15 – 20 mm (0.6 – 0.8 in.).
d) Remove engine left mounting (3).
7) Remove transmission to engine bolts (4).
8) Remove engine mounting bracket bolts (1).
9) Remove accessory bracket bolt (2).
CAUTION:
Do not hoist engine more than instructed above. That
may cause trouble to engine or transmission.
