ENGINE MECHANICAL (K9K ENGINE) 6A2-27

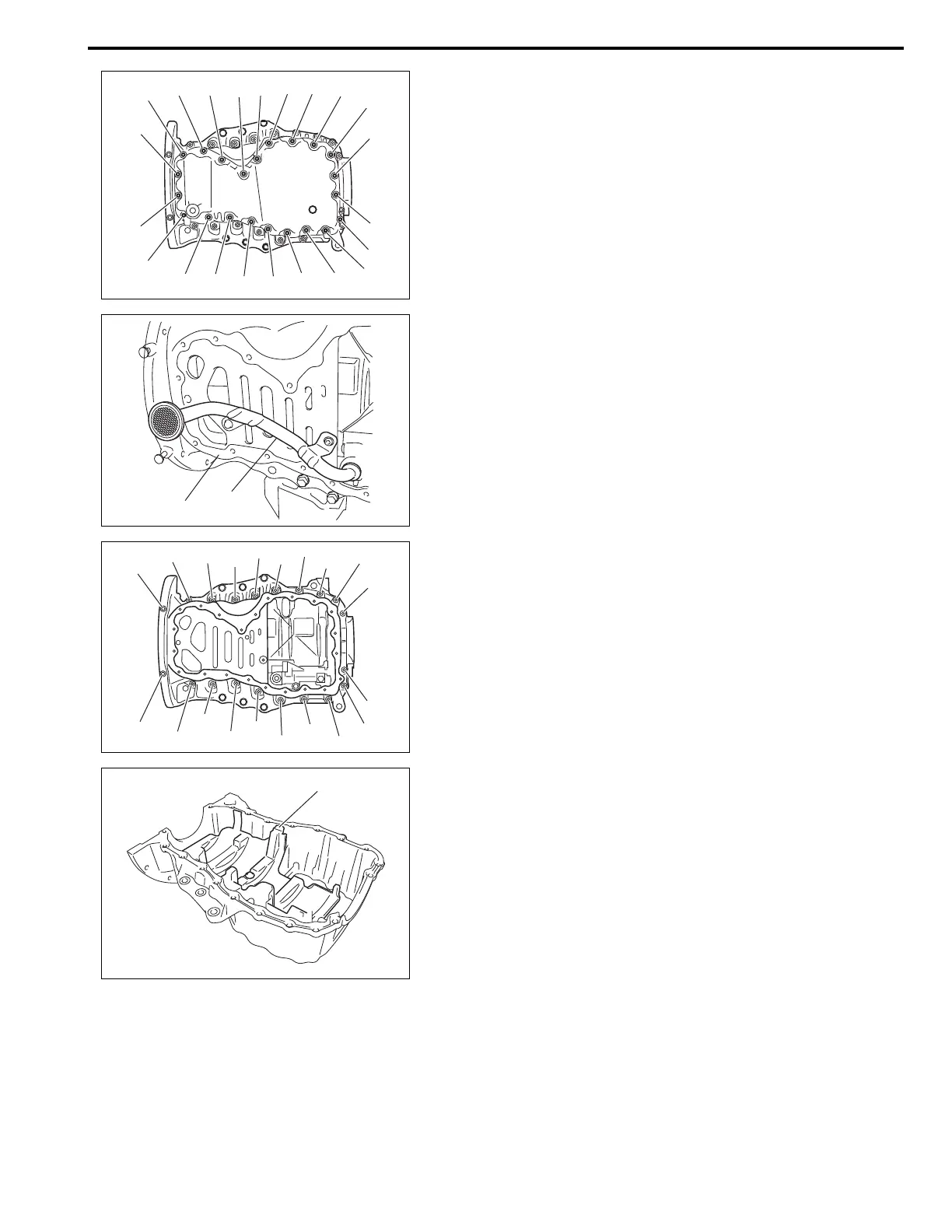

10) Loosen lower oil pan bolts in numerical order (“1” to “22”) as
shown in figure, and remove them.
11) Remove lower oil pan from upper oil pan.
12) Remove oil pump strainer (1) from upper oil pan (2).
13) Loosen upper oil pan bolts in numerical order (“1” to “20”) as
shown in figure, and remove them.
14) Remove upper oil pan from cylinder block.
15) Remove oil pan baffle plate (1) from upper oil pan.
