6A2-36 ENGINE MECHANICAL (K9K ENGINE)

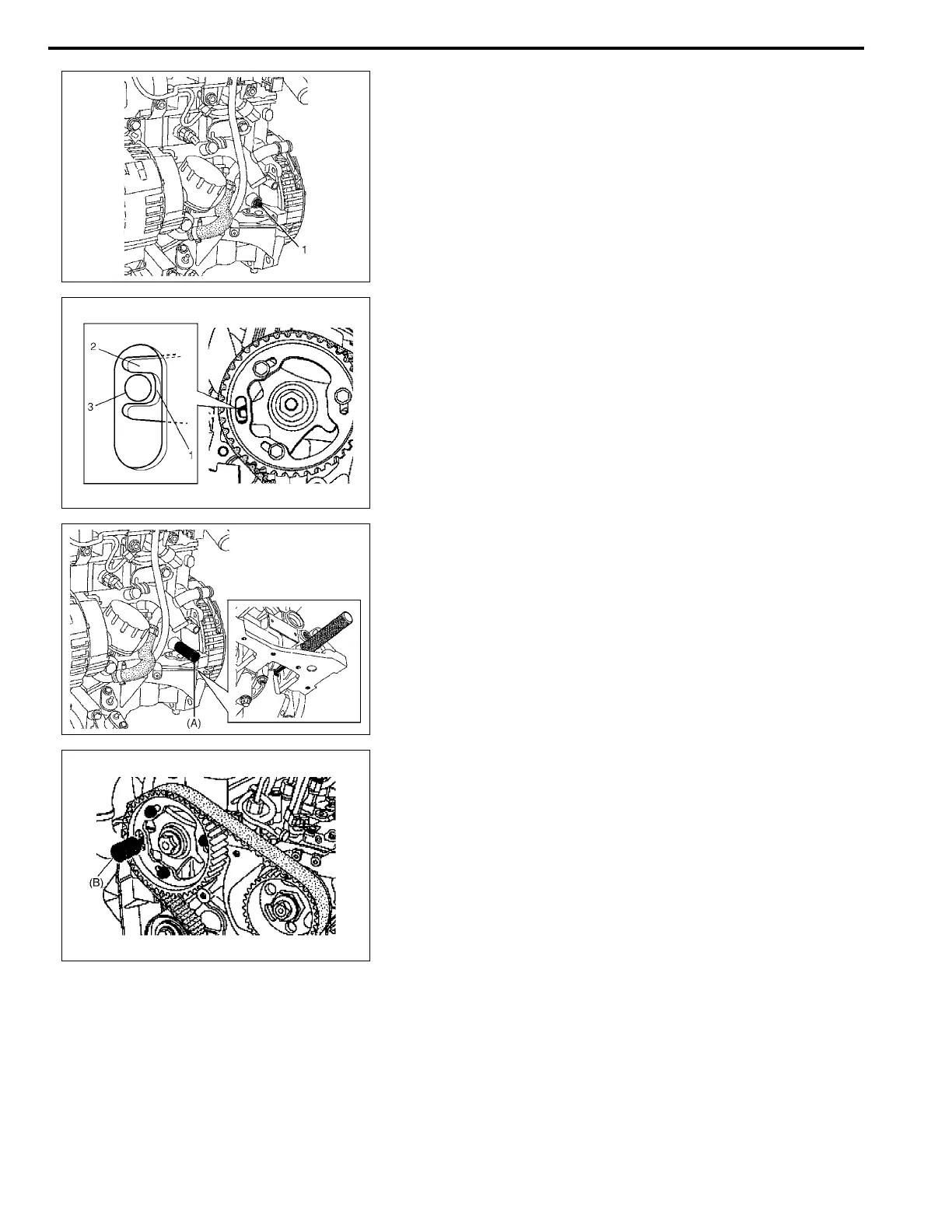

7) Remove TDC pin cap (1).
8) Turn crankshaft pulley clockwise, and stop it just before
aligning slit (1) of camshaft pulley hub (2) matches with hole
(3) of cylinder head.
9) Insert special tool (A) into TDC pin hole as shown in figure.
Special tool
(A): 09919-58110
10) Turn crankshaft pulley clockwise until crankshaft touches
special tool (A).
11) Check that special tool (B) inserts holes of camshaft pulley
hub and cylinder head smoothly.
Special tool
(B): 09919-58120
