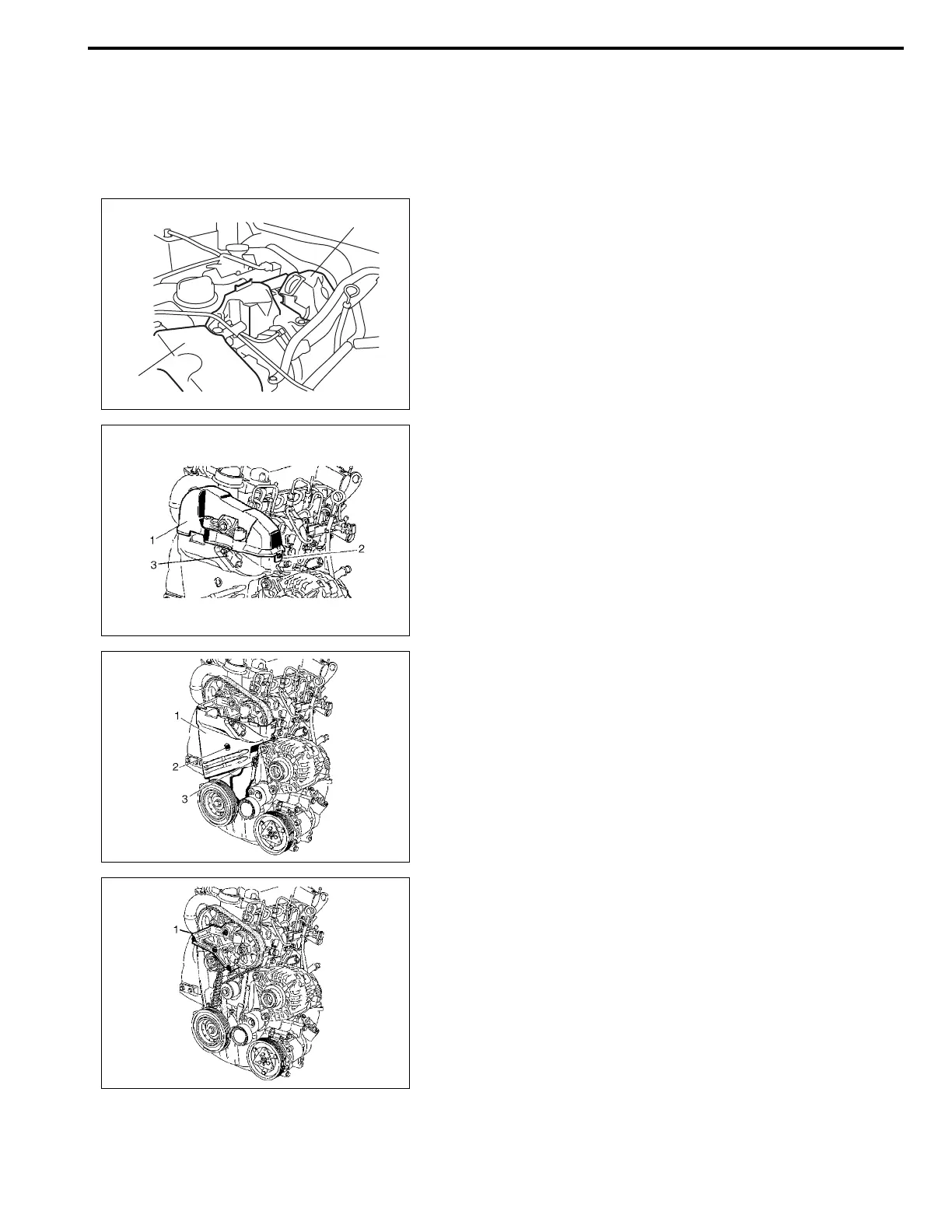

ENGINE MECHANICAL (K9K ENGINE) 6A2-35
Timing Belt and Belt Tensioner Removal and
Installation
Removal
1) Remove engine assembly from vehicle referring to “Engine
Assembly Removal and Installation” in this section.
2) Remove injector cover (1) and generator upper bracket (2).
3) Remove timing belt upper cover (1) after unhooking its tabs
(2).
4) Remove CMP sensor (3).
5) Remove timing belt lower cover (1) after unhooking its tabs
(3) and removing its plastic bolt (2).
6) Remove generator upper bracket support (1) from cylinder
head.
1
2
