6A2-34 ENGINE MECHANICAL (K9K ENGINE)

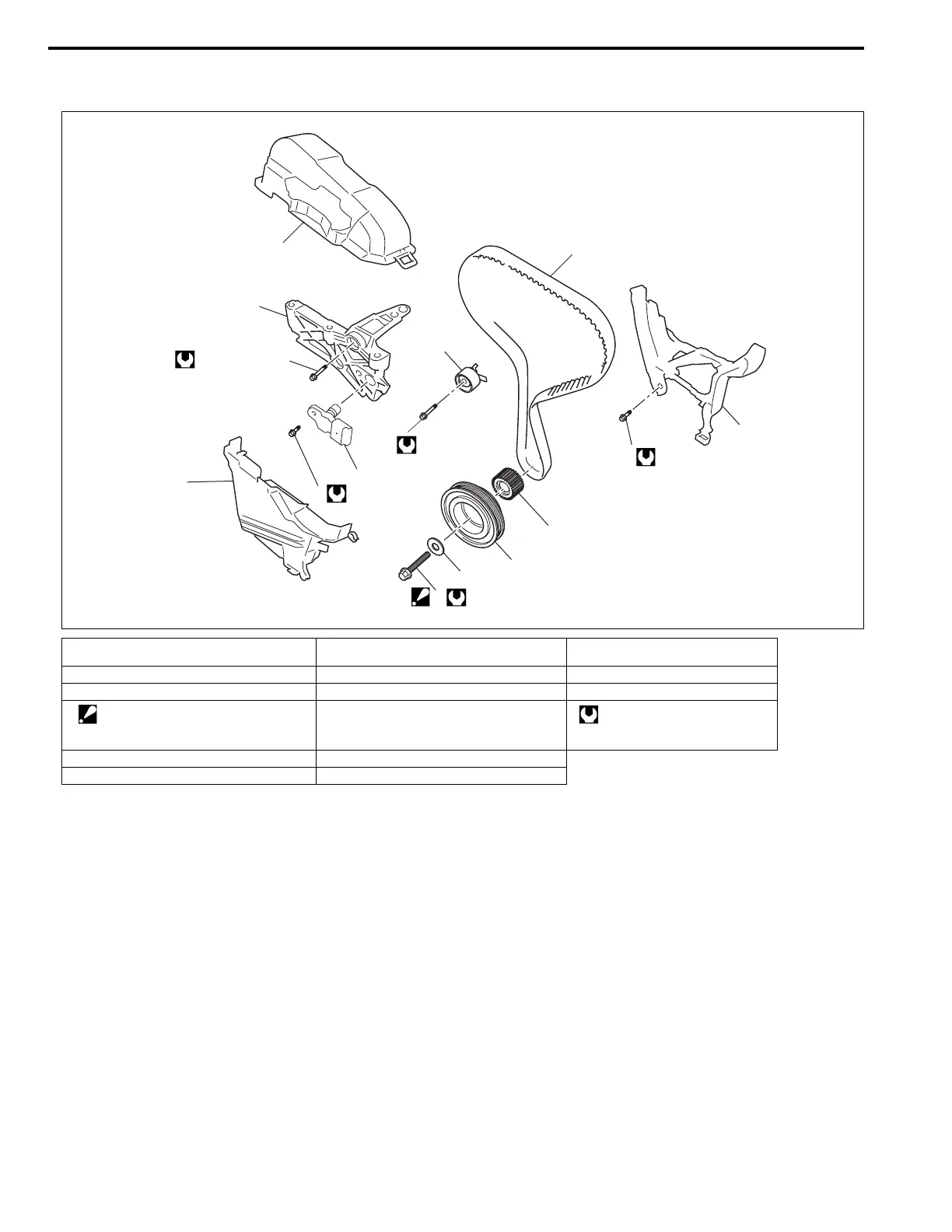

Timing Belt and Belt Tensioner Components
1. Timing belt upper cover 7. Timing belt pulley 13. Generator upper bracket support
bolt
2. Generator upper bracket support 8. Timing belt tensioner bolt 14. CMP sensor
3. Timing belt lower cover 9. Timing belt tensioner 15. CMP sensor bolt
4. Crankshaft pulley bolt
: Tighten 120 N·m (12.0 kg-m, 87
lb-ft) and 95° by the specified pro-
cedure.
10. Timing belt Tightening torque
5. Washer 11. Timing belt inner cover
6. Crankshaft pulley 12. Timing belt inner cover bolt
15
3
13
2
14
9
11
12
7
6
5
4
1
10
8 N·m (0.8 kg-m)
8
27 N·m (2.7 kg-m)
21 N·m (2.1 kg-m)
9 N·m (0.9 kg-m)
