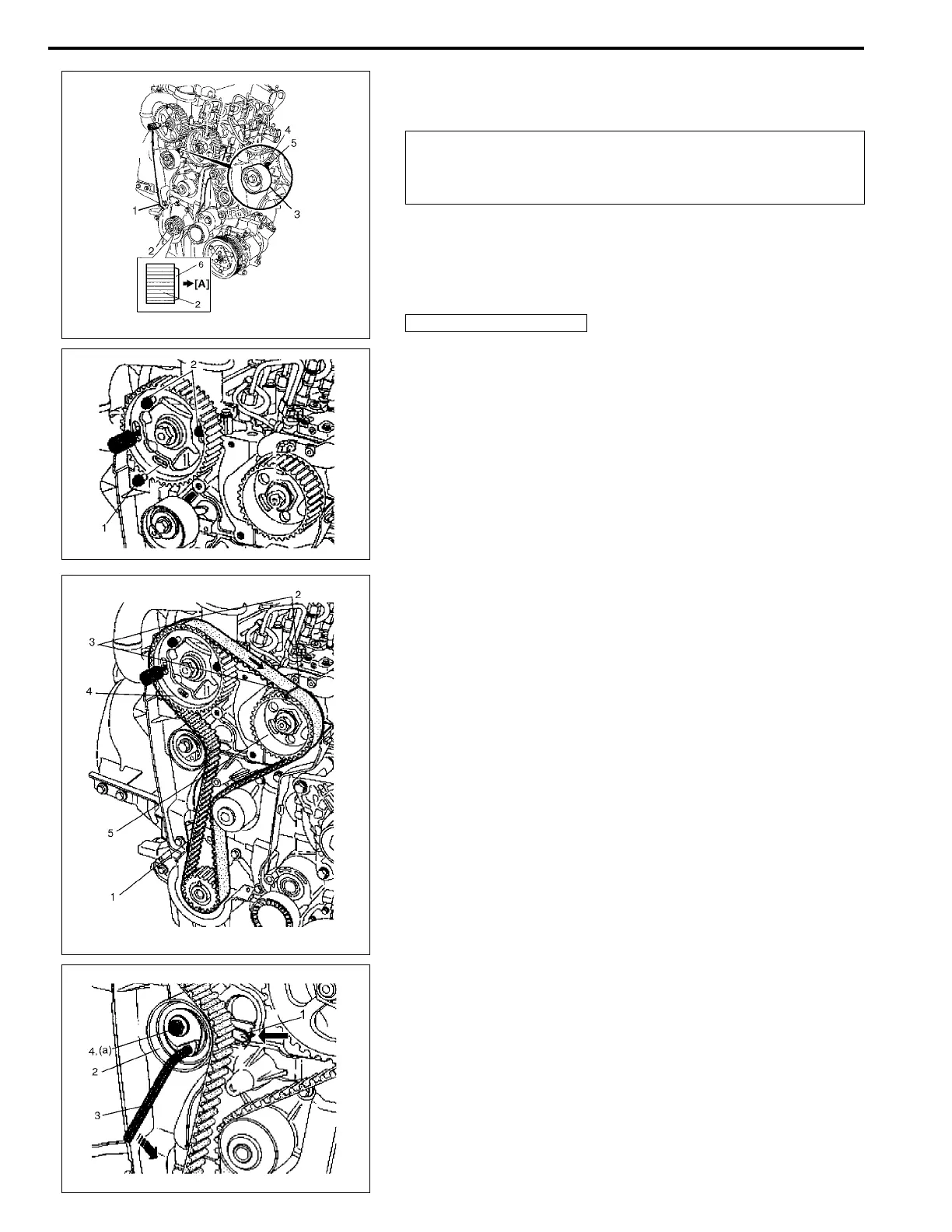

6A2-38 ENGINE MECHANICAL (K9K ENGINE)
3) Install timing belt inner cover (1), timing belt pulley (2) and
timing belt tensioner (3), if necessary.
4) Remove one camshaft pulley bolt (1), and loosen the other
two bolts (2) by one turn.
5) Install timing belt (1) with aligning its matching lines (2) with
matching marks (3) of camshaft gear ring (4) and injection
pump pulley (5).
6) Using hexagon wrench (3), align movable index (1) of timing
belt tensioner (2) to specified position as shown in figure by
turning timing belt tensioner counterclockwise. And then,
tighten timing belt tensioner bolt (4) to specified torque.
Tightening torque
Timing belt tensioner bolt (a): 27 N·m (2.7 kg-m, 19.5 lb-ft)
CAUTION:
Install timing belt pulley so that boss side (6) may come
to the gasket holder plate side.
NOTE:
Be sure to position peg (5) of timing belt tensioner (3) to
groove (4) of cylinder block precisely.
[A]: Gasket holder plate side
NOTE:
• Match arrow mark on timing belt with rotating direction
of camshaft.
• Timing belt has 18 teeth between its matching lines.
To Next Page
