ENGINE MECHANICAL (K9K ENGINE) 6A2-39

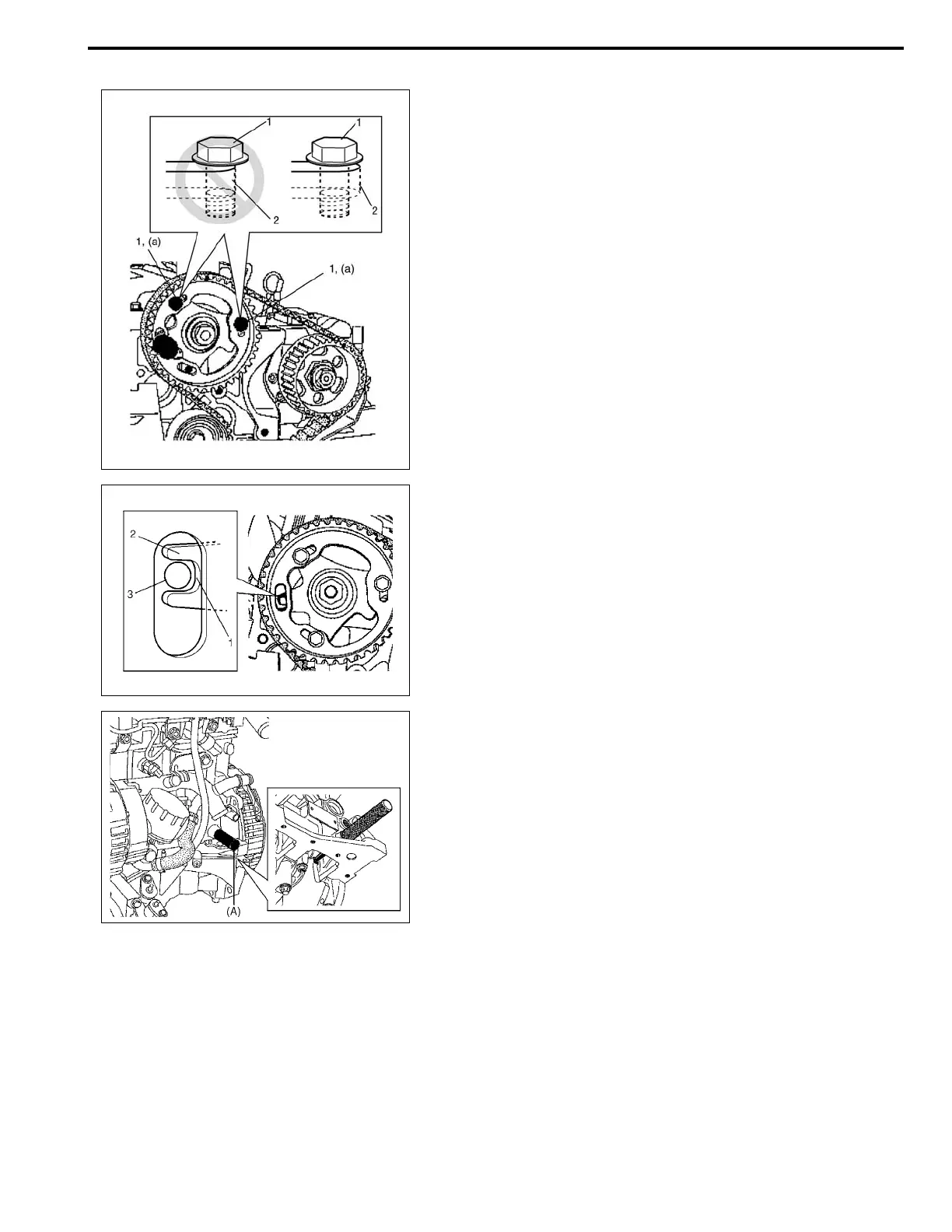

7) Check that camshaft pulley bolts (1) do not touch long slot-
ted end (2).
8) Install removed camshaft pulley bolt, and tighten all cam-
shaft pulley bolts to specified torque.
Tightening torque
Camshaft pulley bolt (a): 14 N·m (1.4 kg-m, 10.5 lb-ft)
9) Remove special tools (A) and (B).
10) Install crankshaft pulley bolt with washer temporarily.
11) Turn crankshaft two revolutions clockwise, and stop it just
before aligning slit (1) of camshaft pulley hub (2) matches
with hole (3) of cylinder head.
12) Insert special tool (A) into TDC pin hole as shown in figure.
Special tool
(A): 09919-58110
13) Turn crankshaft pulley clockwise until crankshaft touches
special tool (A).
