6A2-46 ENGINE MECHANICAL (K9K ENGINE)

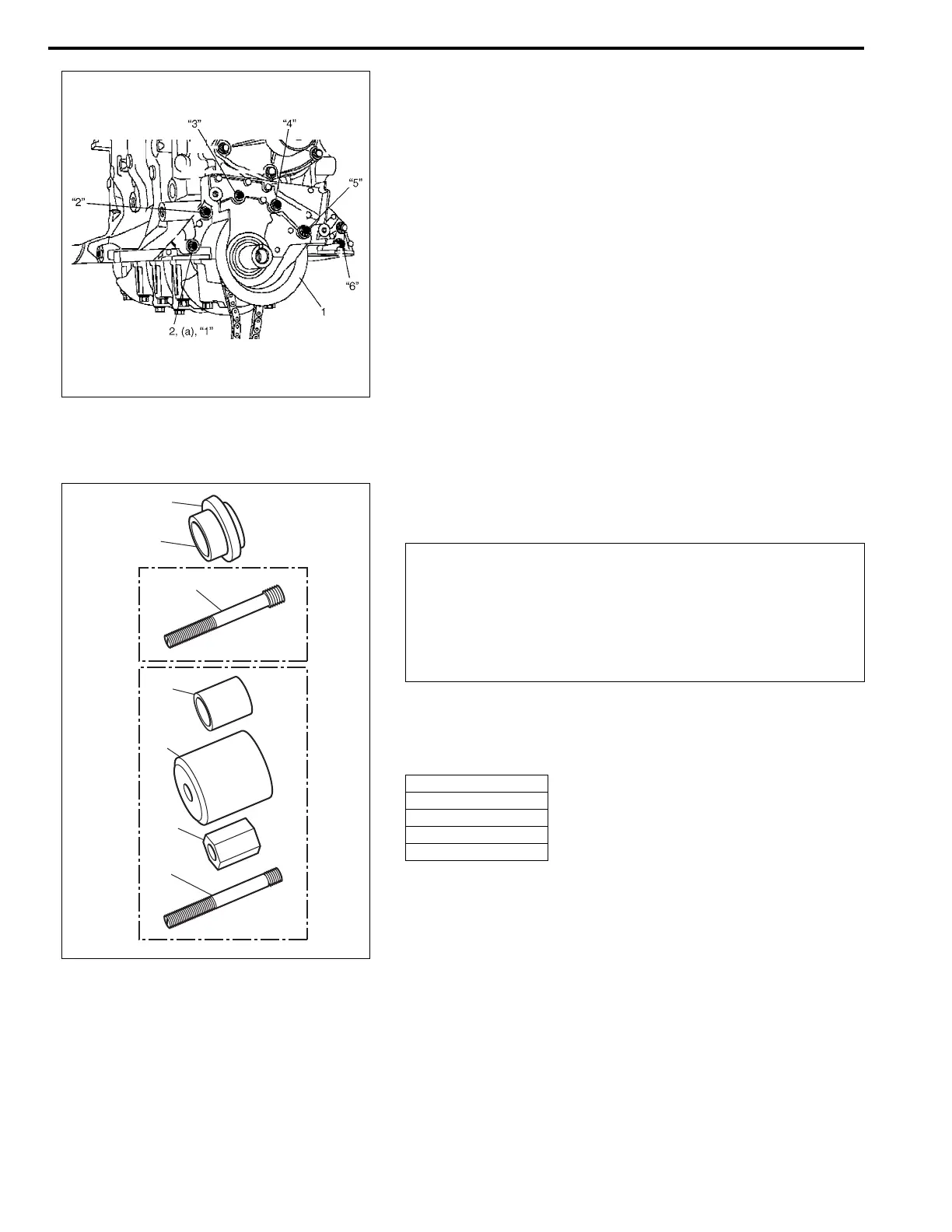

2) Install gasket holder plate (1) to cylinder block with new gas-
ket, and tighten gasket holder plate bolts as follows.
a) Tighten gasket holder plate bolts (“1” and “6”) to 11 N·m
(1.1 kg-m, 8.0 lb-ft).
b) Tighten gasket holder plate bolts (“2”, “3”, “4” and “5”) to 11
N·m (1.1 kg-m, 8.0 lb-ft).
Tightening torque
Gasket holder plate bolt (a):
Tighten 11 N·m (1.1 kg-m, 8.0 lb-ft) by the specified proce-
dure
3) Install upper oil pan and lower oil pan referring to “Oil Pan
and Oil Pump strainer Removal and Installation” in this sec-
tion.
4) Install new gasket holder plate oil seal (1) to gasket holder
plate using special tool as follows.
Special tool
(A): 09911-98130
(B): 09911-98140
CAUTION:
Do not touch oil seal (1) so that it is extremely fragile. Be
sure to install new oil seal using special tool (A), (B) and
protector (2) supplied with new oil seal. If it doesn’t fol-
low the above-mentioned service, it may cause oil leak
from oil seal.
3. Bolt
4. Spacer
5. Installer
6. Nut
7. Bolt (not necessary)
(A)
(B)
1
2
4
5
7
3
6
