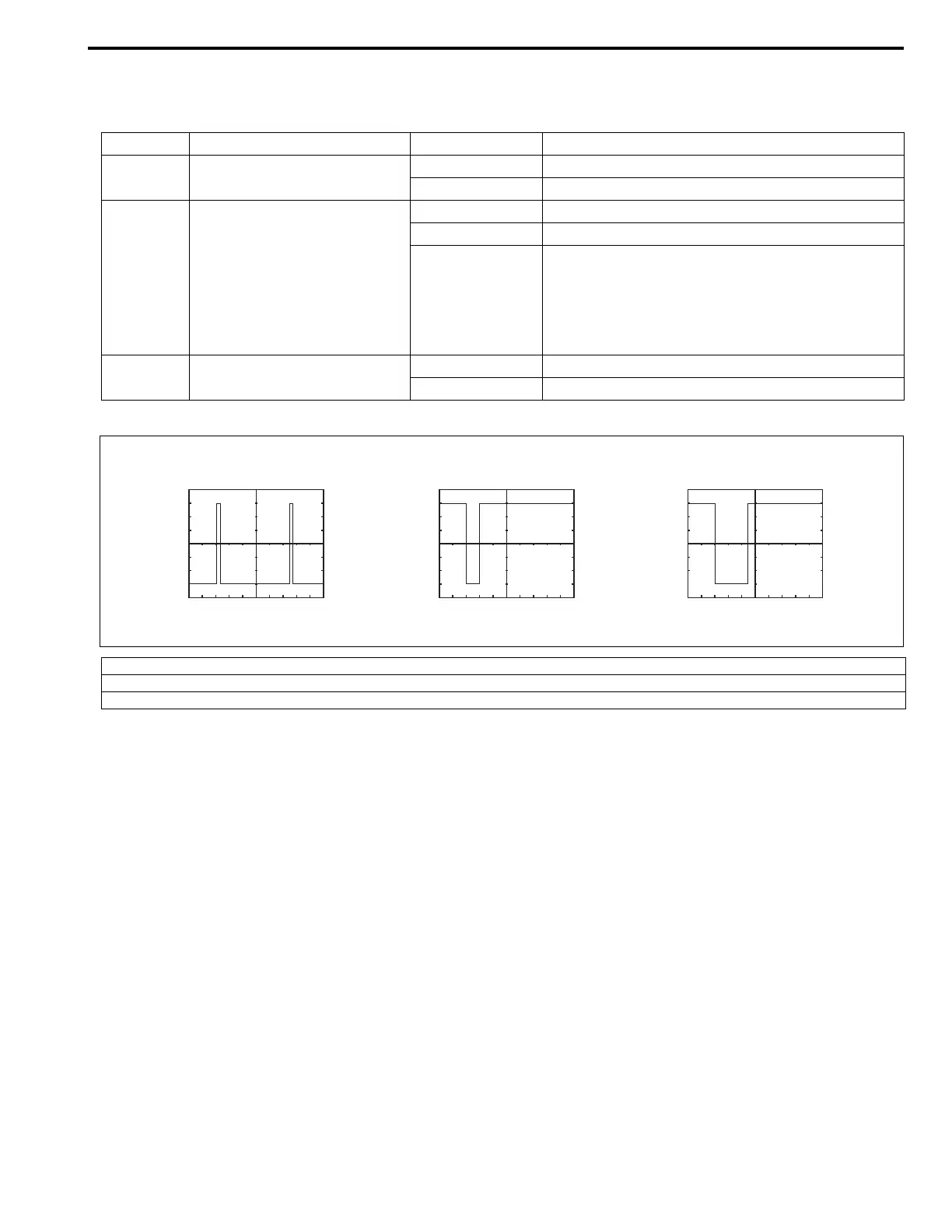

BODY ELECTRICAL SYSTEM 8-13
Keyless Entry System Circuit Check
M13 Engine Model
Terminal Circuit Specification Condition
2 Key remainder circuit
10 – 14 V Ignition key is in ignition switch.
0 – 1 V Ignition key is not in ignition switch.
4
Door switch & interior light
circuit
0 – 1 V Driver side, passenger side or back door is open.
10 – 14 V All doors are close.
Figure “A”
Fulfill the following conditions.
• All door is close.
• Interior light switch is middle position.
• 15 seconds after pushing “UNLOCK” button
on transmitter.
5 Hazard warning signal circuit
Figure “B” Push “LOCK” button on transmitter.
Figure “C” Push “UNLOCK” button on transmitter.
[A] [B] [C]
12V
0V
12V
0V
0.5 s/div 0.5 s/div
12V
0V
2ms/div
[A]: Figure “A”
[B]: Figure “B”
[C]: Figure “C”
