8-14 BODY ELECTRICAL SYSTEM
K9K Engine Model

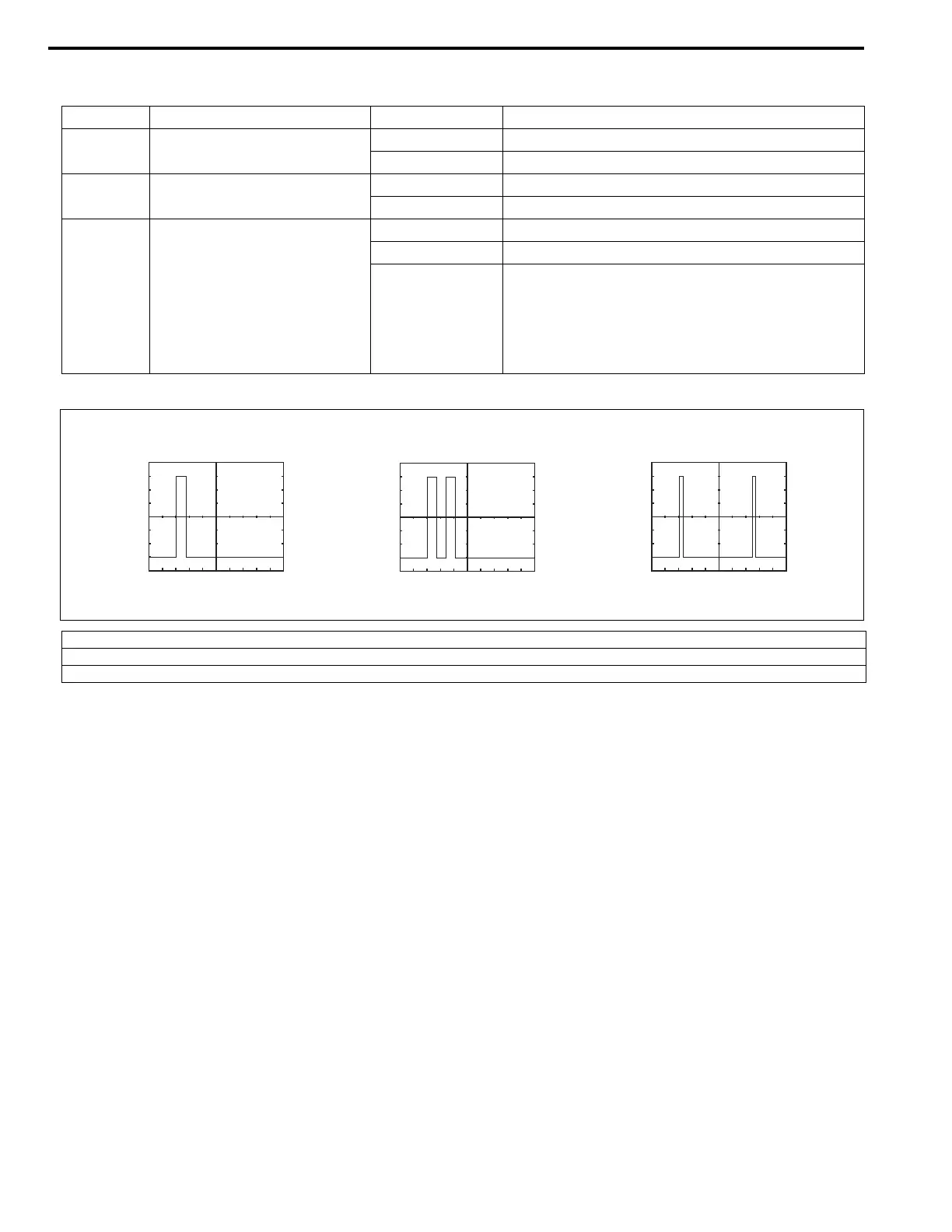

Terminal Circuit Specification Condition
7
Hazard waning signal circuit
(right side)
Figure “A” Push “LOCK” button on transmitter once.
Figure “B” Push “UNLOCK” button on transmitter once.
8
Hazard waning signal circuit
(left side)
Figure “A” Push “LOCK” button on transmitter once.
Figure “B” Push “UNLOCK” button on transmitter once.
15
Door switch & interior light
circuit
0 – 1 V Driver side, passenger side or back door is open.
10 – 14 V All doors are close.
Figure “C”
Fulfill the following conditions.
• All door is close.
• Interior light switch is middle position.
• 20 seconds after pushing
“UNLOCK” button on transmitter once
[A]
12V
0V
1s/div
[B]
12V
0V
1s/div
[C]
12V
0V
2ms/div
[A]: Figure “A”
[B]: Figure “B”
[C]: Figure “C”
