2-151
BEFORE DRIVING
80SS5-01E
Right hand drive vehicle
To readjust the light pattern by masking the
headlight for right hand traffic;
1) Copy the C and D templates as shown
later in this section.
2) Transfer the template to a self-adhesive
waterproof material and cut it out.
3) Position the cutout tape at the left dis-
tance from the center mark of the head-
light lens.
Refer to the dimensions in the following
illustrations.

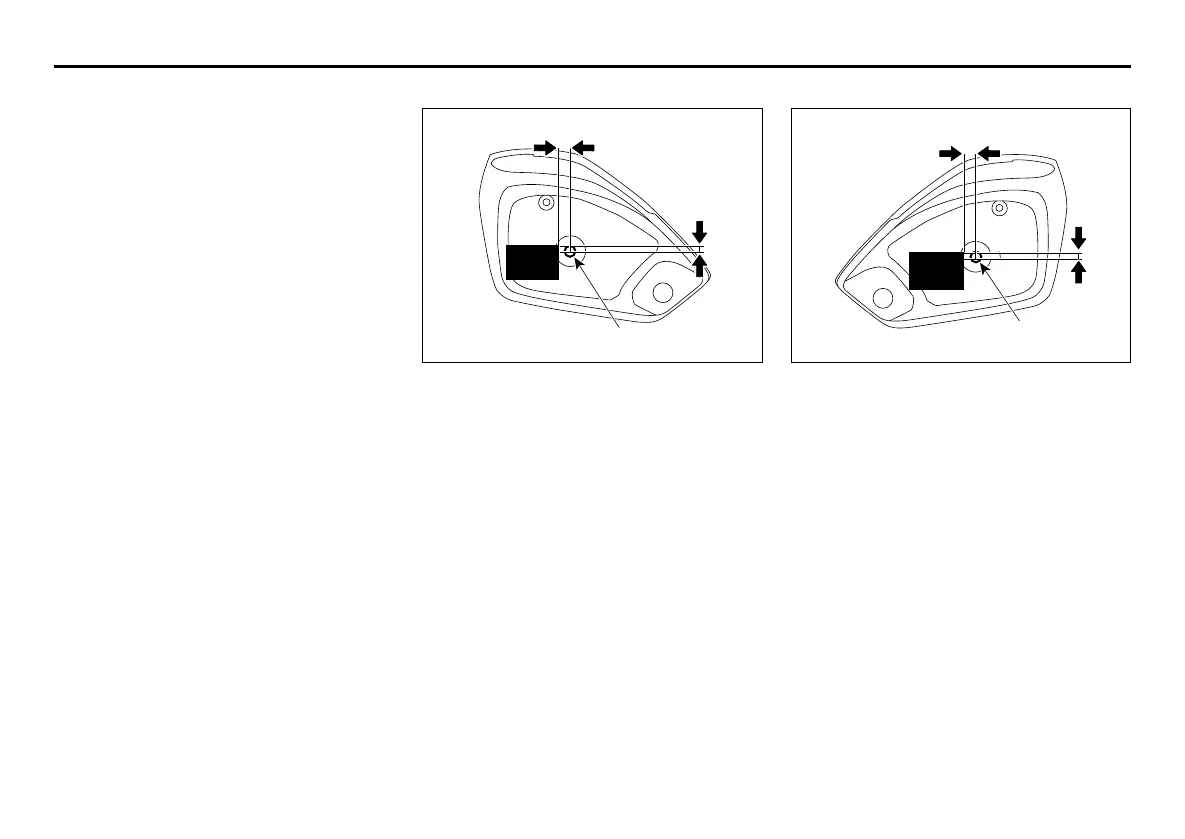

Right side headlight (C)
52RS013
(1) Horizontal line: approximately 16.7 mm
(2) Vertical line: approximately 5.8 mm
(3) Center mark (small projection on the
inner surface of the lens)
Left side headlight (D)
52RS014
(1) Horizontal line: approximately 16.7 mm
(2) Vertical line: approximately 5.8 mm
(3) Center mark (small projection on the
inner surface of the lens)
(2)
(1)
(3)
(2)
(1)
(3)
