3-111
OPERATING YOUR VEHICLE
80SS5-01E

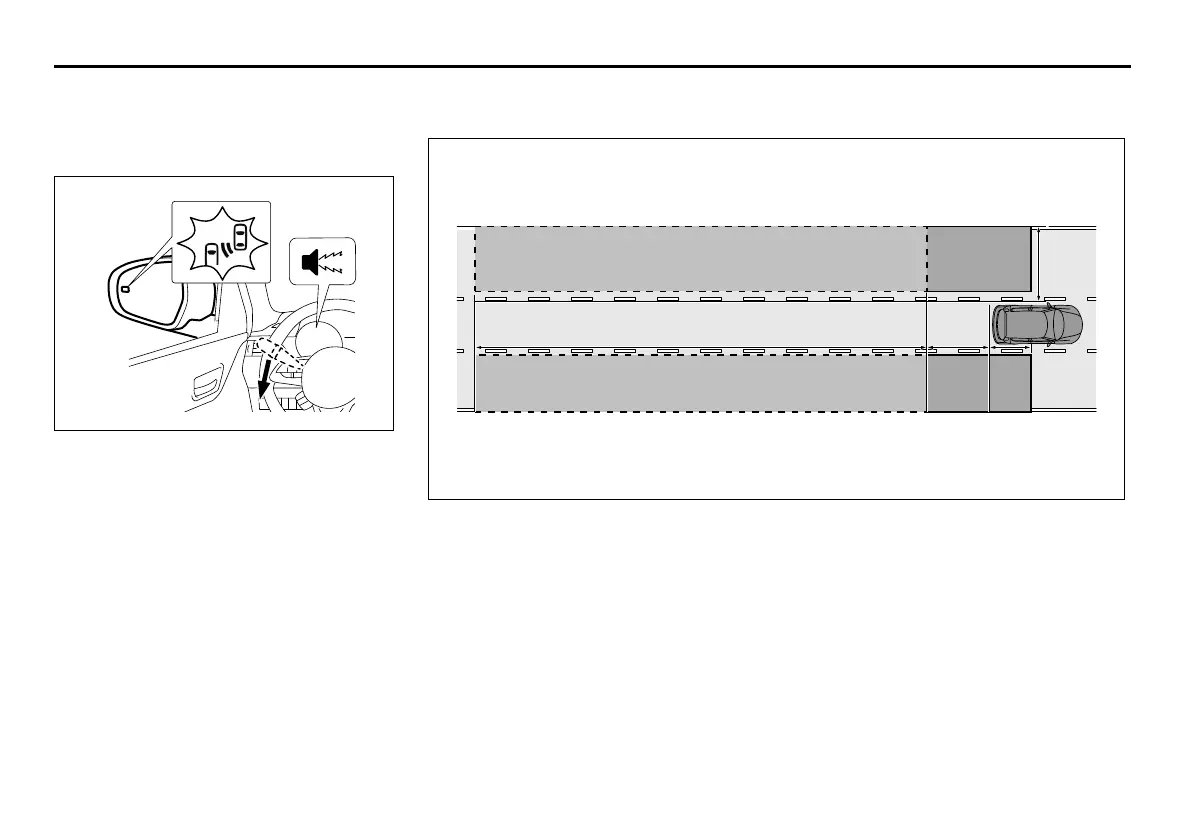

When the driver operates turn signal con-
trol lever to the detected side, an interior
buzzer sounds and the indicator in the out-
side rear view mirror blinks.
80SM002
Detecting area
Vehicle entering the following areas can be detected.
80SM024
(1) An area about 0.5 to 4.0 m (1.6 to 13.1 ft) from the vehicle both side
(2) An area between the rear bumper and near the driver’s seat
(3) An area about 4 m (13.1 ft) behind the rear bumper
(4) An area between about 4 and 50 m (13.1 and 164 ft) behind the rear bumper
NOTE:
The greater the difference in speed between your vehicle and the detected vehicle is, the
farther away the vehicle will be detected, causing the outside rear view mirror indicator to
illuminate or blink.
(1)(1)
(4) (3) (2)
To Next Page
