INSPECTION AND MAINTENANCE
80SS5-01E
60G111
NOTE:
Check that the fuse box always carries
spare fuses.

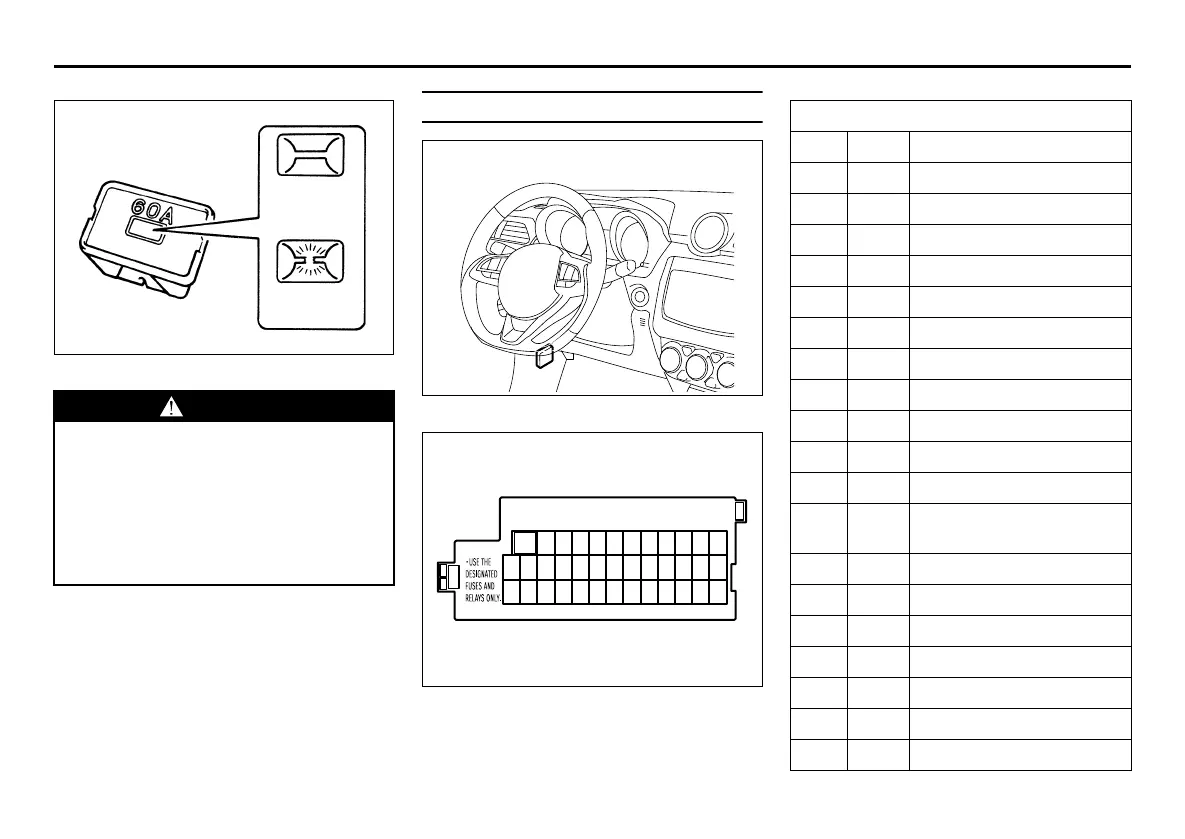

Fuses under dashboard
52RM70080
80P0185
WARNING
If the main fuse or a primary fuse
blows, have your vehicle inspected
by an authorized SUZUKI dealer.
Always use a genuine SUZUKI
replacement. Never use a substitute
such as a wire even for a temporary
repair, or extensive electrical damage
and a fire can result.
12
15
28
14
27
13
26
3
16
29
4
17
30
5
18
31
6
19
32
7
20
33
8
21
34
9
22
35
10
23
36
11
24
37
12
25
38
PRIMARY FUSE
(1)
30 A
Power window
(2)
10 A
Meter
(3)
15 A
Ignition coil
(4)
5 A
Ignition-1 signal 2
(5) 20 A Shift lever
(6) – Blank
(7) – Blank
(8)
20 A
Door lock
(9)
15 A
Steering lock
(10)
10 A
Hazard
(11) 5 A A-STOP controller
*1
(12)
10 A
Rear fog lamp
(13)
5 A
ABS/ESP
®
control mod-
ule
(14)
15 A
Seat heater
(15)
5 A
Ignition-1 signal 3
(16)
10 A
Dome light-2
(17)
5 A
Dome light
(18)
15 A
Radio
(19)
5 A
CONT
(20)
5 A
Key 2
