7-78
INSPECTION AND MAINTENANCE
80SS5-01E
52RM70360

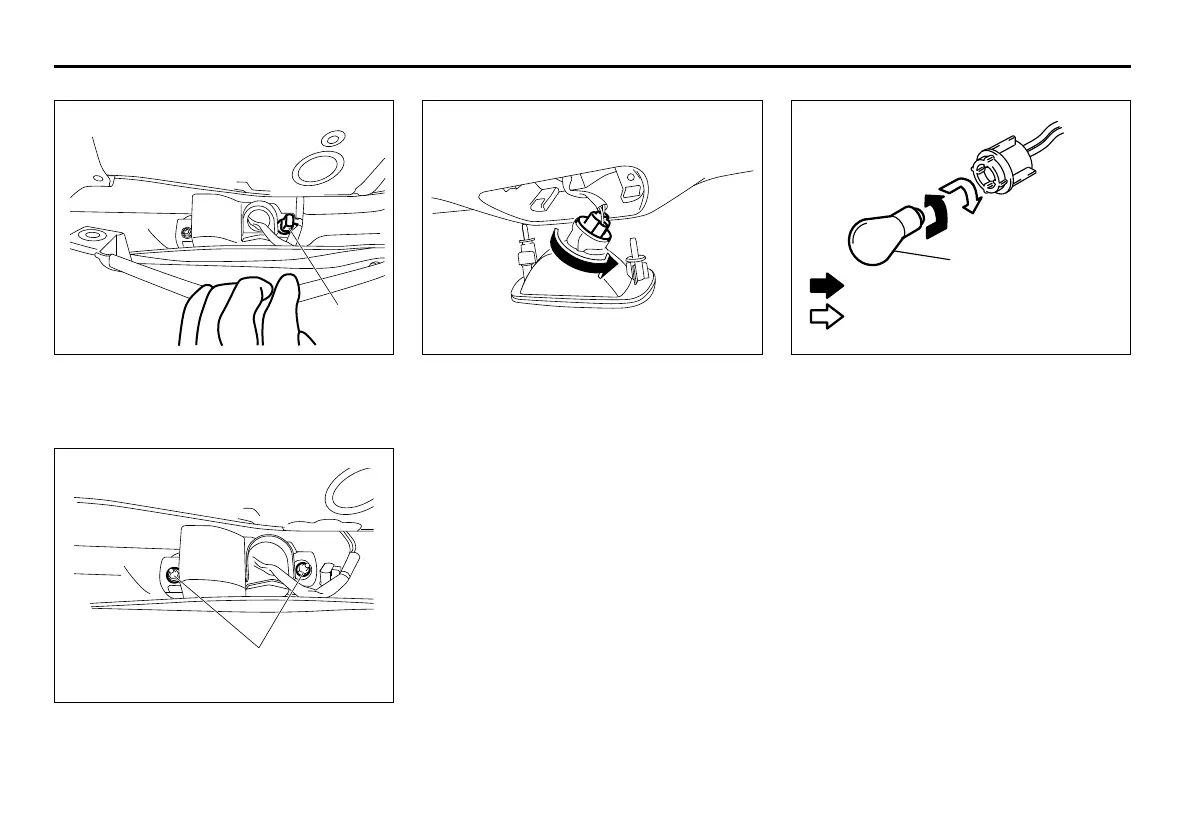

2) Turn rear bumper by hand as shown in
the illustration and remove harness
clamp (2).
52RM70370
3) Remove the nuts (3) and then push
rear fog light housing rearward.
52RM70380
4) Turn the bulb holder counterclockwise
and pull it out.
61MM0B084
(5) Removal
(6) Install
5) To remove the bulb of the rear fog light
(4) from bulb holder, push in the bulb
and turn it counterclockwise. To install a
new bulb, push it in and turn it clock-
wise.
(2)
EXAMPLE
(3)
EXAMPLE
EXAMPLE
(4)
(5)
(6)
EXAMPLE
