7-19
OTHER CONTROLS AND EQUIPMENT
69TB-01E

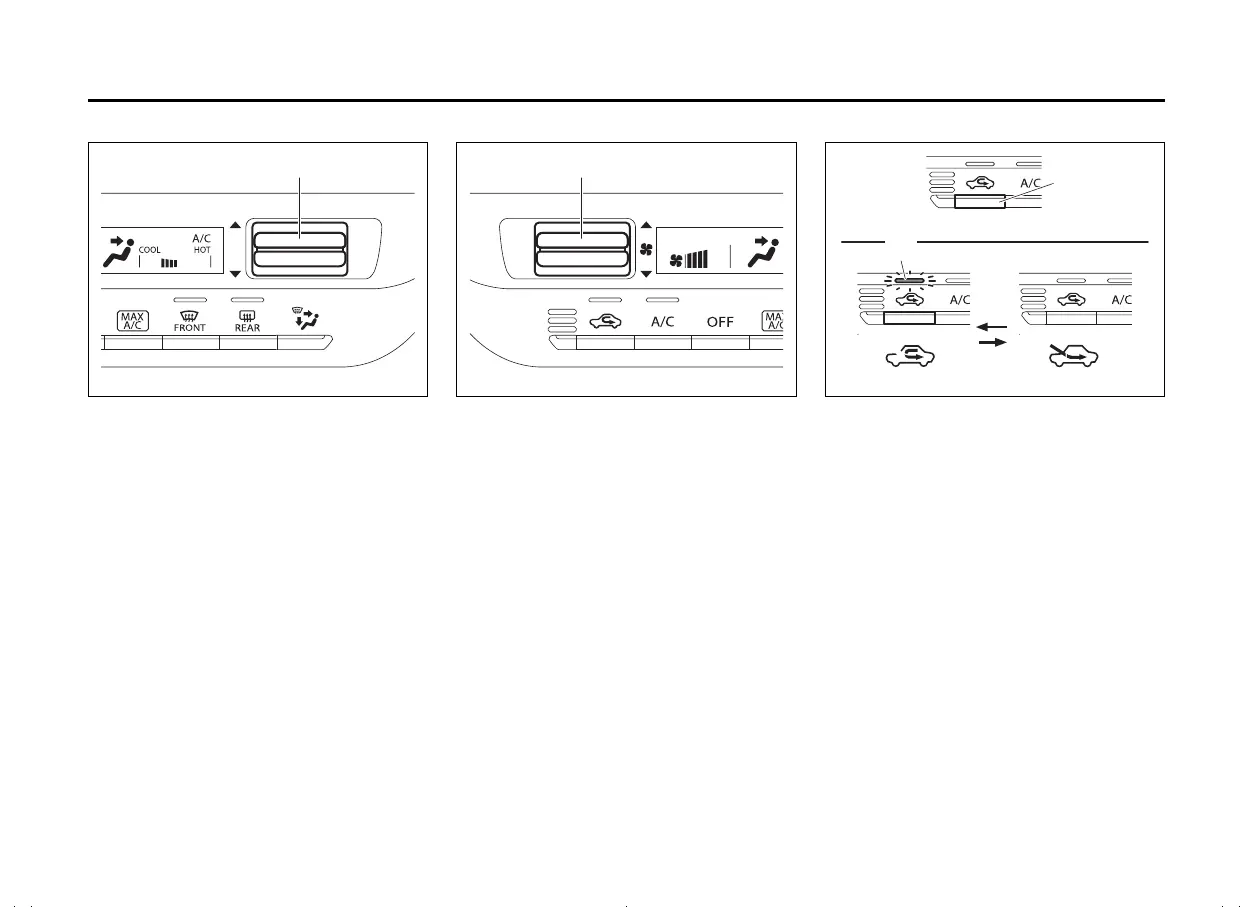

Temperature selector (1)
69T070270
Push upper part or lower part of the tem-
perature selector (1) to adjust the tempera-
ture.
To down a temperature, push upper part of
the temperature selector. To up a tempera-
ture, push lower part of the temperature
selector.
Blower speed selector (2)
69T070280
The blower speed selector (2) is used to
turn on the blower and to select blower
speed.
To down the blower speed, push upper
part of the temperature selector. To up the
blower speed, push lower part of the tem-
perature selector.
Air intake selector (3)
55T070160
Push the air intake selector (3) to change
between the following modes.
(b)(a)
(3)
(10)
