9-30
INSPECTION AND MAINTENANCE
69TB-01E
69T090060

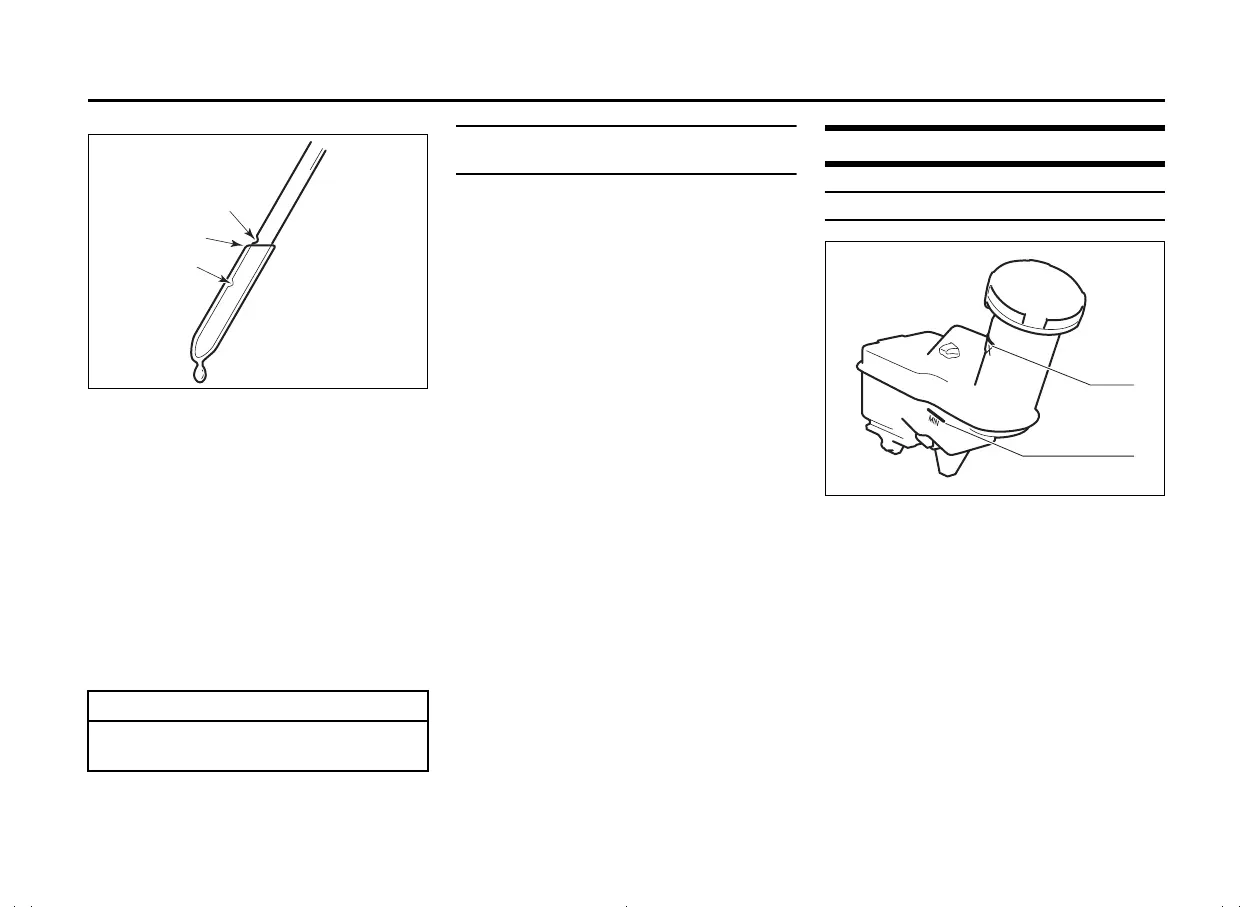

(1) FULL HOT
(2) LOW HOT
(3) The lowest point = Fluid level
6) The handle of the CVT fluid dipstick is
colored orange for easy identification.
Remove the dipstick, wipe the oil off
with a clean cloth and push it back in
until the cap seats. Then pull out the
dipstick.
7) Check both sides of the dipstick, and
read the lowest level. The fluid level
should be between the two marks in “H”
(hot) range on the dipstick.
Deterioration checking / Changing
oil
Since special procedures, materials and
tools are required to check the deteriora-
tion of CVT oil or change, ask an autho-
rized SUZUKI dealer or a qualified
workshop for this job.
Brakes
Brake fluid
52RM70020
Check the brake fluid level by looking at
the reservoir in the engine compartment.
Check that the fluid level is between “MAX”
and “MIN” lines.
NOTICE
After checking or adding oil, be sure
to insert the dipstick securely.
(1)
(3)
(2)
H
MIN
MAX
