9-34
INSPECTION AND MAINTENANCE
69TB-01E

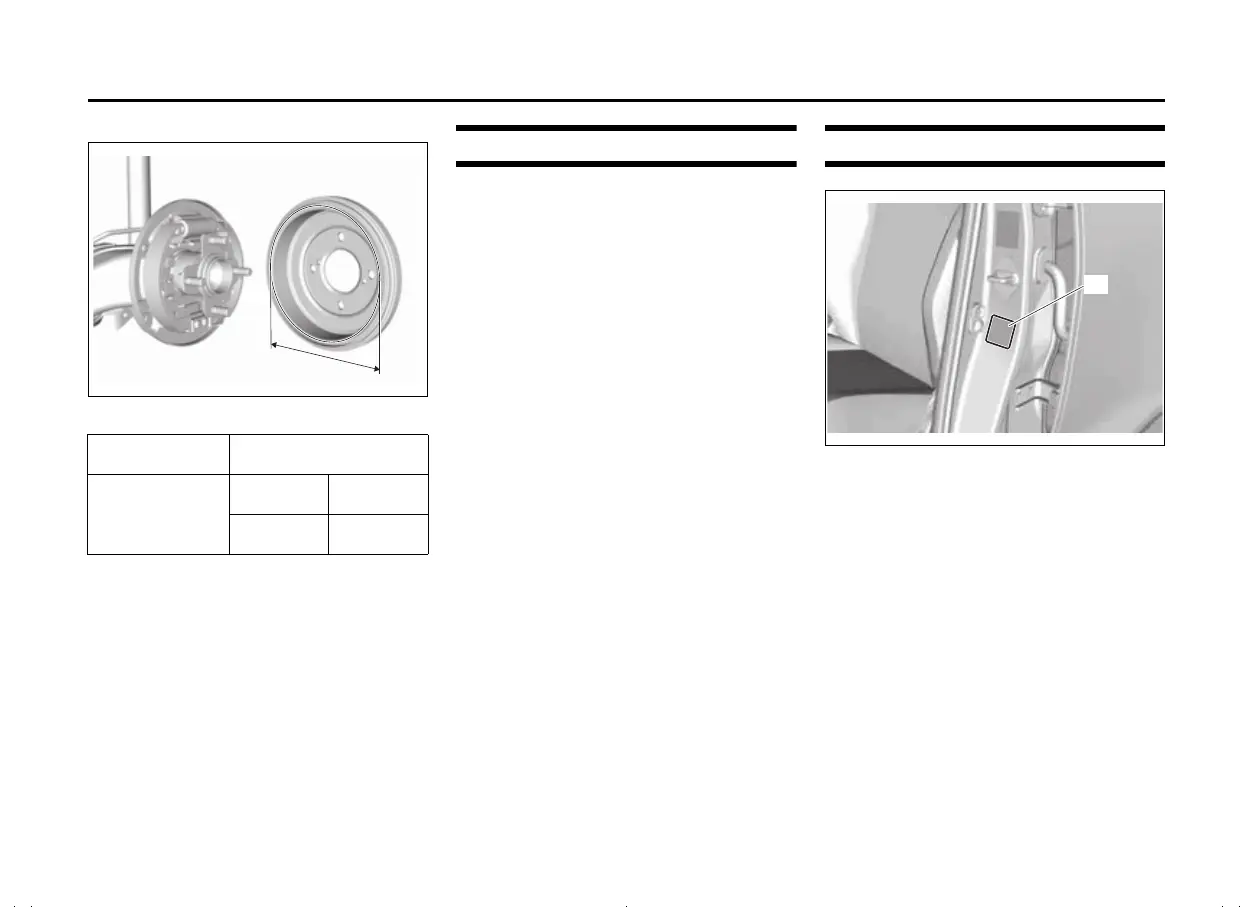

Brake drum
69T090090
If the measured thickness or inner diame-
ter of the most worn part falls below or
exceeds the value indicated above, the
parts should be replaced with a new one.
The measurement involves disassembling
each brake and requires the use of a
micrometer or caliper, which must be done
according to the instructions described in
the relevant service manual or available
from the relevant repair information site.
Steering wheel
Check that the steering wheel turns easily
and smoothly without rattling by turning it
all the way to the right and to the left while
driving very slowly in an open area. If you
find anything else to be wrong, an inspec-
tion must be performed by an authorized
SUZUKI dealer or a qualified workshop.
Tyres
69T090100
The front and rear tyre pressure specifica-
tions are listed in the tyre information label
(1). Both front and rear tyres should have
the specified tyre pressure.
NOTE:
The tyre inflation pressure will change due
to changes in atmospheric pressure, tem-
perature or tyre temperature when driving.
To reduce the chance that the low tyre
pressure warning light will come on due to
normal changes in temperature and atmo-
spheric pressure, it is important to check
and adjust the tyre pressures when the
tyres are cold. If you check tyres after driv-
ing, they are warm. Even if the tyre pres-
sure seems to be good in this condition, it
could fall below the specified pressure
Brake location
Maximum inner
diameter “d”
Rear wheels
2WD
181 mm
(7.13 in.)
4WD
222 mm
(8.74 in.)
(1)
