9-32
INSPECTION AND MAINTENANCE
69TB-01E
Brake pedal
Check brake pedal stroke. If the stroke is
so large, have the brake system inspected
by an authorized SUZUKI dealer or a qual-
ified workshop. If you doubt the brake
pedal is at its normal height, check it as fol-
lows:
59RN09400

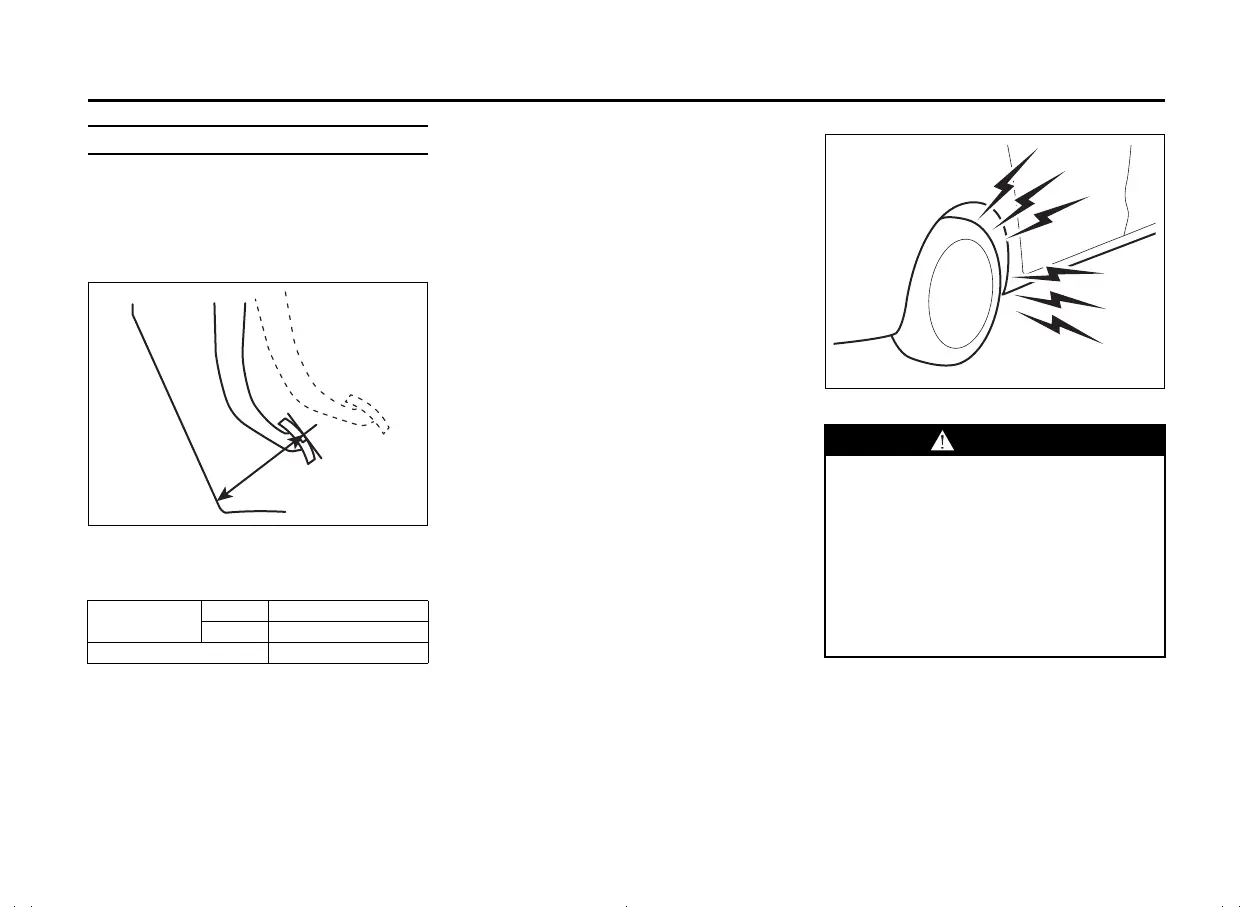

Minimum distance between brake pedal
and floor carpet “a”
With the engine running, measure the dis-
tance between the brake pedal and floor
carpet when the pedal is depressed with
approximately 30 kg (66 lbs) of force. The
minimum distance required is as specified.
Since your vehicle’s brake system is self-
adjusting, there is no need for pedal
adjustment.
If the pedal to floor carpet distance as
measured above is less than the minimum
distance required, have your vehicle
inspected by an authorized SUZUKI dealer
or a qualified workshop.
NOTE:
• When measuring the distance between
the brake pedal and floor wall, be sure
not to include the floor mat or rubber on
the floor carpet in your measurement.
• Measure the distance at the brake
pedal’s side facing toward the driver’s
door.
52RM70500
LHD
MT 68 mm (2.7 in.)
CVT 59 mm (2.3 in.)
RHD 53 mm (2.1 in.)
WARNING
If the brake pad lining becomes worn
and it has reached its minimum thick-
ness, squealing noise sounds during
braking.
If you hear this noise, have the vehi-
cle inspected immediately by an
authorized SUZUKI dealer or a quali-
fied workshop.
Continued driving with this condition
can cause an accident.
To Next Page
