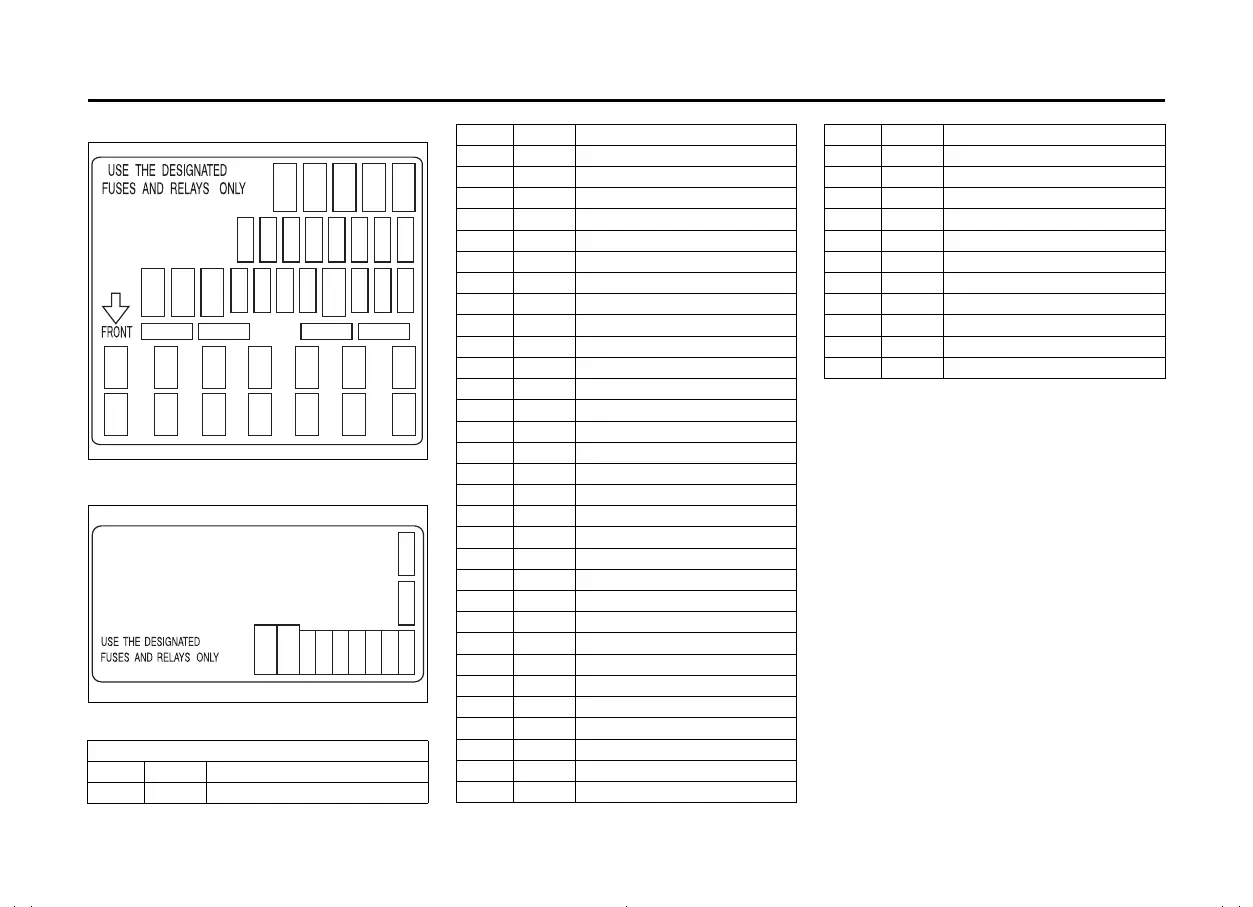

Relay box
69T090150
Sub relay box
69T090160
*1: Model with CVT
The main fuse, primary fuses and some of
the individual fuses are located in the
engine compartment. If the main fuse
blows, no electrical component will func-
tion. If a primary fuse blows, no electrical
component in the corresponding load
group will function. When replacing the
main fuse, a primary fuse or an individual
fuse, use a genuine SUZUKI replacement
parts or equivalent for individual fuses.
To remove a fuse, use the fuse puller pro-
vided in the fuse box. The amperage of
each fuse is shown in the back of the fuse
box cover.
MAIN FUSE / PRIMARY FUSE
(1)
175 A
FL1
(2)
120 A
FL2
(8)
(13)
(14)
(15)
(16)
(17)
(18)
(19)
(20)
(21)
(22)
(23)
(25)
(26)
(27)
(28)
(29)
(30)
(31)
(24)
(9)
(10)
(11)
(12)
(32) (33) (34) (35)
(38)
(39)
(42)
(41)
(40)
(43)
(44)
(45)
(46)
(37) (36)
(3)
100 A
FL3
(4)
80 A
FL4
(5)
100 A
FL5
(6)
60 A
FL6
(7)
100 A
FL7
(8)
30 A
Starting motor
(9)
40 A
Blower fan
(10) – Blank
(11)
40 A
ABS motor
(12)
40 A
Ignition switch
(13)
30 A
B/U
(14)
30 A
Sub battery
(15) – Blank
(16) 10 A DMS
(17)
25 A
ABS control module
(18) – Blank
(19) – Blank
(20) – Blank
(21) 40 A Radiator fan
(22) – Blank
(23) – Blank
(24) – Blank
(25) – Blank
(26) – Blank
(27)
10 A
Air compressor
(28)
50 A
Ignition switch 2
(29) 15 A Transmission
*1
(30)
20 A
FI
(31) – Blank
(32)
10 A
Radio2
(33)
5 A
Dome light-3
(34)
5 A
Starting Signal
(35) – Blank
(36)
15 A
Headlight high (Right)
(37)
15 A
Headlight high (Left)
(38)
30 A
EWP
(39) – Blank
(40) – Blank
(41)
30 A
DCDC
(42)
15 A
Headlight (Left)
(43)
15 A
Headlight (Right)
(44)
25 A
Headlight high
(45) – Blank
(46) – Blank
