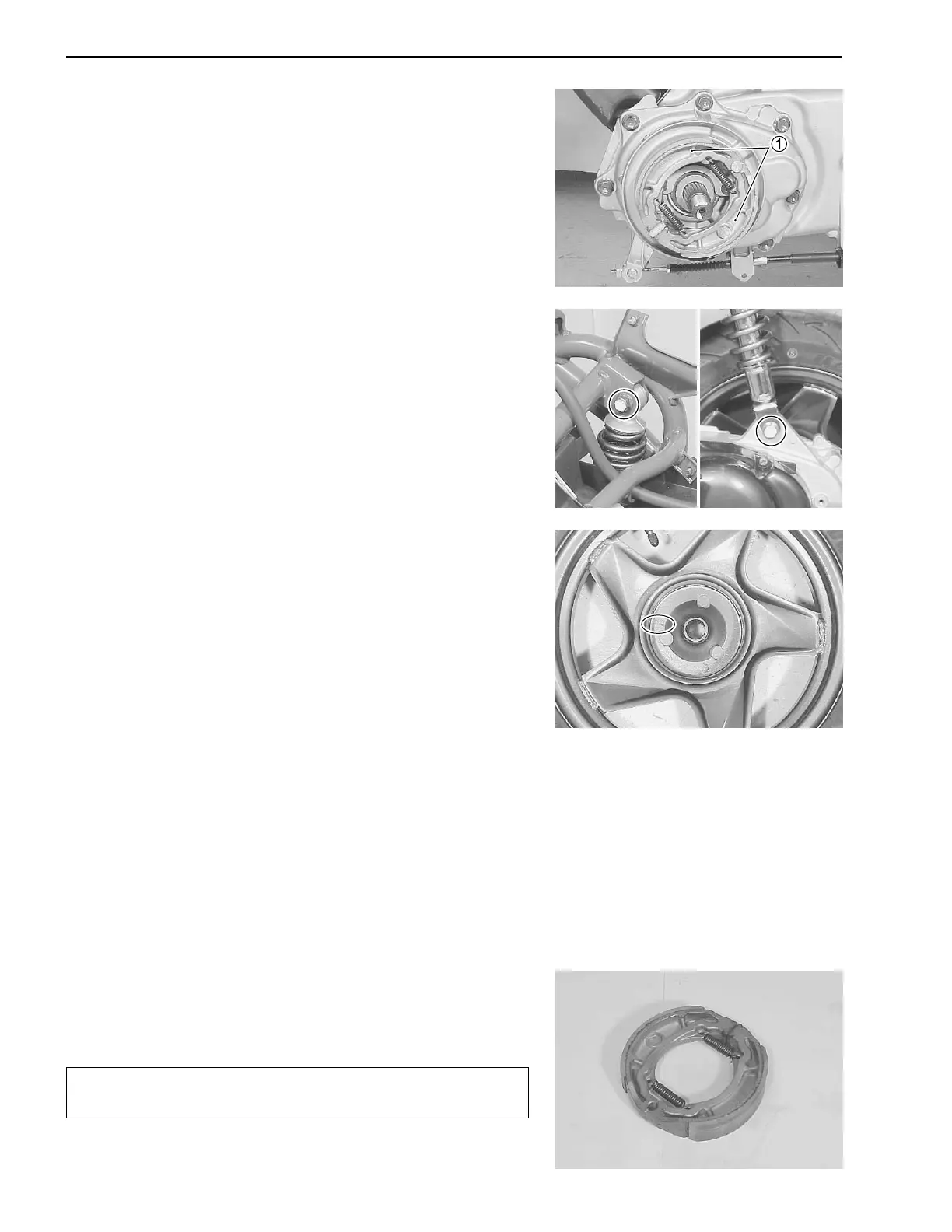

5-40 CHASSIS
• Remove the brake shoes 1.
INSPECTION
BRAKE DRUM
Inspect the brake drum and measure the brake drum I.D. to de-
termine the extent of wear. If the measurement exceeds the ser-
vice limit, replace the brake drum with a new one. The value of
this limit is indicated inside the drum.
4 Brake drum I.D.
Service Limit: 110.7 mm
BRAKE SHOE
Inspect the brake shoes for wear or damage. If it is worn or dam-
aged, replace the brake shoes as a set.
5
Replace the brake shoes as a set, otherwise braking per-
formance will be adversely affected.
REAR SHOCK ABSORBER
• Remove the frame covers. (75-7)
• Remove the air cleaner box. (74-12)
• Remove the rear shock absorber.
TIRE...................................................................72-11
