Suzumar DS-360 - Assembly for DS-270;310 RIB, DS-310;350;420 FD; Assembly for DS-220;260;310;350;420 VIB

2
bar
bar
DS-290/320/360/390/420
bar
bar
2-6
2.5.9 Inflate the keel to pressure 0.35 bar.
2.5.10 Put oars onto the lock pin.
2.5.11 Check the working pressure on every valve with a pressure gauge and
close valve caps.

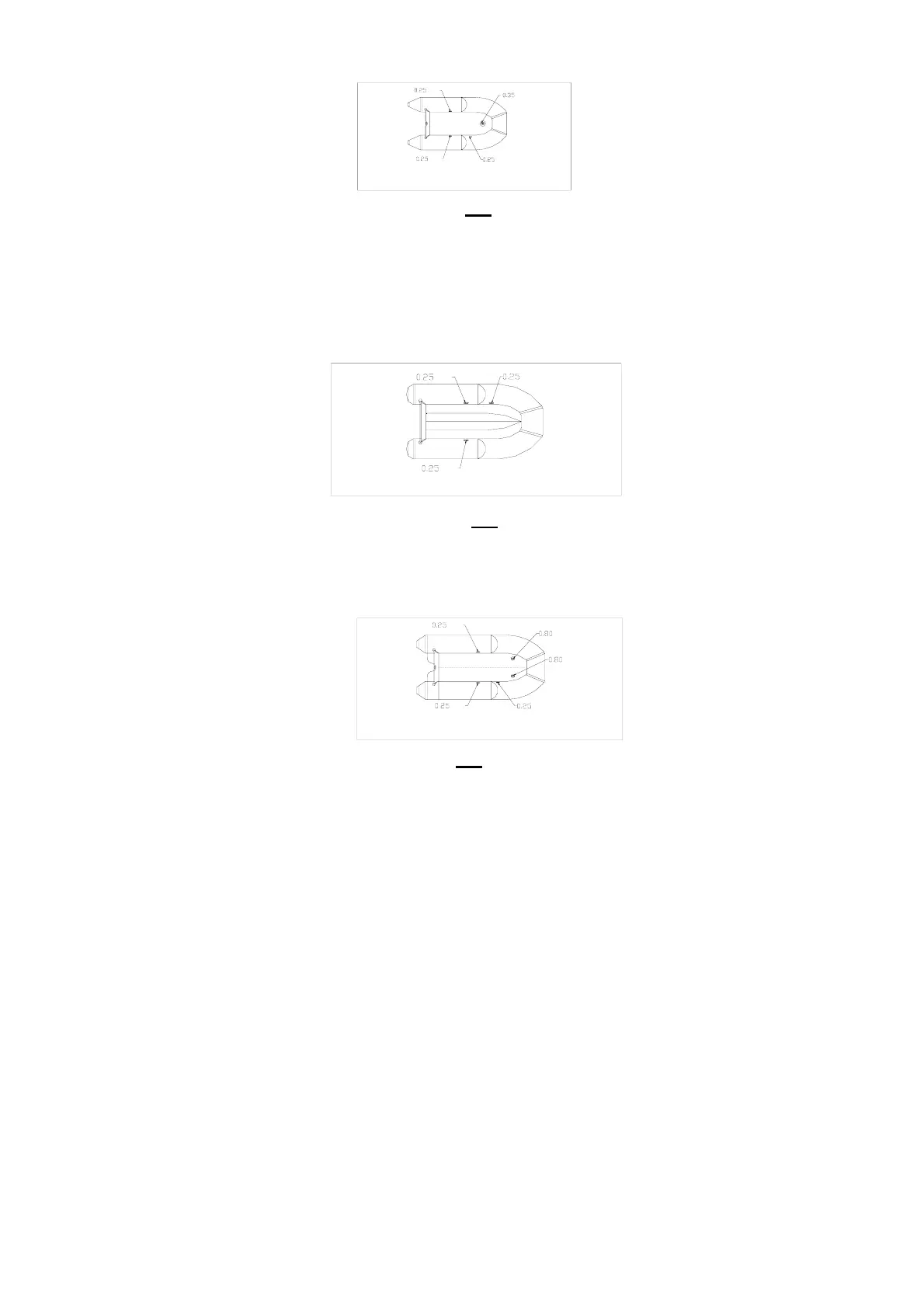

2.6 Assembly for DS-270/310RIB, DS-310/350/420FD
2.6.1 Install the GRP seat.
2.6.2 Finish inflating the air chambers on tube to pressure 0.25 bar.
bar
bar
DS-270/310 RIB,DS-310/350/420FD
bar
2-7
2.6.3 Put oars onto the lock pin.
2.6.4 Check the working pressure on every valve with a pressure gauge and
close valve caps.
2.6.5 For DS-310/350/420FD, a jockey seat can be installed as an option.
2.7 Assembly for DS-220/260/310/350/420VIB
bar
bar
DS-220/260/310/350/420 VIB
bar
bar
bar
2-8
2.7.1 Install the wooden seat.
2.7.2 Finish inflating the air chambers on tube and or seat to pressure 0.25
bar.
2.7.3 Finish inflating the inflatable floor to 0.80 bar.(Ref 1.4.3-B)
2.7.4 Put oars onto the lock pin.
