SV2000 WV205 - Page 12

1-5-2 E6161DC
[2] Front Assembly
(L-2)
(L-1)
(L-1)

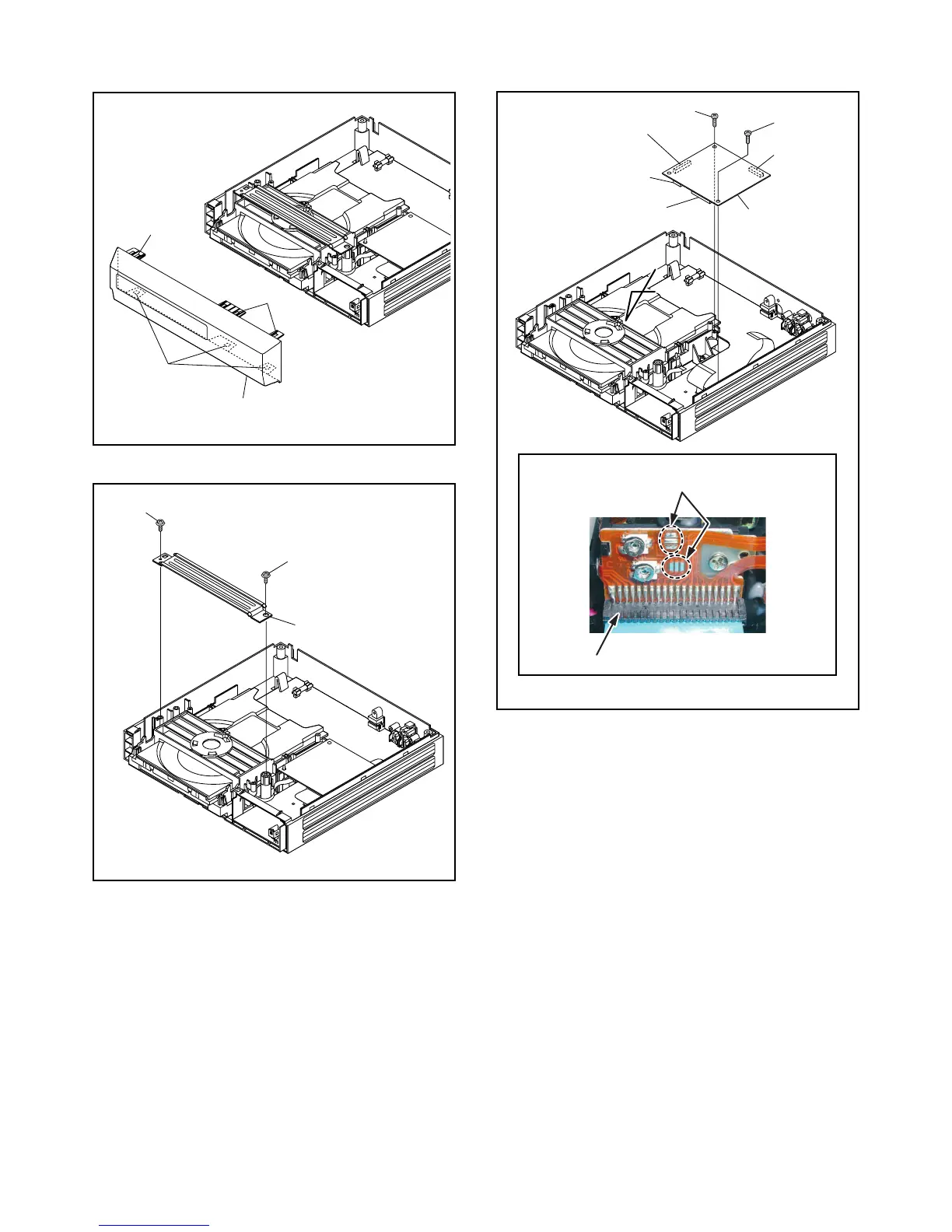

Fig. D2
[3] Reinforce Plate
(S-2)
(S-2)
Fig. D3
[4] DVD Main
CBA Unit
(S-3B)
(S-3A)
CN201
CN301
CN401
CN601
A
Fig. D4
View for A
Short the three short lands by soldering.
(Either of two places.)
Connector
