MSS Connecting
MS-230 Multimedia Speaker System can be connected to virtually any audio source: DVD/CD, PC
sound card etc. (see connection diagram below, Fig. 3) and also an active subwoofer if necessary.
• Before making any connections, make sure that the speaker system is unplugged. Then connect
the speakers to each other: insert the positive wire of the audio cable into the red jack «+» and the
negative wire into the white jack «-» of the connection terminals (see Connection diagram above).
Start with the passive speaker, then connect the cable to the active one.
• Connect the RCA jacks of the signal cable to the L and R terminals k, then connect the mini-jack
(Ø 3,5 mm) of the included 2RCA to 3.5 mm mini-jack signal cable to the output of the PC sound card
or audio output of another sound source. An active subwoofer can be connected (see connection
diagram Fig. 3).
Notes:
• To connect the speaker system to a DVD/CD-player, use a 2RCA to 2RCA stereo signal
cable (not included) or a mini-jack to 2RCA adapter (not included).
• Check the reliable Нxation of wires in the connection terminals, polarity of connection and
absence of contact between the bared wires and the metal parts of the hardware.
• Please pay special attention to reliability of cables Нxation in the jacks, otherwise consi-
derable noise can be observed during music reproduction.
• Insert the plug of the power cord l into a mains socket. Adjust the volume level to its minimum
by turning the VOLUME control knob g counterclockwise until it stops.
• Switch on the device (e, ON position), the power LED d lights up.
• Switch on the audio source.

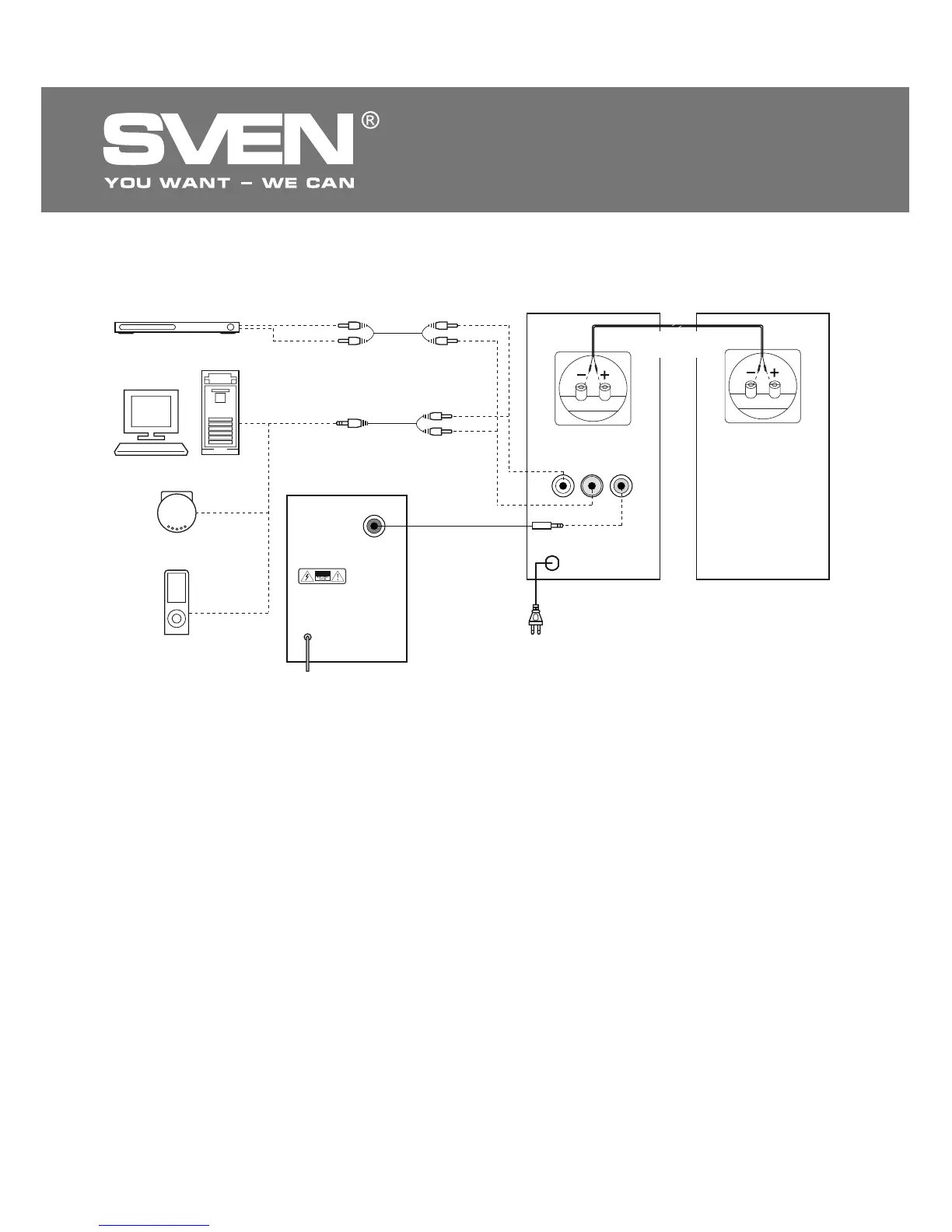

Fig. 3. Connection diagram
