Speaker system description
a Indicator.
b DC 9V-1.5A: charger connecting, the laptop/PC.
c USB: USB-ash card slot.
d POWER: power button.
e MICRO SD: micro SD card slot.
f AUX: 3.5 mm mini-jack for audio signal connecting (phone, MP3 player, etc.).
g MIC 1: 6.3 mm jack microphone jack.
h MIC 2: 6.3 mm jack microphone jack.
i MENU: Connecting an additional speaker (long pressing); Bass/Treble/Echo settings.
j
: switch lighitng mode (short pressing); turning on/o the backlight (long pressing).
k
: previous track (short pressing in Player and Bluetooth mode); Navigation on the track
(long pressing in Player and Bluetooth mode); Previous station (short pressing in Radio mode);
Search fora station with a lower frequency (long pressing in Radio mode).
l - VOLUME +: volume control knob.
m Display.
n NFC.
o MODE: switching modes button: Bluetooth/Radio/Player/LINE IN (short pressing); ON/OFF
theservice signals (long pressing).

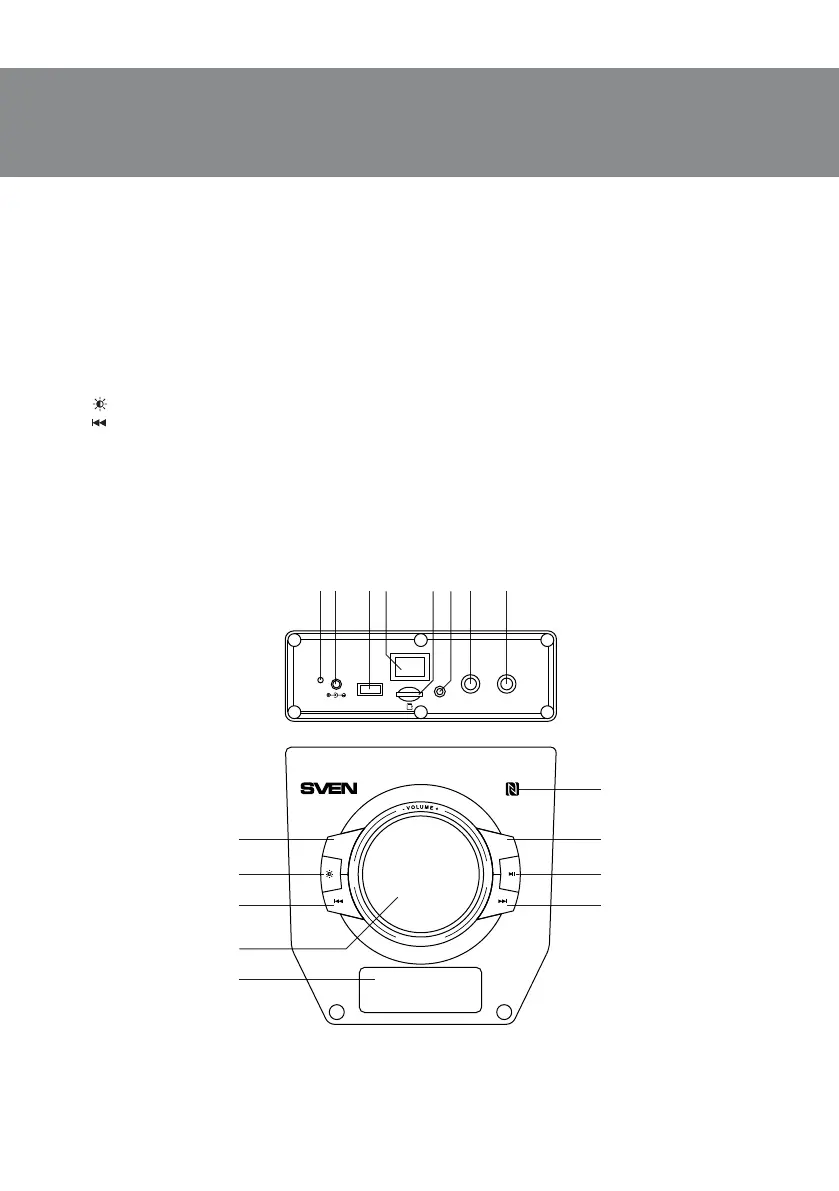

Fig.1.
i
l
k
m
j
n
o
p
q
dab c efg h
POWER
MIC 2MIC 1AUXUSB
MICRO SD
DC9V-1.5A
MODE
MENU
