Sven PS-950 - Connection and Operation; Charging the Speaker Battery; Operation Modes

ENG
8
Party Speaker System

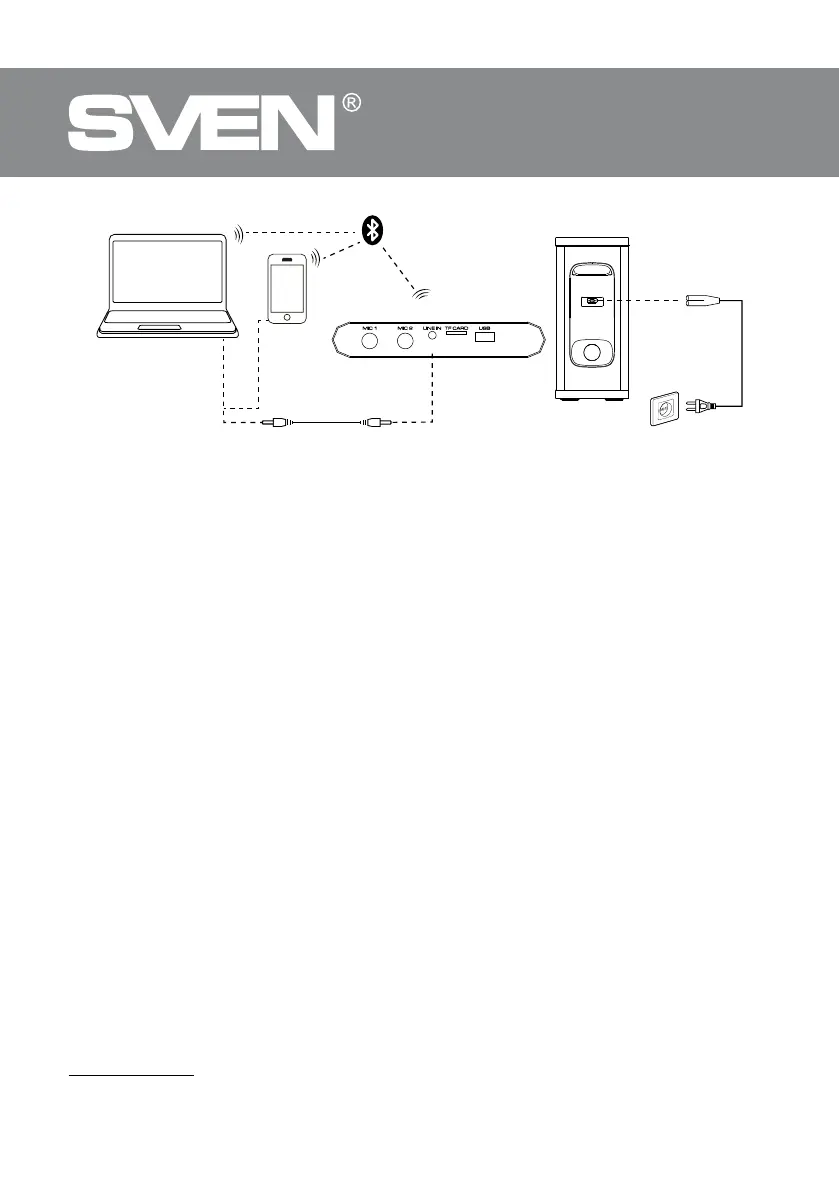

Fig. 3. Connection diagram
CONNECTION AND OPERATION
Attention! The battery must be fully charged before use.
Charging the speaker battery
• Connect the speaker to the charger using a power cable. When charging, the indicator lights
up red. The indicator lights up green if the battery is charged.
• The speaker uses the battery as an integral part of the equipment, so do not attempt to
remove or replace it as this may void the warranty or damage the unit itself.
OPERATION MODES
Bluetooth mode
• Wireless data transfer via the Bluetooth protocol enables to connect speaker system
to compatible devises. Maximum radius of action of data transfer is 10 m. Such obsta-
cles as walls orother electronic devices can interfere with the signal transfer.
• Press the "MODE" button (2) on the remote control, or the BT button i on the device panel
until "bLUE" ashes on the display.
• It is necessary to select the search mode of devices with Bluetooth on a signal source (tele-
phone, notebook, smartphone, etc.). “SVEN PS-950”, massage will be displayed onthescreen
whichis to be connected to*.
• When connection is successful, there will be a short beep and the indication of the search
mode on speaker system is over**.
Connecting to the speaker via Bluetooth using NFC
NFС works only with Android devices (version 4.1 and later).
To connect the speaker to a smartphone, the smartphone must be equipped with an NFC
chip.
It must be enabled in the wireless settings.
• Turn on the speaker system Bluetooth mode.
• Hold the phone close to the NFC mark u on the top panel and wait for a short beep to con-
rm a successful speaker connection.
Note. You need to allow connections on the phone (depending on the phone’s operating system).
Mobile
device
TOP Panel
Mini-jack to mini-jack signal cable Socket
PC
Back side
